Measurement E151M3203

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALU
εL: 0.6765
Q2: 0.205 GeV2
W: 1295.0 GeV
Ebeam: 2.2596 GeV
ε: 0.9402

Slice: cos(θπ+) =

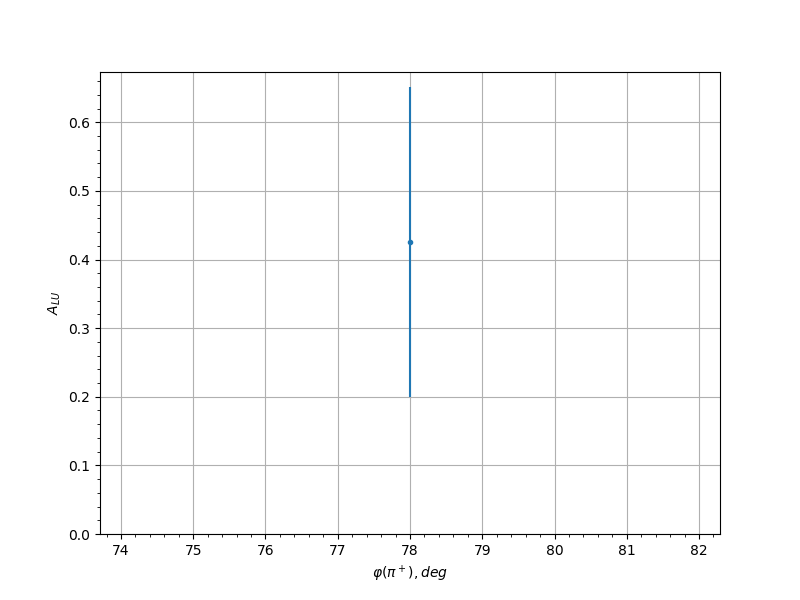

Measurement data
cos(θπ+) φ(π+), [deg] ALU uncertainty syst. uncert.
0.35 78.0 0.4252 0.2256 0.0312
0.65 282.0 0.2115 0.2398 0.0303
0.75 90.0 0.2116 0.2306 0.0303
0.75 102.0 0.3105 0.2254 0.0306
0.75 246.0 0.0741 0.2582 0.03
0.75 270.0 -0.1644 0.2031 0.0302
0.75 282.0 0.083 0.2034 0.03
0.75 294.0 0.1778 0.2229 0.0302
0.85 78.0 0.4688 0.2117 0.0314
0.85 90.0 0.0814 0.2285 0.03
0.85 102.0 -0.1456 0.2173 0.0301
0.85 114.0 0.0498 0.2173 0.03
0.85 126.0 -0.0862 0.238 0.03
0.85 234.0 0.0221 0.2301 0.03
0.85 246.0 0.01 0.22 0.03
0.85 258.0 -0.0488 0.1973 0.03
0.85 270.0 -0.123 0.2078 0.0301
0.85 282.0 0.0916 0.1922 0.0301
0.85 294.0 0.0129 0.2455 0.03
0.95 102.0 0.6464 0.1815 0.0327
0.95 126.0 0.0458 0.2528 0.03
0.15 66.0 -0.0361 0.2488 0.03
0.55 270.0 0.2424 0.2529 0.0304
0.65 282.0 -0.3808 0.2412 0.031
0.65 294.0 -0.4385 0.2318 0.0313
0.75 90.0 0.2221 0.2026 0.0303
0.75 102.0 -0.0683 0.2177 0.03
0.75 258.0 -0.0542 0.2548 0.03
0.75 270.0 -0.5533 0.2106 0.032
0.75 282.0 -0.0071 0.2318 0.03
0.75 294.0 0.0829 0.2428 0.03
0.85 90.0 -0.1369 0.2069 0.0301
0.85 102.0 -0.2468 0.1711 0.0304
0.85 114.0 -0.0442 0.2145 0.03
0.85 126.0 -0.1566 0.2528 0.0302
0.85 246.0 -0.6461 0.2094 0.0327
0.85 258.0 0.2651 0.2489 0.0305
0.85 270.0 -0.0237 0.2569 0.03
0.85 282.0 -0.1184 0.2317 0.0301
0.85 294.0 0.1706 0.2533 0.0302
0.95 90.0 0.3536 0.2226 0.0308
0.95 102.0 0.0106 0.2304 0.03
0.95 114.0 0.4947 0.2289 0.0316
0.95 126.0 0.1574 0.2578 0.0302
0.95 258.0 0.2343 0.0306 None
0.95 270.0 -0.3385 0.2213 0.0308
0.95 282.0 0.1526 0.2184 0.0302
0.95 294.0 -0.4192 0.2338 0.0311
