Measurement E151M3274

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALU
εL: 0.0759
Q2: 0.0415 GeV2
W: 1475.0 GeV
Ebeam: 2.2596 GeV
ε: 0.927

Slice: cos(θπ+) =

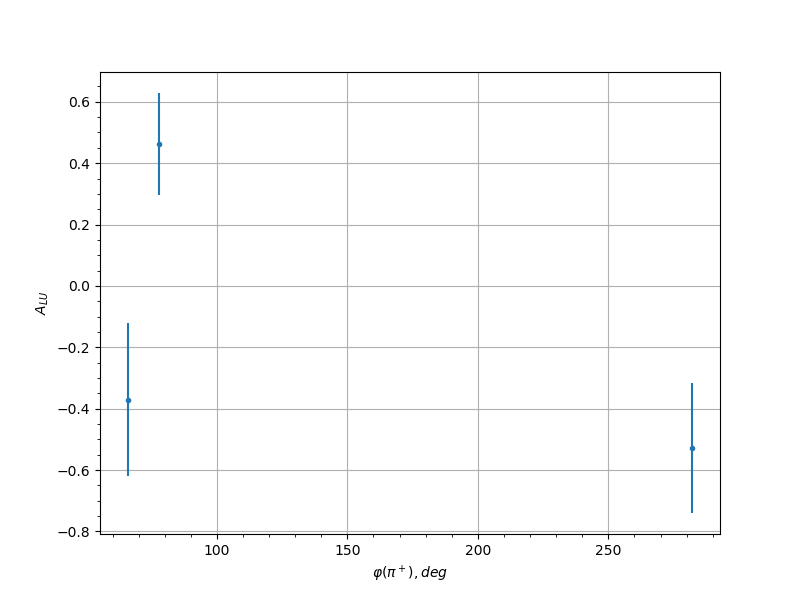

Measurement data
cos(θπ+) φ(π+), [deg] ALU uncertainty syst. uncert.
0.35 66.0 -0.3708 0.2493 0.0309
0.35 78.0 0.4631 0.1656 0.0314
0.45 78.0 -0.1341 0.2508 0.0301
0.45 90.0 0.0691 0.2463 0.03
0.45 282.0 0.1306 0.252 0.0301
0.55 78.0 0.2377 0.2285 0.0304
0.55 282.0 -0.3671 0.2368 0.0309
0.65 114.0 0.0634 0.2649 0.03
0.65 126.0 -0.1655 0.2533 0.0302
0.65 222.0 0.3956 0.264 0.031
0.65 234.0 -0.5603 0.2223 0.032
0.65 246.0 0.3931 0.213 0.031
0.75 114.0 0.2458 0.2562 0.0304
0.75 126.0 -0.4543 0.2361 0.0313
0.75 138.0 0.4545 0.2181 0.0313
0.75 222.0 0.0173 0.2663 0.03
0.75 234.0 0.1213 0.2453 0.0301
0.75 246.0 -0.4149 0.2569 0.0311
0.85 222.0 0.3589 0.2477 0.0308
0.85 234.0 0.2572 0.2333 0.0304
0.85 246.0 -0.003 0.2286 0.03
0.35 282.0 -0.5277 0.2122 0.0318
0.45 78.0 -0.0942 0.2043 0.0301
0.45 282.0 -0.0852 0.2321 0.03
0.45 294.0 -0.0389 0.2505 0.03
0.55 114.0 -0.5056 0.2181 0.0317
0.55 126.0 0.2031 0.2495 0.0303
0.55 270.0 -0.0302 0.2661 0.03
0.55 282.0 0.1562 0.2326 0.0302
0.65 150.0 -0.2111 0.2384 0.0303
0.65 222.0 0.0225 0.2544 0.03
0.65 234.0 -0.0993 0.2157 0.0301
0.75 114.0 -0.1541 0.2071 0.0302
0.75 126.0 0.4141 0.2092 0.0311
0.75 138.0 0.4101 0.2482 0.0311
0.75 222.0 -0.1639 0.2244 0.0302
0.75 234.0 -0.2192 0.2194 0.0303
0.85 222.0 -0.1502 0.244 0.0302
0.85 234.0 0.2933 0.2279 0.0306
0.85 246.0 0.2654 0.2375 0.0305
