Measurement E151M3534

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALU
εL: 0.2133
Q2: 0.2445 GeV2
W: 1595.0 GeV
Ebeam: 2.999 GeV
ε: 0.902

Slice: cos(θπ+) =

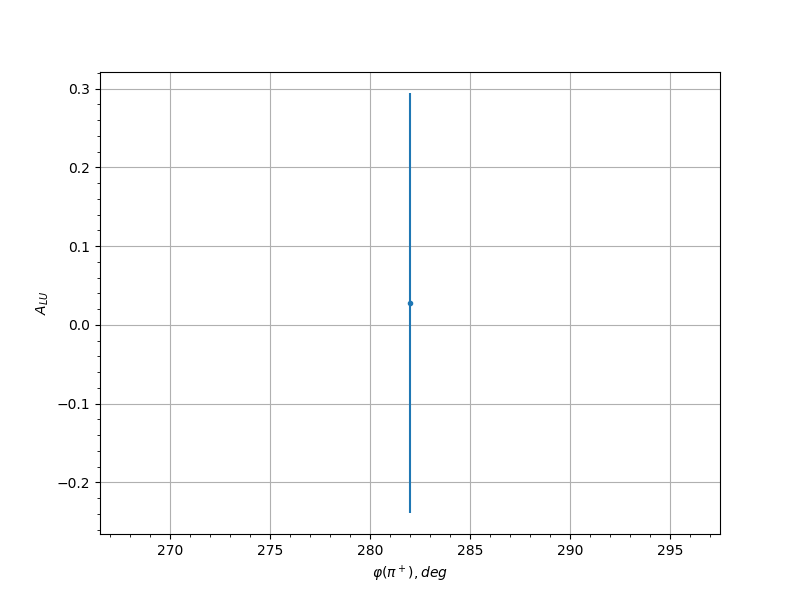

Measurement data
cos(θπ+) φ(π+), [deg] ALU uncertainty
0.25 282.0 0.0277 0.2666
0.35 102.0 0.351 0.2465
0.35 270.0 -0.036 0.2722
0.35 282.0 0.0018 0.2378
0.35 294.0 -0.1839 0.2387
0.45 102.0 -0.2802 0.2649
0.45 114.0 0.2859 0.2432
0.45 270.0 -0.3439 0.2349
0.45 282.0 0.2511 0.2183
0.55 90.0 0.177 0.223
0.55 102.0 0.0258 0.2098
0.55 114.0 0.1319 0.2047
0.55 126.0 0.1402 0.243
0.55 270.0 0.1256 0.2623
0.55 306.0 0.0837 0.2585
0.65 90.0 -0.234 0.1805
0.65 102.0 0.3761 0.1588
0.65 114.0 0.1207 0.1903
0.65 126.0 0.0645 0.2055
0.65 138.0 -0.1567 0.2528
0.65 198.0 0.1985 0.2418
0.65 234.0 -0.025 0.237
0.65 246.0 0.2335 0.2437
0.65 270.0 -0.0943 0.237
0.65 294.0 0.3894 0.1757
0.65 306.0 0.0189 0.1983
0.75 66.0 -0.0492 0.233
0.75 78.0 0.3329 0.2076
0.75 90.0 -0.0048 0.2613
0.75 102.0 0.2189 0.1659
0.75 114.0 0.1545 0.1547
0.75 126.0 0.314 0.2004
0.75 138.0 -0.0027 0.2063
0.75 186.0 -0.0408 0.2528
0.75 198.0 0.0042 0.2107
0.75 210.0 0.0902 0.1927
0.75 222.0 -0.1792 0.1861
0.75 234.0 0.0803 0.1743
0.75 246.0 -0.0167 0.1875
0.75 258.0 -0.2907 0.2216
0.75 294.0 -0.0913 0.2611
0.85 66.0 -0.1602 0.1719
0.85 78.0 0.0838 0.1544
0.85 90.0 -0.4137 0.1675
0.85 102.0 0.04 0.2259
0.85 114.0 0.0716 0.2147
0.85 126.0 -0.002 0.2063
0.85 138.0 -0.1567 0.2424
0.85 174.0 0.0244 0.2816
0.85 186.0 0.1084 0.1999
0.85 198.0 -0.0965 0.2155
0.85 210.0 -0.1521 0.1773
0.85 222.0 -0.1242 0.1676
0.85 234.0 -0.2531 0.1514
0.85 246.0 0.0379 0.1429
0.85 258.0 -0.1819 0.1671
0.85 270.0 0.0514 0.2176
0.85 282.0 0.1381 0.2285
0.95 66.0 0.4158 0.2084
0.95 78.0 0.0853 0.2319
0.95 90.0 -0.165 0.195
0.95 102.0 0.5287 0.2394
0.95 174.0 -0.2903 0.2572
0.95 186.0 -0.049 0.2685
0.95 198.0 -0.3681 0.2522
0.95 210.0 -0.0837 0.2008
0.95 222.0 -0.1017 0.193
0.95 234.0 -0.1368 0.1824
0.95 246.0 -0.2182 0.1611
0.95 258.0 -0.3479 0.146
0.95 270.0 0.0041 0.1717
0.95 282.0 0.1778 0.1575
0.95 294.0 -0.0224 0.1708
0.95 306.0 0.1168 0.2093
