Measurement E151M3606

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALU
εL: 0.0543
Q2: 0.101 GeV2
W: 1775.0 GeV
Ebeam: 2.999 GeV
ε: 0.8592

Slice: cos(θπ+) =

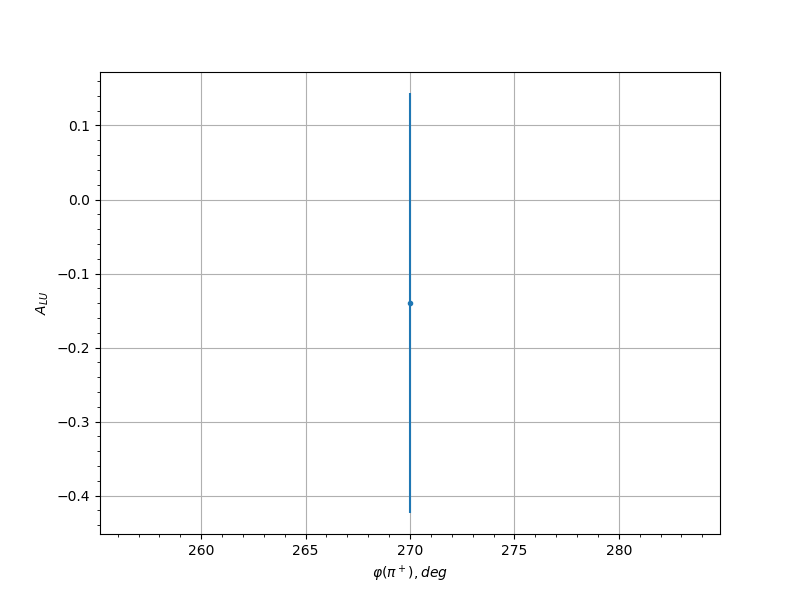

Measurement data
cos(θπ+) φ(π+), [deg] ALU uncertainty
0.35 270.0 -0.1398 0.2837
0.55 114.0 0.1692 0.241
0.55 126.0 0.0072 0.2444
0.55 138.0 -0.1682 0.262
0.65 114.0 -0.1689 0.2633
0.65 126.0 0.2179 0.2221
0.65 138.0 0.0115 0.235
0.65 186.0 -0.1238 0.2387
0.65 198.0 0.1578 0.2582
0.65 222.0 0.2923 0.2603
0.65 282.0 -0.0356 0.2287
0.65 294.0 -0.065 0.2727
0.75 90.0 -0.0798 0.2833
0.75 102.0 -0.0245 0.2093
0.75 114.0 -0.0836 0.2747
0.75 138.0 -0.084 0.2592
0.75 186.0 0.0633 0.2084
0.75 198.0 -0.1862 0.2063
0.75 210.0 -0.0327 0.1815
0.75 222.0 -0.1445 0.21
0.75 234.0 0.8262 0.1863
0.75 258.0 0.1658 0.2506
0.75 270.0 0.0439 0.2209
0.75 282.0 -0.3511 0.2126
0.75 294.0 0.1096 0.2634
0.85 90.0 0.0204 0.2225
0.85 102.0 -0.1273 0.1998
0.85 114.0 0.15 0.1886
0.85 126.0 0.1937 0.1901
0.85 138.0 0.429 0.2426
0.85 174.0 0.0167 0.2334
0.85 186.0 0.0111 0.174
0.85 198.0 0.2858 0.1762
0.85 210.0 0.1057 0.1909
0.85 222.0 0.0181 0.1933
0.85 234.0 0.0554 0.2165
0.85 246.0 0.2312 0.2512
0.85 270.0 0.1076 0.2631
0.85 282.0 -0.1562 0.2125
0.95 102.0 -0.281 0.2459
0.95 186.0 -0.0933 0.2522
0.95 198.0 0.1701 0.2292
0.95 210.0 -0.1475 0.2166
0.95 222.0 -0.4813 0.2225
0.95 234.0 -0.1137 0.2497
