Measurement E151M565

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: AUL
εL: 0.1379
Q2: 0.0593 GeV2
W: 1415.0 GeV
Ebeam: 1.9889 GeV
ε: 0.9219

Slice: cos(θπ+) =

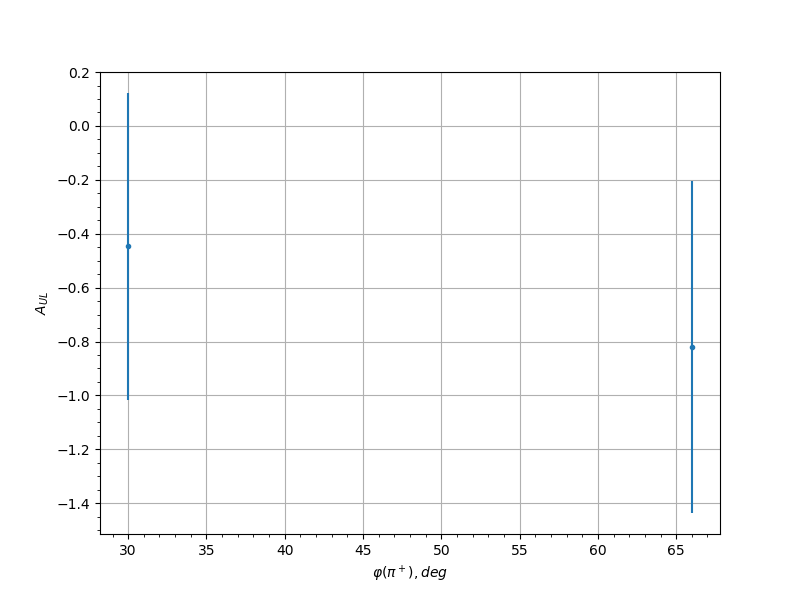

Measurement data
cos(θπ+) φ(π+), [deg] AUL uncertainty syst. uncert.
0.15 30.0 -0.4465 0.5688 0.0406
0.15 66.0 -0.8199 0.6166 0.0584
0.25 42.0 -0.0111 0.7635 0.03
0.25 54.0 0.8855 0.7298 0.0619
0.25 66.0 0.7921 0.5146 0.057
0.25 78.0 0.0185 0.5099 0.03
0.25 282.0 0.0193 0.5734 0.03
0.25 294.0 0.1238 0.5382 0.0309
0.25 306.0 -0.0632 0.5752 0.0302
0.35 18.0 0.5288 0.7051 0.0441
0.35 30.0 -0.0633 0.6245 0.0302
0.35 66.0 0.4335 0.379 0.04
0.35 78.0 -0.2613 0.3946 0.034
0.35 90.0 -0.1492 0.5646 0.0314
0.35 270.0 -0.1315 0.5539 0.0311
0.35 282.0 -0.0621 0.3507 0.0302
0.35 294.0 -0.2045 0.365 0.0325
0.35 306.0 -0.8675 0.4431 0.061
0.35 318.0 -0.1476 0.6076 0.0313
0.35 342.0 -0.5464 0.6526 0.0449
0.45 66.0 0.1485 0.4088 0.0313
0.45 78.0 0.039 0.3518 0.0301
0.45 90.0 -0.077 0.4554 0.0304
0.45 102.0 0.1588 0.5983 0.0315
0.45 258.0 -0.2504 0.6882 0.0337
0.45 270.0 0.344 0.4491 0.0366
0.45 282.0 0.1032 0.3445 0.0307
0.45 294.0 -0.0686 0.3749 0.0303
0.45 306.0 0.5282 0.5933 0.0441
0.45 318.0 -0.8533 0.5664 0.0602
0.55 66.0 -0.552 0.4854 0.0452
0.55 78.0 0.5268 0.3932 0.044
0.55 90.0 -0.1133 0.4006 0.0308
0.55 102.0 -0.4951 0.4649 0.0426
0.55 114.0 -0.0764 0.5136 0.0304
0.55 126.0 -0.4085 0.5169 0.039
0.55 138.0 -0.081 0.6428 0.0304
0.55 222.0 -0.1334 0.6592 0.0311
0.55 234.0 0.7086 0.6281 0.0527
0.55 246.0 1.6556 0.4876 0.1056
0.55 258.0 -0.1255 0.4439 0.031
0.55 270.0 0.4525 0.4278 0.0408
0.55 282.0 0.225 0.3523 0.033
0.55 294.0 -0.8653 0.3543 0.0608
0.55 306.0 0.9667 0.7483 0.0663
0.65 66.0 -0.3941 0.4809 0.0385
0.65 78.0 -0.7481 0.4156 0.0547
0.65 90.0 -0.0472 0.4486 0.0301
0.65 102.0 -0.0404 0.4191 0.0301
0.65 114.0 0.6475 0.4568 0.0497
0.65 126.0 -0.1764 0.413 0.0319
0.65 138.0 -0.8197 0.374 0.0584
0.65 150.0 -1.0004 0.5769 0.0681
0.65 210.0 0.672 0.6414 0.0509
0.65 222.0 0.0953 0.439 0.0306
0.65 234.0 0.312 0.3955 0.0356
0.65 246.0 0.4175 0.4011 0.0394
0.65 258.0 0.2286 0.384 0.0331
0.65 270.0 0.3468 0.3983 0.0367
0.65 282.0 1.2847 0.5177 0.0841
0.65 294.0 1.0073 0.5629 0.0685
0.65 306.0 -0.4838 0.5308 0.0421
0.75 66.0 0.4779 0.6255 0.0419
0.75 78.0 0.0494 0.5061 0.0302
0.75 90.0 1.4112 0.6364 0.0914
0.75 102.0 0.1777 0.4254 0.0319
0.75 114.0 -0.2682 0.3236 0.0342
0.75 126.0 0.2747 0.3837 0.0344
0.75 138.0 0.1115 0.4177 0.0308
0.75 150.0 0.1594 0.4473 0.0315
0.75 174.0 0.0985 0.7562 0.0306
0.75 198.0 -0.0942 0.6988 0.0305
0.75 210.0 0.6168 0.5095 0.0482
0.75 222.0 0.3801 0.3729 0.038
0.75 234.0 -0.424 0.3341 0.0397
0.75 246.0 0.8568 0.3921 0.0604
0.75 258.0 0.7768 0.4396 0.0562
0.75 270.0 -0.2229 0.522 0.033
0.75 282.0 -0.1342 0.5929 0.0311
0.75 294.0 0.0007 0.6242 0.03
0.85 90.0 -0.2598 0.6552 0.0339
0.85 102.0 0.0275 0.59 0.03
0.85 114.0 0.2453 0.4661 0.0335
0.85 126.0 -0.3964 0.3688 0.0386
0.85 138.0 -1.1116 0.3664 0.0743
0.85 150.0 0.422 0.6245 0.0396
0.85 162.0 -0.2261 0.6359 0.033
0.85 210.0 1.0512 0.4961 0.0709
0.85 222.0 0.8755 0.4121 0.0614
0.85 234.0 0.832 0.3875 0.0591
0.85 246.0 0.1663 0.3208 0.0317
0.85 258.0 -0.2531 0.3277 0.0338
0.85 270.0 0.9068 0.511 0.0631
0.95 114.0 -0.2739 0.5768 0.0344
0.95 126.0 0.399 0.6575 0.0387
0.95 210.0 -0.1889 0.4616 0.0321
0.95 222.0 -0.1181 0.4697 0.0309
0.95 234.0 0.7326 0.4974 0.0539
0.95 246.0 -0.306 0.3854 0.0354
0.95 258.0 0.1385 0.5866 0.0312
