Measurement E151M601

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: AUL
εL: 0.2118
Q2: 0.1435 GeV2
W: 1475.0 GeV
Ebeam: 1.9889 GeV
ε: 0.8676

Slice: cos(θπ+) =

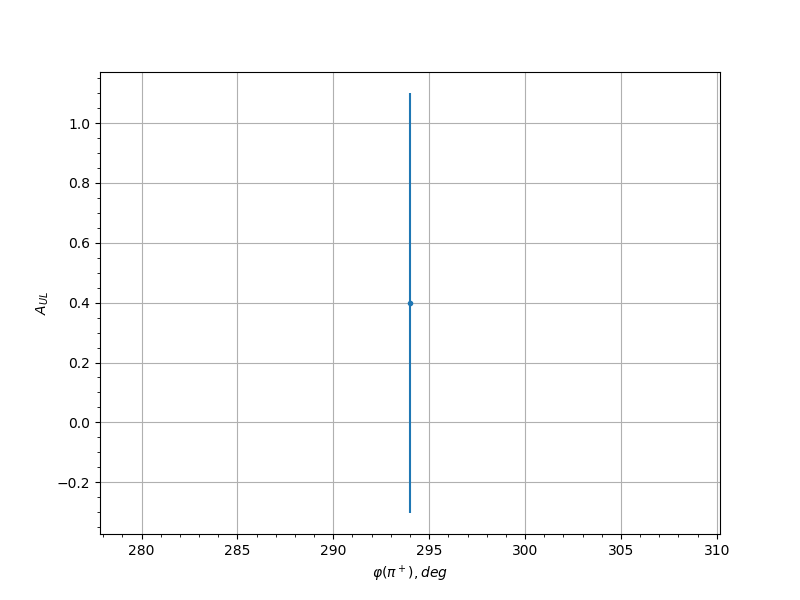

Measurement data
cos(θπ+) φ(π+), [deg] AUL uncertainty syst. uncert.
0.15 294.0 0.3989 0.7017 0.0387
0.25 66.0 0.1906 0.6213 0.0322
0.25 78.0 -0.6499 0.6315 0.0498
0.25 282.0 0.4277 0.6462 0.0398
0.25 294.0 0.4163 0.6033 0.0393
0.25 306.0 -0.1792 0.588 0.0319
0.35 66.0 -0.6299 0.529 0.0488
0.35 78.0 -0.6038 0.5173 0.0476
0.35 282.0 0.5478 0.6335 0.045
0.35 294.0 -0.3632 0.472 0.0373
0.45 66.0 -0.3167 0.6901 0.0357
0.45 78.0 -1.2364 0.402 0.0814
0.45 270.0 1.4735 0.736 0.095
0.45 282.0 -0.1822 0.5287 0.032
0.45 294.0 -0.0558 0.4278 0.0302
0.55 66.0 -0.9017 0.6281 0.0628
0.55 102.0 1.1155 0.7981 0.0745
0.55 114.0 -0.029 0.5835 0.0301
0.55 258.0 0.9086 0.7797 0.0632
0.55 282.0 0.4787 0.6387 0.0419
0.55 306.0 -0.2024 0.5805 0.0325
0.65 102.0 0.7215 0.6112 0.0534
0.65 114.0 -0.1221 0.5145 0.0309
0.65 126.0 -0.438 0.5584 0.0402
0.65 138.0 -0.3144 0.7209 0.0356
0.65 234.0 0.118 0.6719 0.0309
0.65 246.0 -0.2382 0.4969 0.0333
0.65 258.0 1.1308 0.7328 0.0754
0.65 270.0 -0.2808 0.6842 0.0346
0.65 294.0 1.121 0.644 0.0748
0.65 306.0 0.2032 0.6182 0.0325
0.75 102.0 -0.6183 0.4701 0.0483
0.75 114.0 -1.0835 0.3446 0.0727
0.75 126.0 -0.2033 0.4782 0.0325
0.75 138.0 -0.3665 0.5997 0.0374
0.75 210.0 0.6519 0.593 0.0499
0.75 222.0 0.8089 0.6552 0.0579
0.75 234.0 0.3734 0.5017 0.0377
0.75 246.0 -0.1786 0.4197 0.0319
0.75 258.0 1.3792 0.5426 0.0895
0.75 270.0 -0.0391 0.6846 0.0301
0.75 294.0 -0.3254 0.5925 0.036
0.85 78.0 0.9072 0.6472 0.0631
0.85 90.0 -1.0025 0.4699 0.0683
0.85 102.0 -0.7261 0.5017 0.0536
0.85 114.0 -0.9214 0.4846 0.0638
0.85 126.0 -0.4186 0.5727 0.0394
0.85 138.0 -1.5964 0.3202 0.1021
0.85 150.0 -0.5183 0.6445 0.0436
0.85 198.0 0.1825 0.7235 0.032
0.85 210.0 0.6392 0.6712 0.0493
0.85 222.0 0.1599 0.6637 0.0316
0.85 234.0 0.4851 0.4641 0.0422
0.85 246.0 0.0821 0.486 0.0304
0.85 258.0 -0.5005 0.4395 0.0429
0.85 270.0 -0.4431 0.4957 0.0404
0.95 90.0 -0.1941 0.5957 0.0323
0.95 210.0 1.0568 0.6435 0.0713
0.95 222.0 0.1587 0.5024 0.0315
0.95 234.0 0.8242 0.6156 0.0587
0.95 246.0 0.5324 0.4272 0.0443
0.95 258.0 0.5483 0.4876 0.045
0.95 270.0 -0.1826 0.4099 0.032
