Measurement E151M741

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: AUL
εL: 0.387
Q2: 0.0707 GeV2
W: 1265.0 GeV
Ebeam: 2.2596 GeV
ε: 0.9709

Slice: cos(θπ+) =

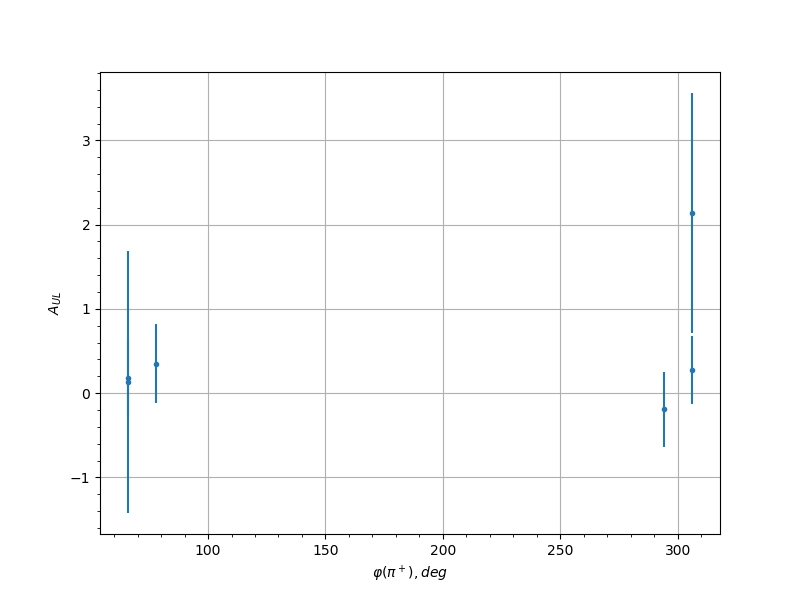

Measurement data
cos(θπ+) φ(π+), [deg] AUL uncertainty syst. uncert.
0.25 66.0 0.1321 1.5549 0.0324
0.25 306.0 2.1386 1.4238 0.1996
0.35 66.0 1.214 1.544 0.116
0.35 78.0 0.1287 1.6363 0.0323
0.45 66.0 1.4499 1.453 0.1371
0.45 78.0 -1.845 1.2076 0.1729
0.45 90.0 1.5721 1.8461 0.1482
0.55 78.0 -0.0257 1.2447 0.0301
0.55 90.0 1.7095 1.9672 0.1606
0.55 270.0 -0.193 1.4488 0.0349
0.55 282.0 -0.1691 1.622 0.0338
0.65 78.0 -0.6288 1.4864 0.0653
0.65 90.0 9.2808 9.2808 0.8571
0.65 258.0 -0.7008 1.0984 0.0713
0.65 270.0 1.4448 1.019 0.1367
0.65 282.0 -0.2578 1.1883 0.0383
0.75 102.0 -0.7473 1.7985 0.0752
0.75 114.0 0.3014 1.7981 0.0409
0.75 126.0 0.3884 1.9798 0.0467
0.75 234.0 -1.2141 1.472 0.116
0.75 246.0 1.3158 1.294 0.1251
0.75 258.0 0.1801 1.071 0.0343
0.75 270.0 0.804 1.1263 0.08
0.75 282.0 1.4738 1.5699 0.1393
0.85 102.0 0.3476 1.9603 0.0439
0.85 114.0 0.9403 1.5881 0.0918
0.85 126.0 1.3357 1.4322 0.1269
0.85 138.0 0.5311 1.6407 0.0575
0.85 150.0 -2.1978 1.6168 0.2051
0.85 162.0 -5.2888 1.4749 0.489
0.85 222.0 1.6875 2.0275 0.1586
0.85 234.0 -0.6734 1.4981 0.069
0.85 246.0 2.4864 1.4566 0.2314
0.85 258.0 -0.051 1.3701 0.0304
0.85 270.0 0.6674 1.5013 0.0685
0.95 114.0 -5.4577 4.6705 0.5046
0.95 126.0 5.2993 0.9325 6.575
0.95 138.0 -0.5795 6.0969 0.0613
0.95 150.0 -5.0009 4.9966 0.4625
0.95 162.0 4.3061 6.8385 0.3986
0.95 174.0 11.544 5.6421 1.0659
0.95 234.0 1.6186 5.6652 0.1524
0.15 306.0 -0.5256 0.3834 0.0457
0.25 66.0 0.1776 0.4529 0.0322
0.25 78.0 0.3505 0.4697 0.0378
0.25 294.0 -0.1928 0.4428 0.0326
0.25 306.0 0.2728 0.4044 0.0349
0.35 66.0 0.2381 0.3337 0.0338
0.35 78.0 0.2547 0.3364 0.0343
0.35 294.0 -0.4914 0.3586 0.044
0.45 66.0 -0.1865 0.3424 0.0324
0.45 78.0 -0.0055 0.2786 0.03
0.45 90.0 -0.1284 0.4791 0.0312
0.45 294.0 0.5976 0.4325 0.0494
0.55 78.0 -0.0233 0.273 0.03
0.55 90.0 -0.7705 0.3226 0.0588
0.55 270.0 -0.4629 0.363 0.0427
0.55 282.0 -0.2366 0.4336 0.0338
0.65 78.0 0.2195 0.4608 0.0333
0.65 90.0 -0.0351 0.4511 0.0301
0.65 102.0 0.5756 0.5216 0.0482
0.65 246.0 0.4847 0.5199 0.0437
0.65 258.0 -0.2824 0.3076 0.0353
0.65 270.0 0.5688 0.3114 0.0479
0.65 282.0 -0.6744 0.3106 0.0535
0.75 90.0 0.6668 0.5102 0.0531
0.75 102.0 -0.1976 0.4759 0.0327
0.75 114.0 -0.2124 0.3712 0.0331
0.75 126.0 0.0192 0.3751 0.03
0.75 138.0 0.4735 0.5116 0.0432
0.75 234.0 -1.0508 0.4391 0.0752
0.75 246.0 0.2182 0.3632 0.0332
0.75 258.0 -0.7418 0.2519 0.0572
0.75 270.0 0.062 0.3 0.0303
0.75 282.0 -0.4205 0.3385 0.0408
0.85 102.0 0.7968 0.3914 0.0603
0.85 114.0 -0.0438 0.3443 0.0301
0.85 126.0 0.249 0.3639 0.0342
0.85 138.0 0.5542 0.3823 0.0471
0.85 150.0 -0.2996 0.412 0.0359
0.85 162.0 -0.5507 0.4886 0.047
0.85 234.0 -0.3677 0.4305 0.0385
0.85 246.0 -0.2218 0.3646 0.0333
0.85 258.0 -0.1546 0.3282 0.0317
0.85 270.0 -0.5418 0.3361 0.0465
0.95 114.0 1.2013 0.7711 0.0843
0.95 126.0 0.3086 0.7048 0.0362
0.95 138.0 0.9697 0.7975 0.0704
0.95 150.0 1.4776 0.9694 0.1015
0.95 162.0 -0.587 0.7678 0.0488
0.95 174.0 0.0109 0.9851 0.03
0.95 186.0 0.784 1.0527 0.0596
0.95 210.0 -2.072 0.7015 0.1392
0.95 234.0 -0.684 0.8648 0.054
