Measurement E151M752

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: AUL
εL: 0.2758
Q2: 0.0593 GeV2
W: 1295.0 GeV
Ebeam: 2.2596 GeV
ε: 0.9681

Slice: cos(θπ+) =

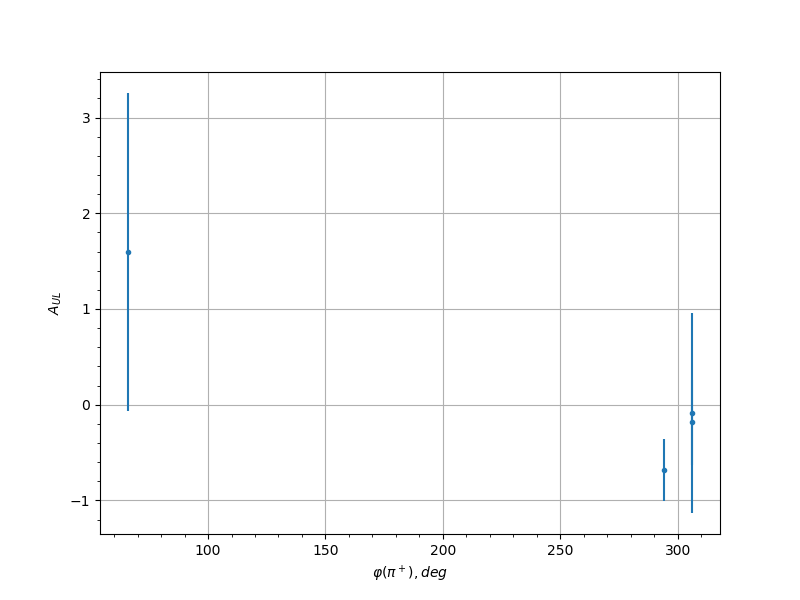

Measurement data
cos(θπ+) φ(π+), [deg] AUL uncertainty syst. uncert.
0.25 66.0 1.5978 1.6593 0.1505
0.25 306.0 -0.0867 1.0451 0.031
0.35 66.0 0.4899 1.2338 0.0543
0.35 78.0 -0.1087 1.2937 0.0316
0.35 294.0 -0.3021 1.2087 0.041
0.35 306.0 -0.77 0.9751 0.0771
0.45 66.0 0.3167 1.2163 0.0419
0.45 78.0 0.1903 0.9824 0.0348
0.45 90.0 2.4973 1.4729 0.2324
0.45 294.0 -1.4403 1.1028 0.1363
0.55 66.0 1.0651 1.57 0.1028
0.55 78.0 1.5687 1.2582 0.1479
0.55 90.0 -0.1973 1.7014 0.0351
0.55 270.0 -1.9038 1.0558 0.1783
0.65 78.0 2.0605 1.5095 0.1925
0.65 90.0 1.4524 1.7624 0.1374
0.65 246.0 0.1597 1.3265 0.0334
0.65 258.0 0.5642 1.1994 0.0601
0.65 270.0 -1.3162 1.2641 0.1251
0.65 282.0 -1.5787 1.1376 0.1488
0.75 102.0 2.5267 2.1876 0.2351
0.75 114.0 -0.3465 1.5341 0.0438
0.75 126.0 -0.9695 1.1707 0.0944
0.75 138.0 1.3811 1.865 0.131
0.75 222.0 -5.3988 5.3988 0.4992
0.75 234.0 1.1127 1.2482 0.107
0.75 246.0 0.8811 0.9877 0.0867
0.75 258.0 0.8732 1.0584 0.086
0.75 270.0 0.6714 1.1695 0.0688
0.75 282.0 -1.4126 1.3935 0.1338
0.85 102.0 4.0615 2.0724 0.376
0.85 114.0 -0.3174 1.6677 0.0419
0.85 126.0 -0.8355 1.4039 0.0827
0.85 138.0 1.8193 1.5527 0.1706
0.85 150.0 2.6302 1.8181 0.2446
0.85 162.0 2.4301 2.1254 0.2263
0.85 222.0 -0.3387 1.3965 0.0433
0.85 234.0 -0.0611 1.3514 0.0305
0.85 246.0 -1.9282 1.0138 0.1805
0.85 258.0 -1.35 0.9631 0.1282
0.85 270.0 0.5893 1.2157 0.0621
0.95 246.0 4.8232 4.8286 0.4462
0.15 306.0 1.0144 0.4793 0.073
0.25 294.0 -0.6841 0.321 0.054
0.25 306.0 -0.184 0.4424 0.0323
0.35 66.0 0.3887 0.3602 0.0394
0.35 78.0 0.0395 0.3738 0.0301
0.35 294.0 0.3008 0.4323 0.0359
0.35 306.0 0.4791 0.3996 0.0435
0.45 66.0 1.2527 0.3764 0.0875
0.45 78.0 0.1817 0.3002 0.0323
0.45 90.0 -0.1395 0.46 0.0314
0.45 282.0 -0.4983 0.4749 0.0444
0.45 294.0 0.19 0.4273 0.0325
0.55 66.0 0.6816 0.428 0.0539
0.55 78.0 0.0045 0.3394 0.03
0.55 90.0 0.0397 0.4067 0.0301
0.55 270.0 -0.5357 0.4051 0.0462
0.55 282.0 -1.0545 0.3758 0.0754
0.55 294.0 0.3388 0.4889 0.0373
0.65 78.0 -0.0246 0.4583 0.03
0.65 114.0 0.0575 0.5707 0.0302
0.65 246.0 0.2408 0.4355 0.0339
0.65 258.0 -0.4149 0.3632 0.0405
0.65 270.0 -0.0589 0.4297 0.0302
0.65 282.0 -0.0784 0.4952 0.0304
0.75 102.0 0.3916 0.5105 0.0395
0.75 114.0 -0.3738 0.4012 0.0388
0.75 126.0 -0.2873 0.3751 0.0354
0.75 138.0 -0.1765 0.6142 0.0322
0.75 222.0 0.1407 0.6764 0.0314
0.75 234.0 -0.3183 0.4413 0.0366
0.75 246.0 -0.1326 0.381 0.0312
0.75 258.0 0.3511 0.3172 0.0378
0.75 270.0 -0.5994 0.3457 0.0495
0.85 102.0 0.7202 0.5235 0.056
0.85 114.0 0.6563 0.4201 0.0525
0.85 126.0 0.259 0.3812 0.0345
0.85 138.0 0.9234 0.4462 0.0676
0.85 150.0 0.9544 0.5304 0.0694
0.85 162.0 0.1127 0.6376 0.0309
0.85 174.0 -0.6779 0.6237 0.0537
0.85 222.0 1.1608 0.6191 0.0819
0.85 234.0 -0.0361 0.4326 0.0301
0.85 246.0 0.2277 0.4055 0.0335
0.85 258.0 0.0314 0.3723 0.0301
0.85 270.0 -0.38 0.3683 0.039
0.95 126.0 1.7146 1.0003 0.1164
0.95 138.0 0.1574 0.9376 0.0317
0.95 150.0 1.7229 0.8886 0.117
0.95 162.0 -0.0738 1.0364 0.0304
0.95 222.0 1.4563 1.0657 0.1002
0.95 234.0 0.9688 1.0155 0.0703
0.95 246.0 1.2445 0.9601 0.087
0.95 258.0 1.2362 0.8772 0.0865
