Measurement E151M981

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: AUL
εL: 0.5965
Q2: 0.205 GeV2
W: 1325.0 GeV
Ebeam: 2.999 GeV
ε: 0.9642

Slice: cos(θπ+) =

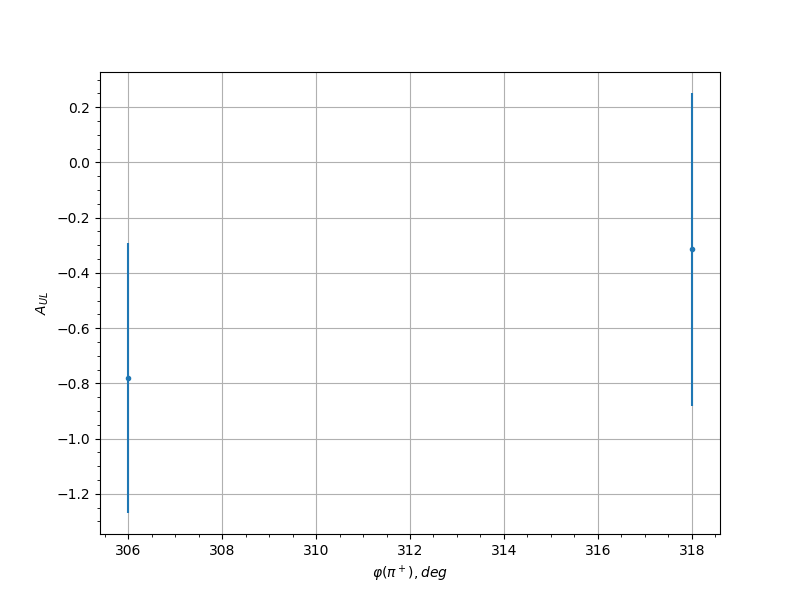

Measurement data
cos(θπ+) φ(π+), [deg] AUL uncertainty syst. uncert.
-0.05 306.0 -0.7807 0.4889 0.0645
-0.05 318.0 -0.3152 0.5667 0.0378
0.05 54.0 -0.4112 0.6836 0.0425
0.05 66.0 -0.307 0.5905 0.0375
0.05 294.0 0.5215 0.7842 0.0485
0.05 306.0 0.0096 0.5371 0.03
0.15 54.0 0.0307 0.5959 0.0301
0.15 66.0 0.523 0.5136 0.0486
0.15 294.0 -0.5465 0.3978 0.05
0.15 306.0 0.7133 0.5196 0.0602
0.25 54.0 0.9205 0.7208 0.0737
0.25 66.0 0.1724 0.4596 0.0325
0.25 78.0 -0.3628 0.5701 0.04
0.25 294.0 -0.356 0.4764 0.0397
0.25 306.0 0.0943 0.5403 0.0308
0.35 54.0 0.4832 0.6493 0.0463
0.35 66.0 0.2833 0.4379 0.0365
0.35 78.0 0.113 0.5834 0.0311
0.35 282.0 0.6641 0.7181 0.0571
0.35 294.0 0.6932 0.5692 0.0589
0.35 306.0 -0.333 0.5608 0.0386
0.45 54.0 0.3881 0.616 0.0413
0.45 66.0 0.5935 0.5318 0.0527
0.45 78.0 0.1702 0.686 0.0325
0.45 282.0 -0.1758 0.5987 0.0326
0.45 294.0 -0.7422 0.4072 0.062
0.55 66.0 -0.5187 0.5758 0.0483
0.55 78.0 0.8891 0.7935 0.0716
0.55 90.0 -0.9301 0.4568 0.0743
0.55 102.0 -0.1121 0.7113 0.0311
0.55 270.0 -0.3565 0.4597 0.0397
0.55 282.0 -0.6998 0.4182 0.0593
0.55 294.0 0.637 0.6054 0.0554
0.65 66.0 -0.0739 0.6303 0.0305
0.65 78.0 -0.4408 0.3407 0.044
0.65 90.0 0.373 0.3865 0.0405
0.65 102.0 0.0756 0.3848 0.0305
0.65 114.0 0.175 0.7062 0.0326
0.65 258.0 0.7424 0.4819 0.062
0.65 270.0 -0.3696 0.3379 0.0404
0.65 282.0 -0.434 0.3646 0.0437
0.65 294.0 -0.4017 0.4657 0.042
0.75 66.0 1.5852 0.5532 0.1197
0.75 78.0 0.1586 0.3369 0.0322
0.75 90.0 0.1638 0.2983 0.0323
0.75 102.0 -0.2236 0.3264 0.0342
0.75 114.0 0.071 0.4126 0.0304
0.75 126.0 -0.1998 0.542 0.0334
0.75 234.0 -1.1079 0.4248 0.0864
0.75 246.0 0.1077 0.4147 0.031
0.75 258.0 0.3923 0.3747 0.0415
0.75 270.0 0.0338 0.2951 0.0301
0.75 282.0 0.3131 0.3435 0.0377
0.75 294.0 -0.086 0.3449 0.0307
0.75 306.0 -0.5992 0.4336 0.0531
0.85 54.0 -0.0473 0.5492 0.0302
0.85 66.0 0.5099 0.565 0.0478
0.85 78.0 -0.09 0.3095 0.0307
0.85 90.0 -0.1763 0.2791 0.0327
0.85 102.0 0.66 0.3477 0.0568
0.85 114.0 -0.0738 0.3207 0.0305
0.85 126.0 0.3444 0.4061 0.0392
0.85 138.0 -0.6124 0.5124 0.0539
0.85 150.0 0.1561 0.7236 0.0321
0.85 198.0 0.2976 0.7959 0.0371
0.85 210.0 0.2745 0.5929 0.0361
0.85 222.0 -0.3228 0.4575 0.0382
0.85 234.0 0.0598 0.3738 0.0303
0.85 246.0 -0.392 0.324 0.0415
0.85 258.0 -0.2638 0.2833 0.0357
0.85 270.0 -0.8034 0.2306 0.0659
0.85 282.0 -0.5535 0.2499 0.0504
0.85 294.0 0.0069 0.3109 0.03
0.85 306.0 0.3414 0.3903 0.039
0.95 54.0 -0.8206 0.5328 0.0671
0.95 66.0 0.0111 0.633 0.03
0.95 78.0 0.2727 0.36 0.036
0.95 90.0 -0.3085 0.3041 0.0375
0.95 102.0 0.5478 0.4127 0.05
0.95 114.0 0.1163 0.3771 0.0312
0.95 126.0 0.7084 0.421 0.0598
0.95 138.0 -0.1513 0.4381 0.032
0.95 150.0 -0.5794 0.4227 0.0519
0.95 162.0 -0.3235 0.4801 0.0382
0.95 174.0 1.3623 0.7678 0.104
0.95 186.0 1.3714 0.6906 0.1046
0.95 198.0 0.6614 0.57 0.0569
0.95 210.0 -0.5502 0.489 0.0502
0.95 222.0 -0.5378 0.3772 0.0494
0.95 234.0 -0.2431 0.364 0.0349
0.95 246.0 0.8239 0.4514 0.0673
0.95 258.0 0.2285 0.345 0.0343
0.95 270.0 0.1622 0.3378 0.0323
0.95 282.0 0.2585 0.3263 0.0355
0.95 294.0 -0.832 0.242 0.0678
0.95 306.0 0.0009 0.3439 0.03
0.95 318.0 0.9046 0.4732 0.0726
