Measurement E151M991

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: AUL
εL: 0.4047
Q2: 0.1435 GeV2
W: 1355.0 GeV
Ebeam: 2.999 GeV
ε: 0.9673

Slice: cos(θπ+) =

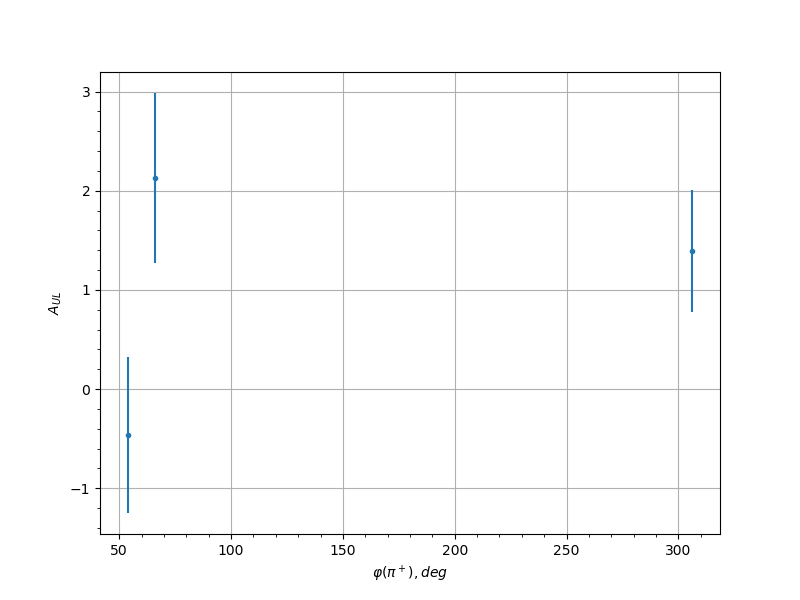

Measurement data
cos(θπ+) φ(π+), [deg] AUL uncertainty syst. uncert.
0.05 54.0 -0.4637 0.7859 0.0453
0.05 66.0 2.1264 0.859 0.1583
0.05 306.0 1.3889 0.6139 0.1059
0.15 54.0 -0.3745 0.5123 0.0406
0.15 66.0 0.2729 0.5672 0.036
0.15 294.0 -0.5017 0.4671 0.0474
0.15 306.0 -0.5923 0.4512 0.0527
0.15 318.0 -0.8602 0.5983 0.0697
0.25 54.0 0.8911 0.6612 0.0717
0.25 66.0 0.4318 0.5052 0.0435
0.25 78.0 -0.6534 0.5077 0.0564
0.25 282.0 -1.6183 0.4291 0.122
0.25 294.0 -0.4319 0.3963 0.0435
0.25 306.0 -0.028 0.4543 0.0301
0.35 54.0 0.6009 0.6481 0.0532
0.35 66.0 0.148 0.3986 0.0319
0.35 78.0 -0.2261 0.4857 0.0343
0.35 282.0 -1.0774 0.4316 0.0843
0.35 294.0 0.2833 0.4375 0.0365
0.35 306.0 -0.1111 0.4661 0.0311
0.45 54.0 0.1765 0.6689 0.0327
0.45 66.0 0.7682 0.4749 0.0637
0.45 78.0 0.318 0.5459 0.0379
0.45 282.0 0.1882 0.5832 0.033
0.45 294.0 -0.6108 0.3811 0.0538
0.45 306.0 -0.2999 0.621 0.0372
0.55 54.0 -0.0388 0.5721 0.0301
0.55 66.0 1.0097 0.6038 0.0797
0.55 78.0 0.855 0.7653 0.0693
0.55 90.0 0.2555 0.4868 0.0353
0.55 102.0 0.0248 0.6967 0.0301
0.55 258.0 0.0037 0.6574 0.03
0.55 270.0 0.251 0.4996 0.0352
0.55 282.0 -0.1736 0.451 0.0326
0.55 294.0 0.0465 0.5962 0.0302
0.65 66.0 -0.8763 0.5466 0.0707
0.65 78.0 0.8164 0.5405 0.0668
0.65 90.0 -0.9278 0.3749 0.0742
0.65 102.0 0.8547 0.4408 0.0693
0.65 114.0 1.243 0.5779 0.0957
0.65 246.0 0.1911 0.5041 0.0331
0.65 258.0 -0.6227 0.3792 0.0545
0.65 270.0 -0.6815 0.3389 0.0581
0.65 282.0 -0.2424 0.4569 0.0348
0.65 294.0 0.137 0.7056 0.0316
0.75 66.0 0.9565 0.7995 0.0761
0.75 78.0 -0.3522 0.3443 0.0395
0.75 90.0 0.0436 0.3292 0.0302
0.75 102.0 -0.3879 0.2973 0.0413
0.75 114.0 0.4421 0.3877 0.0441
0.75 126.0 0.0995 0.4294 0.0309
0.75 138.0 -0.6264 0.6254 0.0547
0.75 222.0 -0.5847 0.555 0.0522
0.75 234.0 -0.3607 0.3887 0.0399
0.75 246.0 -0.5491 0.3244 0.0501
0.75 258.0 -0.5214 0.3044 0.0485
0.75 270.0 -0.3606 0.2937 0.0399
0.75 282.0 -0.7242 0.3272 0.0608
0.75 294.0 -0.6676 0.4062 0.0573
0.85 66.0 -0.0515 0.4966 0.0302
0.85 78.0 0.4339 0.4866 0.0437
0.85 90.0 -0.1723 0.3062 0.0325
0.85 102.0 0.4931 0.3103 0.0469
0.85 114.0 -0.286 0.3134 0.0366
0.85 126.0 -0.1908 0.3298 0.0331
0.85 138.0 -0.125 0.3957 0.0314
0.85 150.0 -0.863 0.4955 0.0698
0.85 162.0 -0.4856 0.7087 0.0465
0.85 186.0 0.6806 0.8335 0.0581
0.85 198.0 0.5678 0.7071 0.0512
0.85 210.0 0.8799 0.5627 0.071
0.85 222.0 -0.6083 0.3474 0.0536
0.85 234.0 -0.1774 0.3134 0.0327
0.85 246.0 -0.1258 0.2916 0.0314
0.85 258.0 -0.2679 0.2869 0.0358
0.85 270.0 -0.297 0.2844 0.037
0.85 282.0 0.3962 0.3017 0.0417
0.85 294.0 -0.7474 0.2574 0.0623
0.95 66.0 -0.9578 0.3894 0.0762
0.95 90.0 0.1686 0.4441 0.0324
0.95 102.0 0.7798 0.457 0.0644
0.95 114.0 -0.1602 0.3557 0.0322
0.95 126.0 0.7314 0.4092 0.0613
0.95 138.0 -0.3881 0.4026 0.0413
0.95 150.0 0.2316 0.5121 0.0344
0.95 162.0 0.793 0.6587 0.0653
0.95 174.0 0.595 0.7304 0.0528
0.95 186.0 -0.0162 0.5663 0.03
0.95 198.0 -0.6974 0.4815 0.0591
0.95 210.0 0.9495 0.5228 0.0756
0.95 222.0 0.412 0.4165 0.0425
0.95 234.0 0.1996 0.3456 0.0334
0.95 246.0 0.1726 0.3398 0.0325
0.95 258.0 -0.5479 0.2957 0.05
0.95 270.0 0.1098 0.3013 0.0311
0.95 282.0 -0.7847 0.2364 0.0647
0.95 294.0 0.0333 0.3031 0.0301
0.95 306.0 -0.2054 0.4565 0.0335
