Measurement E151M994

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: AUL
εL: 0.5712
Q2: 0.2445 GeV2
W: 1355.0 GeV
Ebeam: 2.999 GeV
ε: 0.9555

Slice: cos(θπ+) =

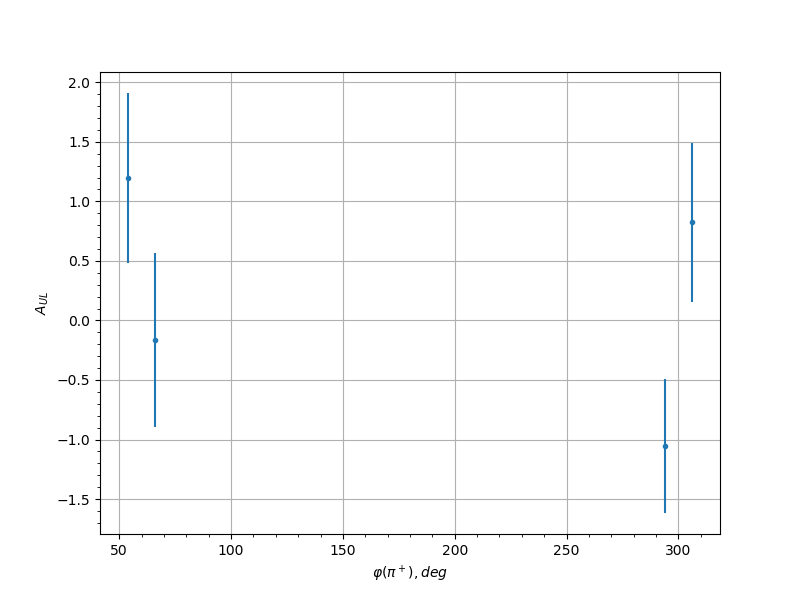

Measurement data
cos(θπ+) φ(π+), [deg] AUL uncertainty syst. uncert.
0.05 54.0 1.1974 0.7121 0.0925
0.05 66.0 -0.165 0.7274 0.0323
0.05 294.0 -1.0536 0.5633 0.0826
0.05 306.0 0.824 0.6682 0.0673
0.15 54.0 -0.2388 0.5443 0.0347
0.15 66.0 1.2048 0.6314 0.093
0.15 294.0 -0.0609 0.6376 0.0303
0.15 306.0 -0.9251 0.4314 0.074
0.25 54.0 0.6168 0.6405 0.0541
0.25 66.0 -0.758 0.5902 0.063
0.25 78.0 0.1187 0.7152 0.0312
0.25 294.0 -0.6661 0.4528 0.0572
0.25 306.0 -1.0571 0.4837 0.0829
0.35 54.0 1.3943 0.8023 0.1062
0.35 66.0 0.1208 0.5846 0.0313
0.35 78.0 0.5369 0.7323 0.0494
0.35 282.0 0.2122 0.6799 0.0338
0.35 294.0 0.2844 0.5545 0.0365
0.45 54.0 1.1082 0.7689 0.0864
0.45 66.0 -0.0238 0.6411 0.0301
0.45 78.0 0.3722 0.8475 0.0405
0.45 282.0 -1.0685 0.4914 0.0837
0.45 294.0 -0.4764 0.5857 0.046
0.55 66.0 -0.2605 0.6767 0.0355
0.55 78.0 1.6248 0.7192 0.1225
0.55 90.0 0.724 0.6219 0.0608
0.55 102.0 1.3623 0.7314 0.104
0.55 270.0 0.3895 0.6659 0.0414
0.55 282.0 0.2009 0.6373 0.0334
0.55 294.0 0.8653 0.6712 0.07
0.65 66.0 -0.546 0.5733 0.0499
0.65 78.0 0.1344 0.4334 0.0316
0.65 90.0 -0.1478 0.3824 0.0319
0.65 102.0 0.2066 0.4813 0.0336
0.65 114.0 0.9569 0.7316 0.0761
0.65 258.0 0.1081 0.414 0.031
0.65 270.0 -0.1215 0.3762 0.0313
0.65 282.0 -0.3106 0.3984 0.0376
0.65 294.0 -0.489 0.6134 0.0467
0.75 54.0 0.1809 0.6196 0.0328
0.75 66.0 0.0745 0.5533 0.0305
0.75 78.0 0.3203 0.4065 0.0381
0.75 90.0 0.0226 0.382 0.03
0.75 102.0 -0.1092 0.3861 0.031
0.75 114.0 0.1823 0.4293 0.0328
0.75 126.0 0.4401 0.6568 0.044
0.75 234.0 -0.7096 0.5015 0.0599
0.75 246.0 -0.4702 0.4189 0.0456
0.75 258.0 -0.6601 0.3181 0.0568
0.75 270.0 0.2099 0.3567 0.0337
0.75 282.0 0.0351 0.324 0.0301
0.75 294.0 -0.3062 0.4074 0.0374
0.75 306.0 -0.164 0.5311 0.0323
0.85 54.0 -0.0372 0.4396 0.0301
0.85 66.0 0.8266 0.6563 0.0675
0.85 78.0 -0.4007 0.3241 0.0419
0.85 90.0 0.6353 0.3392 0.0553
0.85 102.0 0.643 0.4187 0.0558
0.85 114.0 0.1135 0.3804 0.0311
0.85 126.0 -0.391 0.4515 0.0414
0.85 138.0 0.4267 0.5304 0.0433
0.85 198.0 0.68 0.691 0.0581
0.85 210.0 0.3254 0.6648 0.0383
0.85 222.0 -0.8166 0.3275 0.0668
0.85 234.0 0.0441 0.435 0.0302
0.85 246.0 -0.1217 0.3571 0.0313
0.85 258.0 -0.2398 0.3319 0.0347
0.85 270.0 -0.5977 0.2925 0.053
0.85 282.0 -0.1196 0.361 0.0312
0.85 294.0 -0.2788 0.2965 0.0363
0.85 306.0 0.034 0.34 0.0301
0.85 318.0 -1.379 0.4434 0.1052
0.95 42.0 -0.4345 0.5986 0.0437
0.95 54.0 0.1648 0.6349 0.0323
0.95 78.0 -0.4892 0.3707 0.0467
0.95 90.0 0.1681 0.4605 0.0324
0.95 102.0 -0.094 0.4146 0.0308
0.95 114.0 0.1137 0.4735 0.0311
0.95 126.0 0.3073 0.5422 0.0375
0.95 138.0 -0.0539 0.5643 0.0303
0.95 150.0 -0.6087 0.5655 0.0537
0.95 162.0 0.3368 0.7164 0.0388
0.95 174.0 -0.0968 0.7268 0.0308
0.95 186.0 0.9184 0.7686 0.0735
0.95 198.0 -0.0375 0.5395 0.0301
0.95 210.0 -0.4165 0.4766 0.0427
0.95 222.0 -0.8512 0.3815 0.0691
0.95 234.0 0.2751 0.4582 0.0361
0.95 246.0 -0.3975 0.3935 0.0418
0.95 258.0 -0.2053 0.3393 0.0335
0.95 270.0 -0.0006 0.384 0.03
0.95 282.0 0.0663 0.4012 0.0304
0.95 294.0 -0.2361 0.3243 0.0346
0.95 306.0 0.316 0.3814 0.0379
0.95 318.0 -0.0944 0.3876 0.0308
0.95 330.0 0.2119 0.4661 0.0338
