Measurement E159M1001

Experiment:	E1-6
Year:	2001	Experiment comment: Experiment year: 2001—2002
Spokesperson:	V. Burkert
Reaction:	ep → π⁺π⁻p
Polarization:	none
Quantity:	dσ/dψ(p)
Q²:	4.2 — 5.0 GeV²
W:	1.75 GeV
E_beam:	5.75 GeV

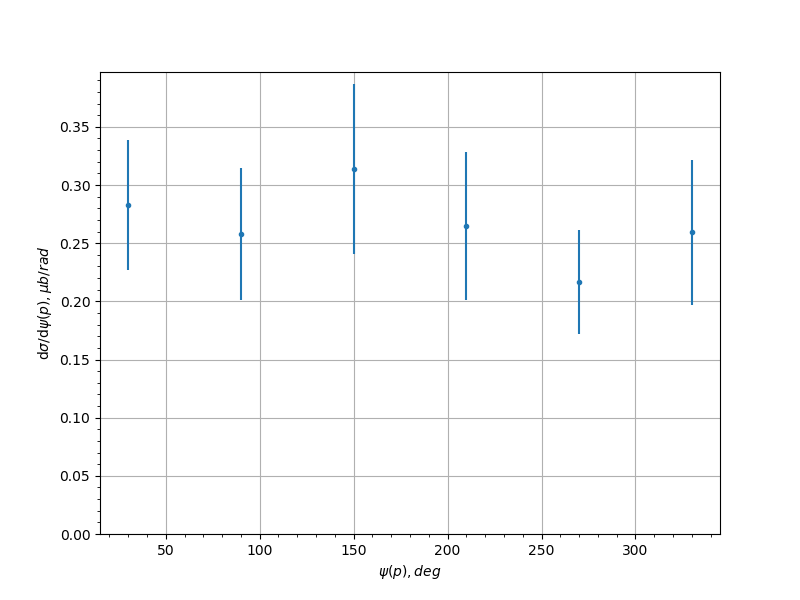

Measurement data
ψ(p), [deg]	dσ/dψ(p), [μb/rad]	uncertainty
30.0	0.282439	0.0558527
90.0	0.258172	0.0567092
150.0	0.313594	0.0728066
210.0	0.264748	0.0633064
270.0	0.216549	0.044895
330.0	0.259264	0.0624799
