Measurement E159M226

Experiment:	E1-6
Year:	2001	Experiment comment: Experiment year: 2001—2002
Spokesperson:	V. Burkert
Reaction:	ep → π⁺π⁻p
Polarization:	none
Quantity:	dσ/dψ(π⁺)
Q²:	2.4 — 3.0 GeV²
W:	1.4 GeV
E_beam:	5.75 GeV

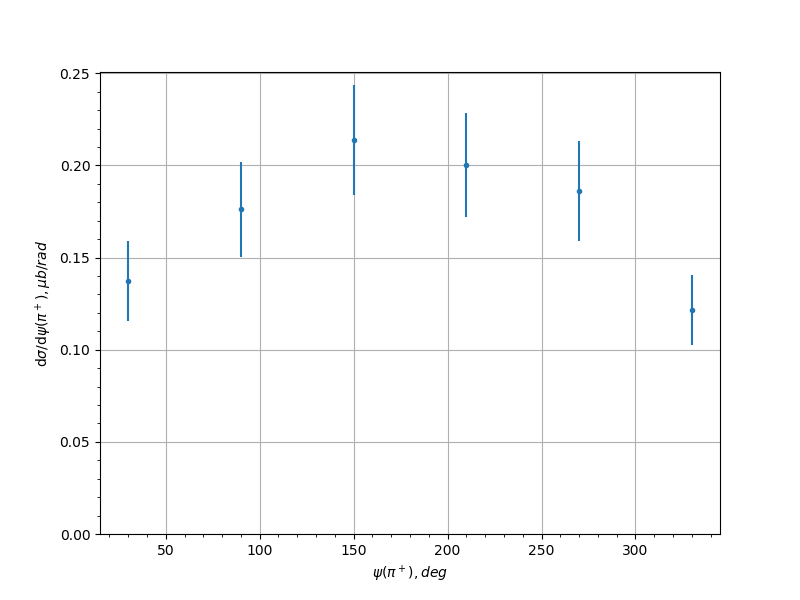

Measurement data
ψ(π⁺), [deg]	dσ/dψ(π⁺), [μb/rad]	uncertainty
30.0	0.137439	0.0216755
90.0	0.17613	0.0258314
150.0	0.213719	0.0299172
210.0	0.200075	0.0281079
270.0	0.186207	0.0269556
330.0	0.121584	0.0189365
