Measurement E159M28

Experiment:	E1-6
Year:	2001	Experiment comment: Experiment year: 2001—2002
Spokesperson:	V. Burkert
Reaction:	ep → π⁺π⁻p
Polarization:	none
Quantity:	dσ/dψ(π⁺)
Q²:	2.0 — 2.4 GeV²
W:	1.45 GeV
E_beam:	5.75 GeV

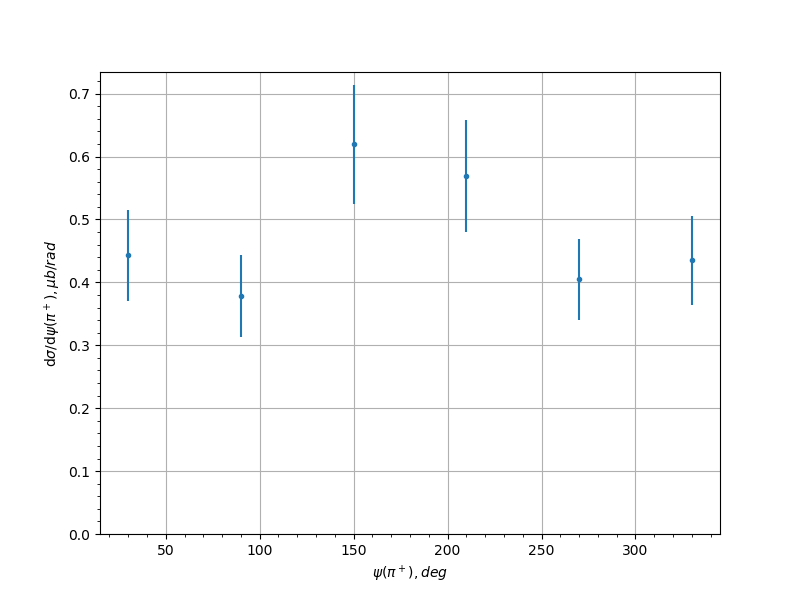

Measurement data
ψ(π⁺), [deg]	dσ/dψ(π⁺), [μb/rad]	uncertainty
30.0	0.442935	0.0718547
90.0	0.378097	0.0649675
150.0	0.619617	0.0947785
210.0	0.568911	0.0889966
270.0	0.405057	0.0644765
330.0	0.435103	0.0703905
