Measurement E159M451

Experiment:	E1-6
Year:	2001	Experiment comment: Experiment year: 2001—2002
Spokesperson:	V. Burkert
Reaction:	ep → π⁺π⁻p
Polarization:	none
Quantity:	dσ/dψ(π⁺)
Q²:	3.0 — 3.5 GeV²
W:	1.425 GeV
E_beam:	5.75 GeV

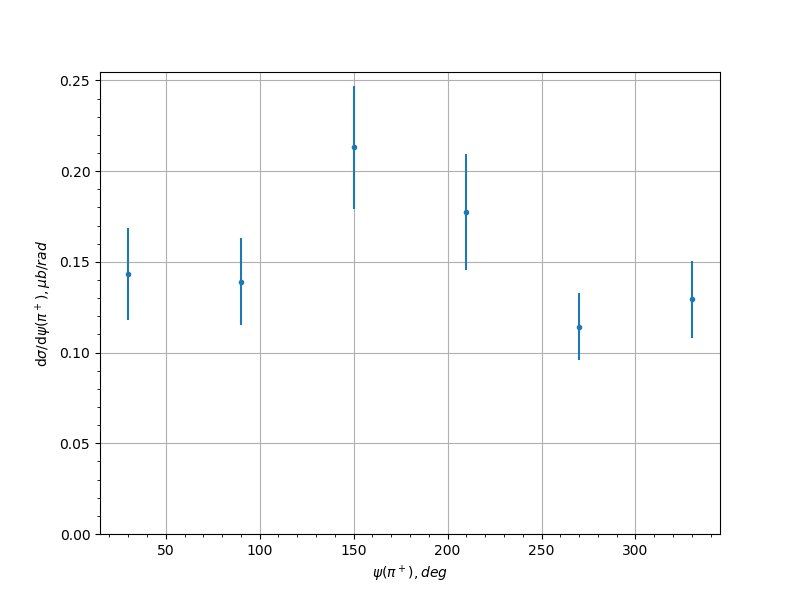

Measurement data
ψ(π⁺), [deg]	dσ/dψ(π⁺), [μb/rad]	uncertainty
30.0	0.143407	0.025461
90.0	0.139028	0.0238969
150.0	0.21313	0.0339721
210.0	0.177517	0.0320374
270.0	0.11427	0.0185137
330.0	0.129369	0.0212866
