Measurement E159M844

Experiment:	E1-6
Year:	2001	Experiment comment: Experiment year: 2001—2002
Spokesperson:	V. Burkert
Reaction:	ep → π⁺π⁻p
Polarization:	none
Quantity:	dσ/dM(π⁺,π⁻)
Q²:	3.5 — 4.2 GeV²
W:	1.925 GeV
E_beam:	5.75 GeV

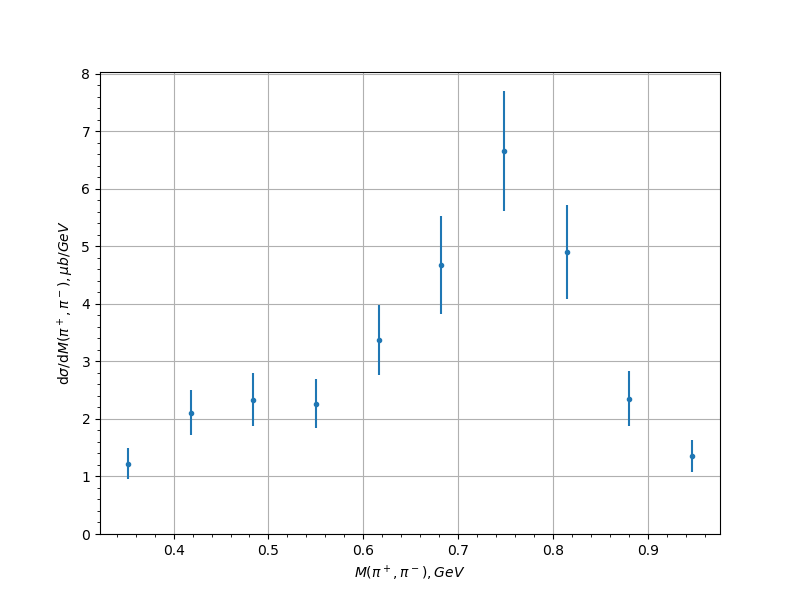

Measurement data
M(π⁺,π⁻), [GeV]	dσ/dM(π⁺,π⁻), [μb/GeV]	uncertainty
0.352145	1.22434	0.268207
0.418153	2.10543	0.389565
0.484163	2.33418	0.461083
0.550171	2.26462	0.427058
0.61618	3.3665	0.60524
0.68219	4.67886	0.847503
0.748199	6.65578	1.03534
0.814207	4.89721	0.81328
0.880216	2.3513	0.482717
0.946226	1.35309	0.27864
