Measurement E159M90

Experiment:	E1-6
Year:	2001	Experiment comment: Experiment year: 2001—2002
Spokesperson:	V. Burkert
Reaction:	ep → π⁺π⁻p
Polarization:	none
Quantity:	dσ/dψ(π⁻)
Q²:	2.0 — 2.4 GeV²
W:	1.625 GeV
E_beam:	5.75 GeV

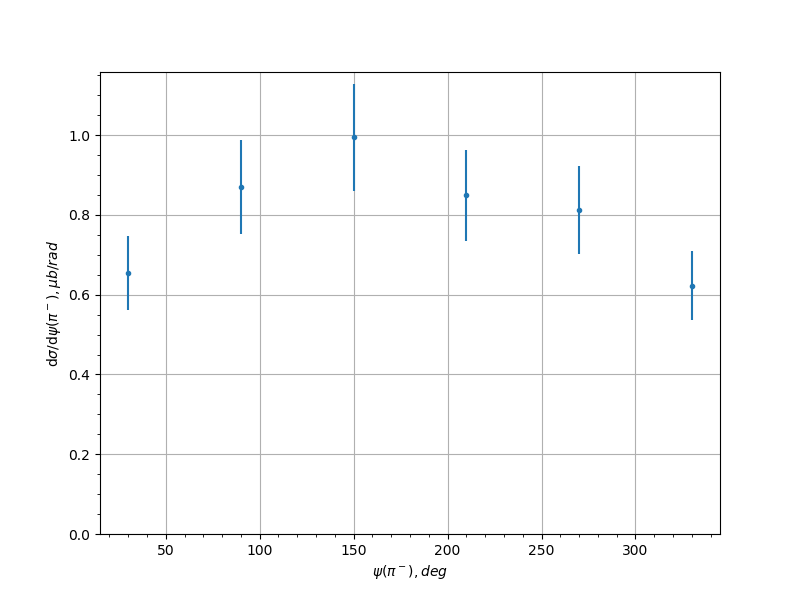

Measurement data
ψ(π⁻), [deg]	dσ/dψ(π⁻), [μb/rad]	uncertainty
30.0	0.655306	0.0926386
90.0	0.870706	0.11797
150.0	0.994769	0.134012
210.0	0.848873	0.114216
270.0	0.813307	0.110158
330.0	0.622557	0.0870044
