Measurement E160M131

Experiment:	g13
Year:	2006	Experiment comment: Ran: 2006-2007
Spokesperson:	Paul Mattione
Reaction:	γd → π⁻ p
Polarization:	none
Quantity:	dσ/dΩ
E_γ:	1.99 GeV
Publication:	P. T. Mattione et al. (CLAS Collaboration) Differential Cross Section Measurements for γn → π⁻p Above the First Nucleon Resonance Region // Phys. Rev. C 96, 035204 (2017) arXiv:1706.01963 [nucl-ex]

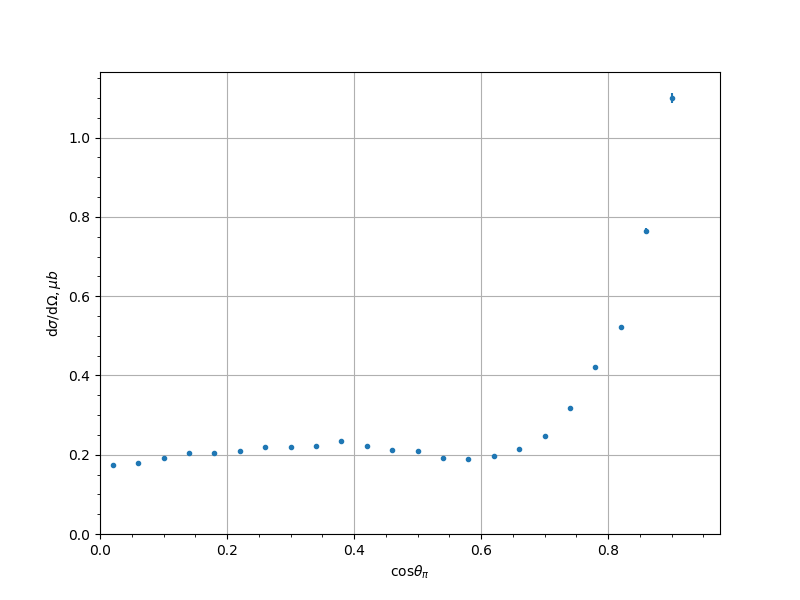

Measurement data
cos(θ_π)	dσ/dΩ, [μb]	uncertainty	syst. uncert.	full uncertainty
-0.62	0.0786	0.0036	0.0122	0.0129
-0.58	0.0776	0.0023	0.007	0.007
-0.54	0.0795	0.0021	0.0083	0.0089
-0.5	0.093	0.0023	0.0109	0.0114
-0.46	0.1023	0.0024	0.008	0.009
-0.42	0.1294	0.0029	0.007	0.009
-0.38	0.1275	0.0028	0.0131	0.0139
-0.34	0.1368	0.0032	0.0164	0.0171
-0.3	0.1445	0.0033	0.0155	0.0163
-0.26	0.1503	0.0031	0.0162	0.017
-0.22	0.1592	0.0031	0.012	0.013
-0.18	0.155	0.0027	0.009	0.01
-0.14	0.1626	0.0028	0.013	0.014
-0.1	0.1658	0.0028	0.012	0.014
-0.06	0.1751	0.0028	0.007	0.009
-0.02	0.1673	0.0025	0.012	0.013
0.02	0.1752	0.0027	0.013	0.014
0.06	0.1784	0.003	0.016	0.017
0.1	0.1907	0.0033	0.013	0.014
0.14	0.2036	0.0031	0.01	0.012
0.18	0.2048	0.0026	0.014	0.016
0.22	0.2097	0.0024	0.01	0.012
0.26	0.2207	0.0025	0.009	0.011
0.3	0.2198	0.0026	0.009	0.011
0.34	0.2213	0.0028	0.006	0.009
0.38	0.2352	0.0031	0.014	0.016
0.42	0.2212	0.003	0.02	0.021
0.46	0.212	0.0029	0.009	0.011
0.5	0.2099	0.0029	0.011	0.012
0.54	0.1928	0.0026	0.01	0.012
0.58	0.188	0.0025	0.007	0.009
0.62	0.1979	0.0026	0.007	0.009
0.66	0.2132	0.0027	0.009	0.011
0.7	0.2463	0.0031	0.012	0.014
0.74	0.3169	0.0041	0.015	0.017
0.78	0.4218	0.004	0.018	0.021
0.82	0.5221	0.0047	0.037	0.04
0.86	0.7653	0.0077	0.056	0.06
0.9	1.1005	0.0131	0.1	0.11
