Measurement E170M129

Experiment: e1e
Year: 2002

Experiment comment:

Year: 2002-2003
Spokesperson: N. Markov
Reaction: ep → π0p
Polarization: none
Quantity: dσ/dΩ
Q2: 0.65 GeV2
W: 1.6375 GeV
ε: 0.52907
Publication:
V. Burkert, M. Gai, R. Minehart, R. Whitney Measurements of p(e,e' π+)n, p(e,e'p)π0, and n(e,e'π−)p in the Second Resonance Region // Phys. Rev. C 101, 015208 (2020)

Slice: θ = degree

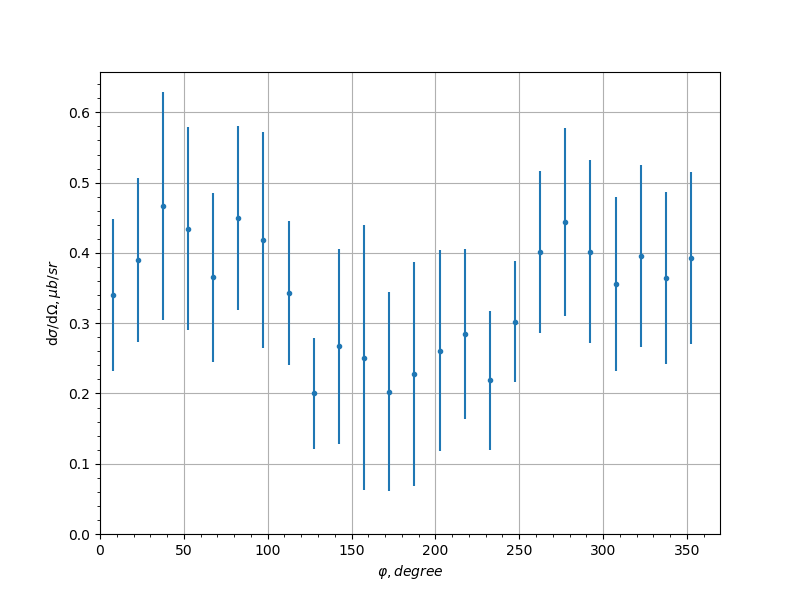

Measurement data
θ, [degree] φ, [degree] dσ/dΩ, [μb/sr] uncertainty
154.158 7.5 0.339857 0.108266
154.158 22.5 0.389949 0.116283
154.158 37.5 0.467034 0.162026
154.158 52.5 0.434481 0.144229
154.158 67.5 0.365448 0.120129
154.158 82.5 0.449626 0.130502
154.158 97.5 0.418323 0.153636
154.158 112.5 0.343112 0.1024
154.158 127.5 0.199986 0.0792024
154.158 142.5 0.266827 0.13936
154.158 157.5 0.251076 0.188709
154.158 172.5 0.202701 0.14098
154.158 187.5 0.227302 0.159571
154.158 202.5 0.260845 0.143375
154.158 217.5 0.284595 0.121355
154.158 232.5 0.21882 0.0991581
154.158 247.5 0.302028 0.0858245
154.158 262.5 0.401466 0.115658
154.158 277.5 0.443766 0.133427
154.158 292.5 0.401856 0.129987
154.158 307.5 0.35543 0.124157
154.158 322.5 0.3957 0.130096
154.158 337.5 0.363916 0.122105
154.158 352.5 0.39243 0.121987
134.427 7.5 0.57689 0.144423
134.427 22.5 0.595555 0.177194
134.427 37.5 0.691908 0.192386
134.427 52.5 0.796482 0.25433
134.427 67.5 0.595526 0.195188
134.427 82.5 0.812749 0.214903
134.427 97.5 0.730079 0.181971
134.427 112.5 0.622572 0.154833
134.427 127.5 0.811015 0.38812
134.427 142.5 0.0 0.0
134.427 157.5 0.0 0.0
134.427 172.5 0.0 0.0
134.427 187.5 0.0 0.0
134.427 202.5 0.0 0.0
134.427 217.5 0.0 0.0
134.427 232.5 0.522804 0.183905
134.427 247.5 0.651335 0.157321
134.427 262.5 0.505041 0.140347
134.427 277.5 0.570009 0.15783
134.427 292.5 0.669102 0.223938
134.427 307.5 0.678719 0.18875
134.427 322.5 0.541063 0.168861
134.427 337.5 0.460375 0.132905
134.427 352.5 0.596741 0.179479
120.0 7.5 0.675686 0.182044
120.0 22.5 0.671627 0.202883
120.0 37.5 0.624962 0.154002
120.0 52.5 0.654123 0.17974
120.0 67.5 0.58284 0.160516
120.0 82.5 0.696166 0.164945
120.0 97.5 0.797299 0.168017
120.0 112.5 0.784596 0.156263
120.0 127.5 0.963248 0.200455
120.0 142.5 0.0 0.0
120.0 157.5 0.0 0.0
120.0 172.5 0.0 0.0
120.0 187.5 0.0 0.0
120.0 202.5 0.0 0.0
120.0 217.5 1.00429 1.55251
120.0 232.5 0.795914 0.165868
120.0 247.5 0.828651 0.165615
120.0 262.5 0.629613 0.13828
120.0 277.5 0.601663 0.15945
120.0 292.5 0.578428 0.149286
120.0 307.5 0.606049 0.157915
120.0 322.5 0.683999 0.187685
120.0 337.5 0.65919 0.183273
120.0 352.5 0.770861 0.215558
107.458 7.5 0.834631 0.377797
107.458 22.5 0.590304 0.14343
107.458 37.5 0.82483 0.204911
107.458 52.5 0.706328 0.155108
107.458 67.5 0.783351 0.16121
107.458 82.5 0.770481 0.136454
107.458 97.5 0.892834 0.14753
107.458 112.5 1.16207 0.173124
107.458 127.5 1.19277 0.237396
107.458 142.5 4.50538 6.49617
107.458 157.5 0.0 0.0
107.458 172.5 0.0 0.0
107.458 187.5 0.0 0.0
107.458 202.5 13.1458 18.5944
107.458 217.5 1.51351 1.10109
107.458 232.5 1.10931 0.235674
107.458 247.5 1.15922 0.183749
107.458 262.5 0.864187 0.141545
107.458 277.5 0.982432 0.163845
107.458 292.5 0.771472 0.156705
107.458 307.5 0.651434 0.146261
107.458 322.5 0.794687 0.189654
107.458 337.5 0.650123 0.160449
107.458 352.5 0.692942 0.293755
95.7392 7.5 0.788432 2.15154
95.7392 22.5 0.665089 0.115606
95.7392 37.5 0.891939 0.153116
95.7392 52.5 0.860859 0.161207
95.7392 67.5 1.07368 0.131936
95.7392 82.5 1.1296 0.137124
95.7392 97.5 1.3653 0.157968
95.7392 112.5 1.47826 0.18484
95.7392 127.5 1.92752 0.292171
95.7392 142.5 1.44373 0.178457
95.7392 157.5 2.37229 10.825
95.7392 172.5 0.0 0.0
95.7392 187.5 0.0 0.0
95.7392 202.5 9.07849 9.24052
95.7392 217.5 1.96182 0.2244
95.7392 232.5 1.99669 0.375414
95.7392 247.5 1.28159 0.156779
95.7392 262.5 1.3685 0.152196
95.7392 277.5 1.15415 0.141658
95.7392 292.5 1.01525 0.136111
95.7392 307.5 0.882194 0.127603
95.7392 322.5 0.965999 0.161136
95.7392 337.5 0.684349 0.114601
95.7392 352.5 0.668438 0.299629
84.2608 7.5 0.685445 0.266802
84.2608 22.5 0.633152 0.0930394
84.2608 37.5 0.741188 0.100089
84.2608 52.5 0.838534 0.112666
84.2608 67.5 1.11259 0.112048
84.2608 82.5 1.19343 0.094098
84.2608 97.5 1.44782 0.115022
84.2608 112.5 1.50805 0.160095
84.2608 127.5 1.77848 0.198327
84.2608 142.5 1.49404 0.124014
84.2608 157.5 3.40672 2.51709
84.2608 172.5 1.50714 17.23
84.2608 187.5 2.75544 5.56015
84.2608 202.5 2.10498 0.995643
84.2608 217.5 1.50872 0.126819
84.2608 232.5 1.62288 0.214839
84.2608 247.5 1.53927 0.176031
84.2608 262.5 1.48864 0.115949
84.2608 277.5 1.383 0.116107
84.2608 292.5 1.12952 0.120496
84.2608 307.5 0.977 0.118874
84.2608 322.5 0.861221 0.108973
84.2608 337.5 0.628632 0.0780894
84.2608 352.5 0.81796 0.308969
72.5424 7.5 0.674992 0.190079
72.5424 22.5 0.522723 0.0967693
72.5424 37.5 0.701368 0.0997443
72.5424 52.5 1.02958 0.107804
72.5424 67.5 1.05894 0.0905618
72.5424 82.5 1.14319 0.0944548
72.5424 97.5 1.21906 0.108051
72.5424 112.5 0.967075 0.129348
72.5424 127.5 1.42683 0.149256
72.5424 142.5 1.41115 0.097394
72.5424 157.5 1.18175 0.223857
72.5424 172.5 1.09448 0.211753
72.5424 187.5 1.37783 0.286955
72.5424 202.5 1.18797 0.204223
72.5424 217.5 1.27313 0.0979039
72.5424 232.5 1.34654 0.135613
72.5424 247.5 1.48636 0.158194
72.5424 262.5 1.28945 0.0952167
72.5424 277.5 1.11616 0.0945175
72.5424 292.5 1.02069 0.0939925
72.5424 307.5 0.892273 0.109491
72.5424 322.5 0.735244 0.114632
72.5424 337.5 0.687917 0.0835782
72.5424 352.5 0.916255 0.285637
60.0 7.5 1.04496 2.66536
60.0 22.5 0.669634 0.130355
60.0 37.5 0.671844 0.123789
60.0 52.5 0.872564 0.102721
60.0 67.5 0.917641 0.0793647
60.0 82.5 0.836847 0.100203
60.0 97.5 1.02325 0.112543
60.0 112.5 0.823385 0.120425
60.0 127.5 1.07056 0.103524
60.0 142.5 0.918395 0.0781745
60.0 157.5 1.15121 0.29068
60.0 172.5 0.969096 0.127015
60.0 187.5 0.915239 0.122617
60.0 202.5 0.982054 0.180553
60.0 217.5 0.975854 0.078108
60.0 232.5 1.1465 0.112615
60.0 247.5 1.07195 0.144769
60.0 262.5 0.948106 0.105061
60.0 277.5 0.867041 0.0723701
60.0 292.5 1.04761 0.0913347
60.0 307.5 0.763181 0.112398
60.0 322.5 0.747294 0.108847
60.0 337.5 1.07881 0.217971
60.0 352.5 0.0 0.0
45.573 7.5 0.0 0.0
45.573 22.5 1.55255 1.22777
45.573 37.5 1.94438 0.929747
45.573 52.5 0.787565 0.204281
45.573 67.5 0.788495 0.086819
45.573 82.5 0.668782 0.066553
45.573 97.5 0.780147 0.104945
45.573 112.5 0.718126 0.108494
45.573 127.5 0.668233 0.0753941
45.573 142.5 0.676267 0.0609093
45.573 157.5 0.740775 0.121647
45.573 172.5 0.685184 0.0955906
45.573 187.5 0.513367 0.0640655
45.573 202.5 0.856879 0.180366
45.573 217.5 0.711253 0.0631167
45.573 232.5 0.797206 0.0958598
45.573 247.5 0.72971 0.130087
45.573 262.5 0.842701 0.112109
45.573 277.5 0.788606 0.071473
45.573 292.5 0.746223 0.0859682
45.573 307.5 0.653469 0.1101
45.573 322.5 1.65352 0.447015
45.573 337.5 0.0 0.0
45.573 352.5 0.0 0.0
25.8419 7.5 1.3136 0.429331
25.8419 22.5 1.46414 0.481233
25.8419 37.5 1.14339 0.433034
25.8419 52.5 0.726638 0.437776
25.8419 67.5 0.573658 0.089423
25.8419 82.5 0.591452 0.0607051
25.8419 97.5 0.538782 0.0586506
25.8419 112.5 0.502074 0.101277
25.8419 127.5 0.588796 0.155645
25.8419 142.5 0.473007 0.0606392
25.8419 157.5 0.366591 0.13474
25.8419 172.5 0.345409 0.069021
25.8419 187.5 0.387875 0.0952385
25.8419 202.5 0.547661 0.16648
25.8419 217.5 0.567434 0.0721945
25.8419 232.5 0.449125 0.121282
25.8419 247.5 0.55791 0.0961052
25.8419 262.5 0.588669 0.0656625
25.8419 277.5 0.529198 0.0676508
25.8419 292.5 0.54932 0.104659
25.8419 307.5 0.96238 0.371627
25.8419 322.5 1.52749 0.542895
25.8419 337.5 1.01766 0.317189
25.8419 352.5 1.26202 0.422942
