Measurement E170M149

Experiment: e1e
Year: 2002

Experiment comment:

Year: 2002-2003
Spokesperson: N. Markov
Reaction: ep → π0p
Polarization: none
Quantity: dσ/dΩ
Q2: 0.85 GeV2
W: 1.7125 GeV
ε: 0.325946
Publication:
V. Burkert, M. Gai, R. Minehart, R. Whitney Measurements of p(e,e' π+)n, p(e,e'p)π0, and n(e,e'π−)p in the Second Resonance Region // Phys. Rev. C 101, 015208 (2020)

Slice: θ = degree

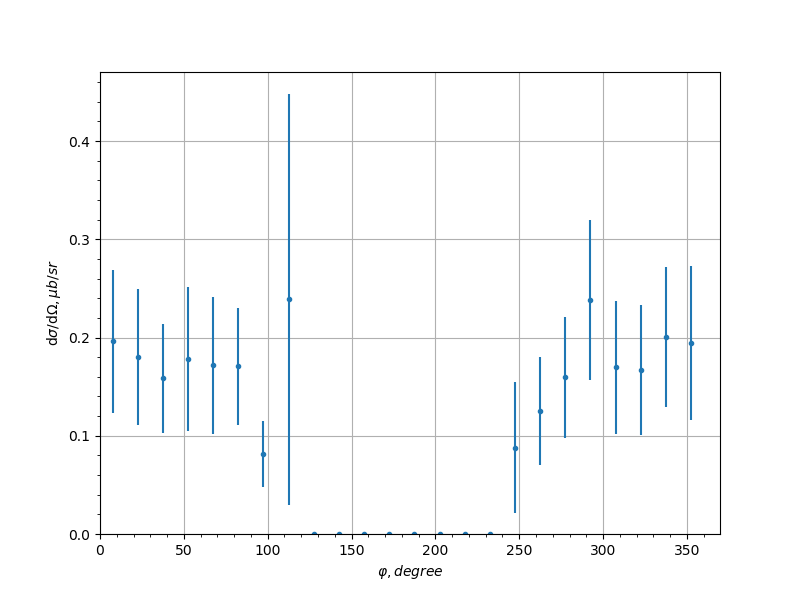

Measurement data
θ, [degree] φ, [degree] dσ/dΩ, [μb/sr] uncertainty
154.158 7.5 0.196319 0.072807
154.158 22.5 0.180575 0.0691781
154.158 37.5 0.158418 0.0554901
154.158 52.5 0.177877 0.0734951
154.158 67.5 0.171533 0.0693183
154.158 82.5 0.170685 0.0593314
154.158 97.5 0.0813081 0.0336336
154.158 112.5 0.238743 0.209169
154.158 127.5 0.0 0.0
154.158 142.5 0.0 0.0
154.158 157.5 0.0 0.0
154.158 172.5 0.0 0.0
154.158 187.5 0.0 0.0
154.158 202.5 0.0 0.0
154.158 217.5 0.0 0.0
154.158 232.5 0.0 0.0
154.158 247.5 0.0879314 0.0669334
154.158 262.5 0.125287 0.0551333
154.158 277.5 0.159657 0.06162
154.158 292.5 0.238276 0.081314
154.158 307.5 0.169634 0.067768
154.158 322.5 0.166965 0.0663319
154.158 337.5 0.200464 0.071136
154.158 352.5 0.19415 0.0783102
134.427 7.5 0.184764 0.0783749
134.427 22.5 0.192806 0.0801675
134.427 37.5 0.167327 0.0654251
134.427 52.5 0.201512 0.0789406
134.427 67.5 0.217148 0.0824292
134.427 82.5 0.270686 0.0955562
134.427 97.5 0.145178 0.0478456
134.427 112.5 0.125555 0.0485578
134.427 127.5 0.0 0.0
134.427 142.5 0.0 0.0
134.427 157.5 0.0 0.0
134.427 172.5 0.0 0.0
134.427 187.5 0.0 0.0
134.427 202.5 0.0 0.0
134.427 217.5 0.0 0.0
134.427 232.5 0.483126 0.286081
134.427 247.5 0.195214 0.0781301
134.427 262.5 0.229128 0.0783876
134.427 277.5 0.19462 0.0781762
134.427 292.5 0.160078 0.0673035
134.427 307.5 0.237372 0.0906198
134.427 322.5 0.203704 0.0929276
134.427 337.5 0.250416 0.103665
134.427 352.5 0.224202 0.0830233
120.0 7.5 0.487847 0.379645
120.0 22.5 0.223303 0.10254
120.0 37.5 0.267127 0.124499
120.0 52.5 0.265217 0.132025
120.0 67.5 0.26815 0.108283
120.0 82.5 0.236039 0.0753378
120.0 97.5 0.318215 0.0966618
120.0 112.5 0.361868 0.115441
120.0 127.5 0.401867 0.243545
120.0 142.5 0.0 0.0
120.0 157.5 0.0 0.0
120.0 172.5 0.0 0.0
120.0 187.5 0.0 0.0
120.0 202.5 0.0 0.0
120.0 217.5 0.62007 0.67194
120.0 232.5 0.31298 0.145847
120.0 247.5 0.449282 0.122966
120.0 262.5 0.370604 0.11636
120.0 277.5 0.260883 0.0753046
120.0 292.5 0.228501 0.0990257
120.0 307.5 0.2045 0.0846886
120.0 322.5 0.24952 0.109238
120.0 337.5 0.230144 0.106126
120.0 352.5 0.43629 0.463012
107.458 7.5 1.32017 0.91169
107.458 22.5 0.291528 0.106166
107.458 37.5 0.312089 0.117598
107.458 52.5 0.282176 0.104578
107.458 67.5 0.317475 0.113178
107.458 82.5 0.319164 0.0921582
107.458 97.5 0.426458 0.109839
107.458 112.5 0.512248 0.145695
107.458 127.5 0.548607 0.145812
107.458 142.5 0.513864 0.159694
107.458 157.5 0.0 0.0
107.458 172.5 0.0 0.0
107.458 187.5 0.0 0.0
107.458 202.5 0.763117 1.24996
107.458 217.5 0.570396 0.181788
107.458 232.5 0.539875 0.142716
107.458 247.5 0.478236 0.141765
107.458 262.5 0.410402 0.114042
107.458 277.5 0.360329 0.0984177
107.458 292.5 0.426044 0.134782
107.458 307.5 0.380798 0.128034
107.458 322.5 0.302635 0.122614
107.458 337.5 0.373259 0.130606
107.458 352.5 0.368502 0.445323
95.7392 7.5 1.03855 0.825247
95.7392 22.5 0.486099 0.179165
95.7392 37.5 0.432766 0.113955
95.7392 52.5 0.561819 0.12214
95.7392 67.5 0.478417 0.123617
95.7392 82.5 0.528078 0.116875
95.7392 97.5 0.626257 0.153634
95.7392 112.5 0.646491 0.149163
95.7392 127.5 0.802914 0.163617
95.7392 142.5 0.822185 0.158799
95.7392 157.5 0.806863 0.270719
95.7392 172.5 0.289135 0.189857
95.7392 187.5 0.239083 0.194305
95.7392 202.5 0.575672 0.145359
95.7392 217.5 0.768305 0.12756
95.7392 232.5 0.921694 0.171768
95.7392 247.5 0.638813 0.141232
95.7392 262.5 0.520023 0.113798
95.7392 277.5 0.481648 0.110201
95.7392 292.5 0.598481 0.157443
95.7392 307.5 0.420249 0.12227
95.7392 322.5 0.429755 0.126605
95.7392 337.5 0.358444 0.116263
95.7392 352.5 1.12509 0.888715
84.2608 7.5 0.629101 0.480789
84.2608 22.5 0.457176 0.106647
84.2608 37.5 0.555965 0.114722
84.2608 52.5 0.698863 0.126838
84.2608 67.5 0.744262 0.12368
84.2608 82.5 0.798931 0.127114
84.2608 97.5 0.816606 0.129043
84.2608 112.5 0.811667 0.14541
84.2608 127.5 0.904078 0.141465
84.2608 142.5 0.995934 0.134679
84.2608 157.5 1.08035 0.187724
84.2608 172.5 0.97455 0.157364
84.2608 187.5 1.13954 0.167846
84.2608 202.5 0.826717 0.144942
84.2608 217.5 0.873872 0.112168
84.2608 232.5 1.02667 0.151103
84.2608 247.5 0.774634 0.138505
84.2608 262.5 0.805644 0.140211
84.2608 277.5 0.731924 0.118542
84.2608 292.5 0.736883 0.118895
84.2608 307.5 0.601498 0.115355
84.2608 322.5 0.538864 0.110903
84.2608 337.5 0.445512 0.0990608
84.2608 352.5 1.67294 0.993428
72.5424 7.5 1.14043 0.662512
72.5424 22.5 0.517833 0.0875502
72.5424 37.5 0.704967 0.100729
72.5424 52.5 0.602325 0.0820843
72.5424 67.5 0.625359 0.0896514
72.5424 82.5 0.690305 0.0836162
72.5424 97.5 0.828571 0.108207
72.5424 112.5 0.838015 0.116708
72.5424 127.5 0.962166 0.109254
72.5424 142.5 0.788466 0.099641
72.5424 157.5 0.896684 0.14916
72.5424 172.5 0.820024 0.110288
72.5424 187.5 1.06482 0.129649
72.5424 202.5 0.823028 0.119008
72.5424 217.5 0.906524 0.0999096
72.5424 232.5 0.933806 0.120373
72.5424 247.5 1.11687 0.13316
72.5424 262.5 0.888994 0.115973
72.5424 277.5 0.683173 0.0845323
72.5424 292.5 0.819771 0.0981175
72.5424 307.5 0.678785 0.110679
72.5424 322.5 0.432836 0.0736139
72.5424 337.5 0.612382 0.0921895
72.5424 352.5 1.55295 1.87356
60.0 7.5 3.03418 4.40713
60.0 22.5 0.880458 0.322552
60.0 37.5 0.566275 0.0764341
60.0 52.5 0.585716 0.0809134
60.0 67.5 0.66181 0.0780184
60.0 82.5 0.67212 0.0898558
60.0 97.5 0.772492 0.0957686
60.0 112.5 0.757104 0.0998167
60.0 127.5 0.768954 0.0863691
60.0 142.5 0.738739 0.0786054
60.0 157.5 0.675605 0.104077
60.0 172.5 0.593496 0.0863863
60.0 187.5 0.865787 0.111209
60.0 202.5 0.824807 0.116881
60.0 217.5 0.808197 0.0826223
60.0 232.5 0.674356 0.0833508
60.0 247.5 0.689824 0.0908864
60.0 262.5 0.870526 0.108421
60.0 277.5 0.692207 0.0814985
60.0 292.5 0.657525 0.0738494
60.0 307.5 0.692104 0.0950573
60.0 322.5 0.485331 0.0754114
60.0 337.5 0.792076 0.311301
60.0 352.5 0.0 0.0
45.573 7.5 0.0 0.0
45.573 22.5 2.32999 1.955
45.573 37.5 1.37154 0.41398
45.573 52.5 0.645316 0.09198
45.573 67.5 0.649044 0.0663957
45.573 82.5 0.683842 0.0762221
45.573 97.5 0.475636 0.0825611
45.573 112.5 0.710922 0.0935006
45.573 127.5 0.600196 0.0677894
45.573 142.5 0.583694 0.0640685
45.573 157.5 0.657648 0.103939
45.573 172.5 0.606433 0.106557
45.573 187.5 0.561869 0.0911435
45.573 202.5 0.500279 0.0845588
45.573 217.5 0.589869 0.0611537
45.573 232.5 0.593228 0.0676925
45.573 247.5 0.554725 0.0895157
45.573 262.5 0.742705 0.122152
45.573 277.5 0.658339 0.070792
45.573 292.5 0.625722 0.0716626
45.573 307.5 0.53869 0.0966696
45.573 322.5 1.46541 0.652594
45.573 337.5 0.0 0.0
45.573 352.5 0.0 0.0
25.8419 7.5 0.962497 0.646478
25.8419 22.5 0.30886 0.891932
25.8419 37.5 1.89644 1.6018
25.8419 52.5 0.373452 0.936125
25.8419 67.5 0.492647 0.0650072
25.8419 82.5 0.416872 0.0647933
25.8419 97.5 0.469476 0.0981896
25.8419 112.5 0.549522 0.11364
25.8419 127.5 0.431044 0.0620654
25.8419 142.5 0.433642 0.0619955
25.8419 157.5 0.321089 0.0648377
25.8419 172.5 0.380203 0.0699429
25.8419 187.5 0.449851 0.083529
25.8419 202.5 0.467186 0.0765777
25.8419 217.5 0.454432 0.0527099
25.8419 232.5 0.386695 0.0805889
25.8419 247.5 0.472636 0.129885
25.8419 262.5 0.46559 0.102263
25.8419 277.5 0.503492 0.058322
25.8419 292.5 0.457101 0.0617328
25.8419 307.5 0.424528 0.341027
25.8419 322.5 0.906735 0.951195
25.8419 337.5 1.40161 0.954552
25.8419 352.5 1.20284 0.879572
