Measurement E170M153

Experiment: e1e
Year: 2002

Experiment comment:

Year: 2002-2003
Spokesperson: N. Markov
Reaction: ep → π0p
Polarization: none
Quantity: dσ/dΩ
Q2: 0.65 GeV2
W: 1.7375 GeV
ε: 0.401142
Publication:
V. Burkert, M. Gai, R. Minehart, R. Whitney Measurements of p(e,e' π+)n, p(e,e'p)π0, and n(e,e'π−)p in the Second Resonance Region // Phys. Rev. C 101, 015208 (2020)

Slice: θ = degree

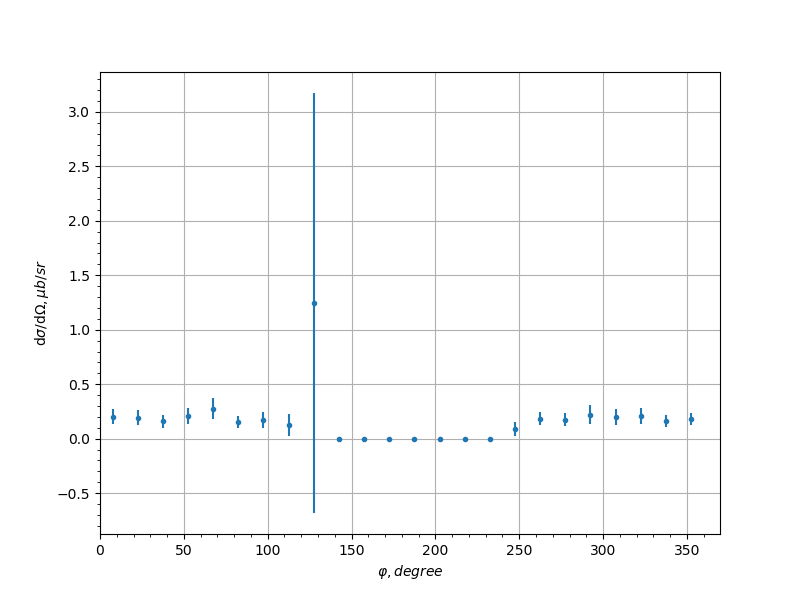

Measurement data
θ, [degree] φ, [degree] dσ/dΩ, [μb/sr] uncertainty
154.158 7.5 0.200323 0.0695109
154.158 22.5 0.194046 0.0689096
154.158 37.5 0.161482 0.059103
154.158 52.5 0.207298 0.076389
154.158 67.5 0.275251 0.0985147
154.158 82.5 0.155128 0.056359
154.158 97.5 0.16976 0.0728573
154.158 112.5 0.12511 0.10499
154.158 127.5 1.24555 1.92786
154.158 142.5 0.0 0.0
154.158 157.5 0.0 0.0
154.158 172.5 0.0 0.0
154.158 187.5 0.0 0.0
154.158 202.5 0.0 0.0
154.158 217.5 0.0 0.0
154.158 232.5 0.0 0.0
154.158 247.5 0.0872241 0.061961
154.158 262.5 0.184359 0.0585963
154.158 277.5 0.173642 0.0618277
154.158 292.5 0.221033 0.0879061
154.158 307.5 0.20115 0.0750729
154.158 322.5 0.209055 0.0720622
154.158 337.5 0.164418 0.05531
154.158 352.5 0.182212 0.0575523
134.427 7.5 0.212959 0.071652
134.427 22.5 0.138825 0.0557187
134.427 37.5 0.221125 0.0882814
134.427 52.5 0.222961 0.0846284
134.427 67.5 0.26148 0.0994567
134.427 82.5 0.22003 0.0635499
134.427 97.5 0.224099 0.0707774
134.427 112.5 0.192721 0.058985
134.427 127.5 0.0 0.0
134.427 142.5 0.0 0.0
134.427 157.5 0.0 0.0
134.427 172.5 0.0 0.0
134.427 187.5 0.0 0.0
134.427 202.5 0.0 0.0
134.427 217.5 0.0 0.0
134.427 232.5 0.137123 0.0808447
134.427 247.5 0.244342 0.0820181
134.427 262.5 0.179953 0.0596963
134.427 277.5 0.211311 0.0649936
134.427 292.5 0.220273 0.0802464
134.427 307.5 0.133366 0.0508315
134.427 322.5 0.199735 0.0834654
134.427 337.5 0.213246 0.0772801
134.427 352.5 0.16199 0.0625138
120.0 7.5 0.254407 0.0906963
120.0 22.5 0.244446 0.0861698
120.0 37.5 0.166245 0.0627513
120.0 52.5 0.265602 0.0985894
120.0 67.5 0.264431 0.0839642
120.0 82.5 0.292601 0.0896141
120.0 97.5 0.296959 0.0771264
120.0 112.5 0.328999 0.0999666
120.0 127.5 0.493761 0.196234
120.0 142.5 0.0 0.0
120.0 157.5 0.0 0.0
120.0 172.5 0.427161 0.470729
120.0 187.5 0.0 0.0
120.0 202.5 0.0 0.0
120.0 217.5 0.811744 0.948198
120.0 232.5 0.180826 0.112852
120.0 247.5 0.338794 0.0965383
120.0 262.5 0.32418 0.0950724
120.0 277.5 0.287624 0.0787755
120.0 292.5 0.189161 0.0591843
120.0 307.5 0.199894 0.0822013
120.0 322.5 0.22753 0.07956
120.0 337.5 0.285698 0.106751
120.0 352.5 0.27914 0.104527
107.458 7.5 0.560062 0.525238
107.458 22.5 0.302567 0.103088
107.458 37.5 0.323691 0.104519
107.458 52.5 0.255446 0.0784838
107.458 67.5 0.327485 0.0941726
107.458 82.5 0.326307 0.0775659
107.458 97.5 0.428098 0.105162
107.458 112.5 0.63017 0.162845
107.458 127.5 0.62721 0.179509
107.458 142.5 0.588102 0.124774
107.458 157.5 0.495966 0.235161
107.458 172.5 0.0354344 0.0402507
107.458 187.5 0.0 0.0
107.458 202.5 0.559698 0.227698
107.458 217.5 0.638356 0.129755
107.458 232.5 0.553128 0.16053
107.458 247.5 0.382735 0.0955351
107.458 262.5 0.43848 0.111465
107.458 277.5 0.351693 0.0793112
107.458 292.5 0.299021 0.0834411
107.458 307.5 0.311918 0.0967207
107.458 322.5 0.316475 0.103039
107.458 337.5 0.277334 0.10284
107.458 352.5 0.534765 0.602693
95.7392 7.5 0.971724 0.79825
95.7392 22.5 0.297638 0.0792706
95.7392 37.5 0.44748 0.105029
95.7392 52.5 0.373651 0.0910637
95.7392 67.5 0.553263 0.112247
95.7392 82.5 0.519696 0.084772
95.7392 97.5 0.474632 0.0903766
95.7392 112.5 0.75327 0.142083
95.7392 127.5 0.716025 0.112272
95.7392 142.5 0.744865 0.104456
95.7392 157.5 0.705016 0.205569
95.7392 172.5 1.16413 0.28179
95.7392 187.5 0.592615 0.185133
95.7392 202.5 0.926447 0.312979
95.7392 217.5 0.681367 0.0977293
95.7392 232.5 0.569896 0.105921
95.7392 247.5 0.684383 0.141048
95.7392 262.5 0.568153 0.104177
95.7392 277.5 0.457338 0.077703
95.7392 292.5 0.403058 0.0762296
95.7392 307.5 0.524091 0.112278
95.7392 322.5 0.49374 0.103115
95.7392 337.5 0.419948 0.10535
95.7392 352.5 1.08075 0.769437
84.2608 7.5 0.513989 0.454927
84.2608 22.5 0.478465 0.0788854
84.2608 37.5 0.517455 0.102643
84.2608 52.5 0.604735 0.0995
84.2608 67.5 0.622317 0.0830903
84.2608 82.5 0.631845 0.0771892
84.2608 97.5 0.586861 0.0840777
84.2608 112.5 0.745861 0.121319
84.2608 127.5 0.719902 0.0816937
84.2608 142.5 0.873255 0.0879716
84.2608 157.5 0.889094 0.147494
84.2608 172.5 0.954415 0.172756
84.2608 187.5 0.806273 0.189348
84.2608 202.5 0.937691 0.141285
84.2608 217.5 0.871882 0.0831364
84.2608 232.5 0.775878 0.093759
84.2608 247.5 0.662222 0.0980323
84.2608 262.5 0.647925 0.0940119
84.2608 277.5 0.644472 0.077728
84.2608 292.5 0.568421 0.0854368
84.2608 307.5 0.538048 0.0821029
84.2608 322.5 0.523587 0.0846373
84.2608 337.5 0.479068 0.0777331
84.2608 352.5 0.581223 0.298208
72.5424 7.5 0.963979 0.571197
72.5424 22.5 0.510838 0.0803645
72.5424 37.5 0.478328 0.0832706
72.5424 52.5 0.685995 0.0737934
72.5424 67.5 0.816845 0.0703564
72.5424 82.5 0.757754 0.0714018
72.5424 97.5 0.774462 0.0825516
72.5424 112.5 0.906594 0.0985232
72.5424 127.5 0.853484 0.071694
72.5424 142.5 0.886358 0.0760031
72.5424 157.5 0.814001 0.127007
72.5424 172.5 0.822692 0.115145
72.5424 187.5 0.620809 0.104853
72.5424 202.5 0.82936 0.122786
72.5424 217.5 0.944908 0.0750694
72.5424 232.5 0.864901 0.0780108
72.5424 247.5 0.810891 0.0905645
72.5424 262.5 0.835474 0.0890999
72.5424 277.5 0.834877 0.0699491
72.5424 292.5 0.720282 0.0687533
72.5424 307.5 0.716895 0.069606
72.5424 322.5 0.612064 0.078943
72.5424 337.5 0.539481 0.0741918
72.5424 352.5 0.97612 0.519664
60.0 7.5 2.8433 2.6765
60.0 22.5 0.661931 0.271983
60.0 37.5 0.600114 0.0750881
60.0 52.5 0.682545 0.0692144
60.0 67.5 0.692148 0.0619776
60.0 82.5 0.727724 0.0669713
60.0 97.5 0.883525 0.111445
60.0 112.5 0.784935 0.0893755
60.0 127.5 0.844279 0.0711982
60.0 142.5 0.90415 0.0724263
60.0 157.5 0.68986 0.0975716
60.0 172.5 0.718167 0.0800999
60.0 187.5 0.629058 0.0705399
60.0 202.5 0.74853 0.0931903
60.0 217.5 0.746893 0.0638173
60.0 232.5 0.822 0.0683192
60.0 247.5 0.763106 0.0946062
60.0 262.5 0.798246 0.0918802
60.0 277.5 0.678606 0.063514
60.0 292.5 0.613792 0.0602782
60.0 307.5 0.618716 0.0713061
60.0 322.5 0.574955 0.083079
60.0 337.5 0.808823 0.167051
60.0 352.5 0.0 0.0
45.573 7.5 0.0 0.0
45.573 22.5 3.72221 3.78605
45.573 37.5 1.43579 0.637664
45.573 52.5 0.60277 0.0875771
45.573 67.5 0.658362 0.0673308
45.573 82.5 0.619744 0.0671178
45.573 97.5 0.602204 0.0738625
45.573 112.5 0.779303 0.110888
45.573 127.5 0.622824 0.0637429
45.573 142.5 0.651331 0.0647436
45.573 157.5 0.687495 0.0977602
45.573 172.5 0.537783 0.0615962
45.573 187.5 0.569466 0.055761
45.573 202.5 0.671793 0.090625
45.573 217.5 0.55097 0.0650082
45.573 232.5 0.705244 0.0715216
45.573 247.5 0.688732 0.102926
45.573 262.5 0.613646 0.0662763
45.573 277.5 0.574131 0.0626435
45.573 292.5 0.595309 0.0817736
45.573 307.5 0.492568 0.0876415
45.573 322.5 0.944276 0.415518
45.573 337.5 0.0 0.0
45.573 352.5 0.0 0.0
25.8419 7.5 3.22743 1.89948
25.8419 22.5 3.24281 1.19615
25.8419 37.5 2.33995 1.17129
25.8419 52.5 2.54631 1.77292
25.8419 67.5 0.50345 0.0899468
25.8419 82.5 0.545719 0.0661291
25.8419 97.5 0.570551 0.0731764
25.8419 112.5 0.530287 0.0642351
25.8419 127.5 0.487968 0.0478639
25.8419 142.5 0.499623 0.0638258
25.8419 157.5 0.419214 0.144869
25.8419 172.5 0.464146 0.0837388
25.8419 187.5 0.443282 0.0801609
25.8419 202.5 0.434939 0.10622
25.8419 217.5 0.499387 0.0622498
25.8419 232.5 0.5659 0.0621988
25.8419 247.5 0.536442 0.0685754
25.8419 262.5 0.523548 0.0654221
25.8419 277.5 0.498252 0.0546557
25.8419 292.5 0.515393 0.0949376
25.8419 307.5 2.04091 0.903973
25.8419 322.5 1.34291 0.842989
25.8419 337.5 4.2503 2.57604
25.8419 352.5 3.89437 3.15889
