Measurement E187M13
| Experiment: | e1e | |
|---|---|---|
| Year: | 2022 | |
| Spokespersons: | Y. Tian, R. W. Gothe V.I. Mokeev, and G. Hollis | |
| Reaction: | ed → π− p | |
| Polarization: | none | |
| Quantity: | dσ/dΩ (exclusive) | |
| Q2: | 0.7 GeV2 | |
| W: | 1.2125 GeV | |
| Publication: |
Y. Tian, R.W. Gothe, V.I. Mokeev and G. Hollis (For CLAS Collaboration) Exclusive π− Electroproduction off the Neutron in Deuterium in the Resonance Region //
CLAS-Notes 2021-101
|
|

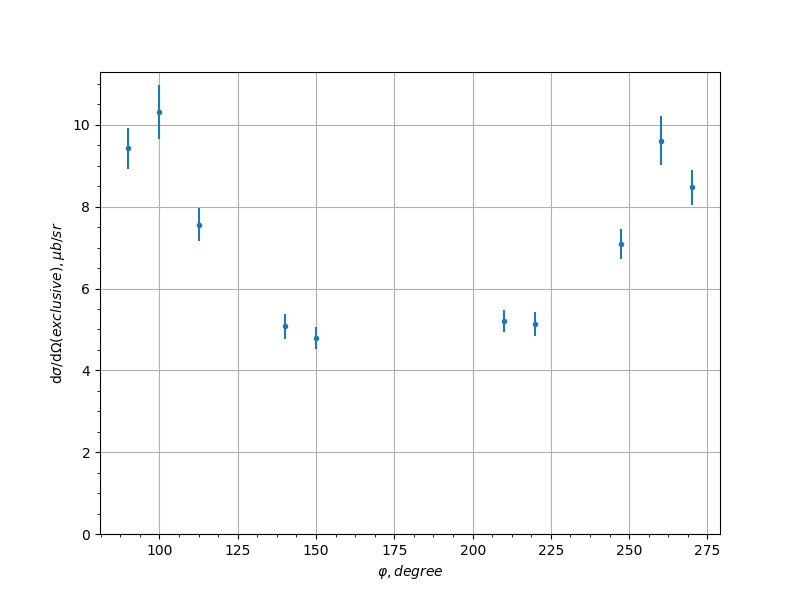

| cos(θ) | φ, [degree] | dσ/dΩ (exclusive), [μb/sr] | uncertainty | syst. uncert. |
|---|---|---|---|---|
| -0.9 | 90.0 | 9.42224 | 0.491065 | 0.974458 |
| -0.9 | 100.0 | 10.3178 | 0.651617 | 0.99241 |
| -0.9 | 112.5 | 7.56324 | 0.398466 | 0.707531 |
| -0.9 | 140.0 | 5.08068 | 0.306423 | 0.457821 |
| -0.9 | 150.0 | 4.78595 | 0.262944 | 0.436476 |
| -0.9 | 210.0 | 5.21496 | 0.268986 | 0.507405 |
| -0.9 | 220.0 | 5.12645 | 0.297074 | 0.501734 |
| -0.9 | 247.5 | 7.07873 | 0.368676 | 0.722935 |
| -0.9 | 260.0 | 9.61301 | 0.602878 | 1.02459 |
| -0.9 | 270.0 | 8.47046 | 0.437099 | 0.861347 |
| -0.7 | 60.0 | 8.46525 | 0.41663 | 0.73995 |
| -0.7 | 67.5 | 8.86158 | 0.387968 | 0.782696 |
| -0.7 | 90.0 | 7.86415 | 0.224454 | 0.614787 |
| -0.7 | 100.0 | 7.48318 | 0.253295 | 0.628417 |
| -0.7 | 112.5 | 6.59673 | 0.181609 | 0.515165 |
| -0.7 | 140.0 | 5.04439 | 0.176092 | 0.371481 |
| -0.7 | 150.0 | 4.51898 | 0.131967 | 0.338634 |
| -0.7 | 157.5 | 4.15925 | 0.16193 | 0.306864 |
| -0.7 | 180.0 | 3.5768 | 0.148607 | 0.306481 |
| -0.7 | 202.5 | 4.12313 | 0.175085 | 0.309689 |
| -0.7 | 210.0 | 4.35482 | 0.13968 | 0.321137 |
| -0.7 | 220.0 | 4.90192 | 0.181072 | 0.354239 |
| -0.7 | 247.5 | 6.15545 | 0.176232 | 0.480238 |
| -0.7 | 260.0 | 7.02497 | 0.238298 | 0.581796 |
| -0.7 | 270.0 | 7.43765 | 0.213671 | 0.605101 |
| -0.7 | 292.5 | 8.89323 | 0.41975 | 0.798034 |
| -0.7 | 300.0 | 8.52616 | 0.455827 | 0.734423 |
| -0.5 | 60.0 | 10.059 | 0.546553 | 0.857192 |
| -0.5 | 67.5 | 9.42974 | 0.39423 | 0.764509 |
| -0.5 | 90.0 | 8.75279 | 0.21979 | 0.618931 |
| -0.5 | 100.0 | 8.52762 | 0.240601 | 0.600425 |
| -0.5 | 112.5 | 7.75583 | 0.193753 | 0.540082 |
| -0.5 | 140.0 | 5.58412 | 0.174281 | 0.403638 |
| -0.5 | 150.0 | 4.84277 | 0.131061 | 0.338017 |
| -0.5 | 157.5 | 4.32296 | 0.148831 | 0.301209 |
| -0.5 | 180.0 | 3.8673 | 0.125465 | 0.266222 |
| -0.5 | 202.5 | 4.39467 | 0.140933 | 0.330442 |
| -0.5 | 210.0 | 4.7776 | 0.124337 | 0.346471 |
| -0.5 | 220.0 | 5.28045 | 0.171271 | 0.392271 |
| -0.5 | 247.5 | 7.59818 | 0.176947 | 0.530468 |
| -0.5 | 260.0 | 8.40536 | 0.224935 | 0.605725 |
| -0.5 | 270.0 | 8.5731 | 0.207354 | 0.617457 |
| -0.5 | 292.5 | 8.72581 | 0.432284 | 0.739902 |
| -0.5 | 300.0 | 9.53284 | 0.5527 | 0.854609 |
| -0.3 | 60.0 | 9.36415 | 0.463548 | 0.807602 |
| -0.3 | 67.5 | 9.22599 | 0.323127 | 0.73845 |
| -0.3 | 90.0 | 9.29614 | 0.200978 | 0.692197 |
| -0.3 | 100.0 | 9.01308 | 0.222526 | 0.664692 |
| -0.3 | 112.5 | 8.35248 | 0.192248 | 0.613823 |
| -0.3 | 140.0 | 6.08878 | 0.193347 | 0.444259 |
| -0.3 | 150.0 | 5.33039 | 0.135725 | 0.385112 |
| -0.3 | 157.5 | 4.73305 | 0.15284 | 0.338597 |
| -0.3 | 180.0 | 4.40899 | 0.136008 | 0.310326 |
| -0.3 | 202.5 | 5.13677 | 0.162166 | 0.351693 |
| -0.3 | 210.0 | 5.41001 | 0.14035 | 0.369259 |
| -0.3 | 220.0 | 5.99614 | 0.192141 | 0.416151 |
| -0.3 | 247.5 | 8.15814 | 0.199133 | 0.58205 |
| -0.3 | 260.0 | 9.17517 | 0.234578 | 0.679016 |
| -0.3 | 270.0 | 9.31284 | 0.204989 | 0.691099 |
| -0.3 | 292.5 | 8.91987 | 0.305654 | 0.788075 |
| -0.3 | 300.0 | 8.53602 | 0.404809 | 0.833538 |
| -0.1 | 60.0 | 9.6198 | 0.351906 | 0.710445 |
| -0.1 | 67.5 | 9.81254 | 0.273675 | 0.721999 |
| -0.1 | 90.0 | 10.2893 | 0.207524 | 0.769252 |
| -0.1 | 100.0 | 9.77661 | 0.245897 | 0.750782 |
| -0.1 | 112.5 | 8.78383 | 0.220532 | 0.668996 |
| -0.1 | 140.0 | 6.21259 | 0.211975 | 0.478171 |
| -0.1 | 150.0 | 5.54725 | 0.148281 | 0.401107 |
| -0.1 | 157.5 | 5.10284 | 0.167058 | 0.36399 |
| -0.1 | 180.0 | 4.5143 | 0.138234 | 0.308539 |
| -0.1 | 202.5 | 5.104 | 0.155444 | 0.361057 |
| -0.1 | 210.0 | 5.69747 | 0.141315 | 0.393488 |
| -0.1 | 220.0 | 6.61167 | 0.201452 | 0.463529 |
| -0.1 | 247.5 | 8.93561 | 0.213658 | 0.627703 |
| -0.1 | 260.0 | 9.66008 | 0.242771 | 0.689295 |
| -0.1 | 270.0 | 9.59212 | 0.196048 | 0.678048 |
| -0.1 | 292.5 | 8.62965 | 0.256348 | 0.625895 |
| -0.1 | 300.0 | 7.77616 | 0.296291 | 0.551599 |
| 0.1 | 60.0 | 8.82529 | 0.371516 | 0.665814 |
| 0.1 | 67.5 | 9.25463 | 0.29547 | 0.744016 |
| 0.1 | 90.0 | 10.2252 | 0.222821 | 0.824572 |
| 0.1 | 100.0 | 9.94926 | 0.263304 | 0.847011 |
| 0.1 | 112.5 | 8.96139 | 0.242157 | 0.739763 |
| 0.1 | 140.0 | 6.41944 | 0.23365 | 0.52863 |
| 0.1 | 150.0 | 5.37138 | 0.149178 | 0.422597 |
| 0.1 | 157.5 | 4.89358 | 0.155188 | 0.373169 |
| 0.1 | 180.0 | 4.50329 | 0.128378 | 0.333787 |
| 0.1 | 202.5 | 5.30179 | 0.150839 | 0.373652 |
| 0.1 | 210.0 | 5.73069 | 0.140655 | 0.403008 |
| 0.1 | 220.0 | 6.36883 | 0.210792 | 0.439434 |
| 0.1 | 247.5 | 9.07278 | 0.239163 | 0.661493 |
| 0.1 | 260.0 | 10.0844 | 0.255621 | 0.727704 |
| 0.1 | 270.0 | 10.1491 | 0.20617 | 0.723441 |
| 0.1 | 292.5 | 9.06288 | 0.247457 | 0.646237 |
| 0.1 | 300.0 | 8.31929 | 0.305805 | 0.591781 |
| 0.3 | 60.0 | 8.90667 | 0.395449 | 0.706228 |
| 0.3 | 67.5 | 9.02335 | 0.279931 | 0.691653 |
| 0.3 | 90.0 | 9.66873 | 0.220091 | 0.782658 |
| 0.3 | 100.0 | 9.22605 | 0.25446 | 0.759557 |
| 0.3 | 112.5 | 8.76426 | 0.256574 | 0.727359 |
| 0.3 | 140.0 | 6.53284 | 0.241613 | 0.508038 |
| 0.3 | 150.0 | 5.55863 | 0.152799 | 0.42079 |
| 0.3 | 157.5 | 4.96616 | 0.158196 | 0.383245 |
| 0.3 | 180.0 | 4.49826 | 0.126624 | 0.33512 |
| 0.3 | 202.5 | 5.17803 | 0.143549 | 0.376501 |
| 0.3 | 210.0 | 5.63722 | 0.139491 | 0.407543 |
| 0.3 | 220.0 | 6.61176 | 0.22424 | 0.486344 |
| 0.3 | 247.5 | 8.98461 | 0.249968 | 0.688466 |
| 0.3 | 260.0 | 9.56019 | 0.258767 | 0.730588 |
| 0.3 | 270.0 | 9.77191 | 0.213999 | 0.757362 |
| 0.3 | 292.5 | 8.69046 | 0.268544 | 0.688367 |
| 0.3 | 300.0 | 8.45316 | 0.340501 | 0.691189 |
| 0.5 | 60.0 | 7.91314 | 0.405229 | 0.589325 |
| 0.5 | 67.5 | 7.79641 | 0.276862 | 0.617514 |
| 0.5 | 90.0 | 9.11424 | 0.218693 | 0.740603 |
| 0.5 | 100.0 | 8.99242 | 0.252306 | 0.757216 |
| 0.5 | 112.5 | 9.40519 | 0.282578 | 0.811716 |
| 0.5 | 140.0 | 5.9458 | 0.256118 | 0.446632 |
| 0.5 | 150.0 | 5.22768 | 0.143135 | 0.374883 |
| 0.5 | 157.5 | 4.65402 | 0.140188 | 0.344385 |
| 0.5 | 180.0 | 4.3755 | 0.112236 | 0.320014 |
| 0.5 | 202.5 | 4.76232 | 0.128875 | 0.36401 |
| 0.5 | 210.0 | 5.18382 | 0.13794 | 0.405491 |
| 0.5 | 220.0 | 6.19271 | 0.252181 | 0.525126 |
| 0.5 | 247.5 | 8.4558 | 0.287355 | 0.715653 |
| 0.5 | 260.0 | 8.55453 | 0.246347 | 0.691727 |
| 0.5 | 270.0 | 8.99336 | 0.217196 | 0.687155 |
| 0.5 | 292.5 | 8.20198 | 0.279309 | 0.582416 |
| 0.5 | 300.0 | 8.57774 | 0.419591 | 0.573014 |
| 0.7 | 60.0 | 6.57179 | 0.437626 | 0.546446 |
| 0.7 | 67.5 | 6.83647 | 0.310703 | 0.667697 |
| 0.7 | 90.0 | 8.20484 | 0.245659 | 0.788973 |
| 0.7 | 100.0 | 8.36763 | 0.288587 | 0.843609 |
| 0.7 | 112.5 | 8.32734 | 0.297676 | 0.828925 |
| 0.7 | 140.0 | 5.8006 | 0.255548 | 0.491803 |
| 0.7 | 150.0 | 4.9761 | 0.154531 | 0.412134 |
| 0.7 | 157.5 | 4.60259 | 0.157976 | 0.367141 |
| 0.7 | 180.0 | 4.10007 | 0.129213 | 0.31473 |
| 0.7 | 202.5 | 4.78502 | 0.152437 | 0.346745 |
| 0.7 | 210.0 | 5.22132 | 0.150077 | 0.374209 |
| 0.7 | 220.0 | 6.37891 | 0.233047 | 0.492789 |
| 0.7 | 247.5 | 8.42035 | 0.288715 | 0.732761 |
| 0.7 | 260.0 | 8.05438 | 0.274883 | 0.651764 |
| 0.7 | 270.0 | 7.98318 | 0.237262 | 0.638656 |
| 0.7 | 292.5 | 6.62522 | 0.305962 | 0.552807 |
| 0.7 | 300.0 | 6.82969 | 0.454788 | 0.606504 |
| 0.9 | 30.0 | 4.16689 | 0.254235 | 0.347558 |
| 0.9 | 60.0 | 4.04924 | 0.185051 | 0.32852 |
| 0.9 | 67.5 | 4.17099 | 0.174264 | 0.366979 |
| 0.9 | 90.0 | 4.93344 | 0.148824 | 0.407828 |
| 0.9 | 100.0 | 5.35997 | 0.195948 | 0.444926 |
| 0.9 | 112.5 | 5.24247 | 0.168546 | 0.384941 |
| 0.9 | 140.0 | 5.01009 | 0.148236 | 0.380636 |
| 0.9 | 150.0 | 5.10994 | 0.115825 | 0.372373 |
| 0.9 | 157.5 | 5.22223 | 0.129963 | 0.389179 |
| 0.9 | 180.0 | 4.96298 | 0.130851 | 0.363646 |
| 0.9 | 202.5 | 4.68245 | 0.130253 | 0.347598 |
| 0.9 | 210.0 | 4.64235 | 0.112502 | 0.342625 |
| 0.9 | 220.0 | 4.61254 | 0.141617 | 0.346102 |
| 0.9 | 247.5 | 5.21998 | 0.156777 | 0.396563 |
| 0.9 | 260.0 | 6.06271 | 0.199222 | 0.503108 |
| 0.9 | 270.0 | 5.74499 | 0.155791 | 0.445753 |
| 0.9 | 292.5 | 5.21377 | 0.190577 | 0.384212 |
| 0.9 | 300.0 | 4.62001 | 0.199457 | 0.312716 |
| 0.9 | 330.0 | 3.66303 | 0.238584 | 0.264542 |
Experiment comment:
