Measurement E187M17
| Experiment: | e1e | |
|---|---|---|
| Year: | 2022 | |
| Spokespersons: | Y. Tian, R. W. Gothe V.I. Mokeev, and G. Hollis | |
| Reaction: | ed → π− p | |
| Polarization: | none | |
| Quantity: | dσ/dΩ (exclusive) | |
| Q2: | 0.9 GeV2 | |
| W: | 1.2375 GeV | |
| Publication: |
Y. Tian, R.W. Gothe, V.I. Mokeev and G. Hollis (For CLAS Collaboration) Exclusive π− Electroproduction off the Neutron in Deuterium in the Resonance Region //
CLAS-Notes 2021-101
|
|

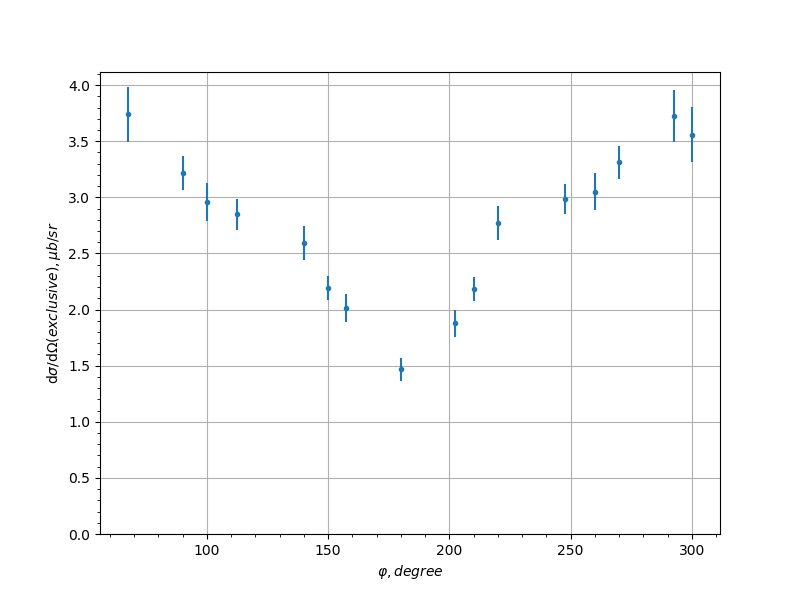

| cos(θ) | φ, [degree] | dσ/dΩ (exclusive), [μb/sr] | uncertainty | syst. uncert. |
|---|---|---|---|---|
| -0.7 | 67.5 | 3.73954 | 0.246755 | 0.290345 |
| -0.7 | 90.0 | 3.2201 | 0.150985 | 0.25294 |
| -0.7 | 100.0 | 2.95798 | 0.166693 | 0.242942 |
| -0.7 | 112.5 | 2.84853 | 0.138771 | 0.215339 |
| -0.7 | 140.0 | 2.59485 | 0.153951 | 0.189371 |
| -0.7 | 150.0 | 2.19242 | 0.11001 | 0.160531 |
| -0.7 | 157.5 | 2.01636 | 0.126218 | 0.161065 |
| -0.7 | 180.0 | 1.46648 | 0.10232 | 0.107828 |
| -0.7 | 202.5 | 1.87666 | 0.12002 | 0.135955 |
| -0.7 | 210.0 | 2.1857 | 0.107252 | 0.1597 |
| -0.7 | 220.0 | 2.77033 | 0.154101 | 0.204456 |
| -0.7 | 247.5 | 2.98523 | 0.137679 | 0.223456 |
| -0.7 | 260.0 | 3.05119 | 0.165842 | 0.235322 |
| -0.7 | 270.0 | 3.31207 | 0.148161 | 0.251291 |
| -0.7 | 292.5 | 3.72774 | 0.231119 | 0.286463 |
| -0.7 | 300.0 | 3.55852 | 0.245777 | 0.251503 |
| -0.5 | 60.0 | 4.89197 | 0.345407 | 0.393967 |
| -0.5 | 67.5 | 4.71119 | 0.289286 | 0.392569 |
| -0.5 | 90.0 | 3.65197 | 0.147416 | 0.281483 |
| -0.5 | 100.0 | 3.36951 | 0.159934 | 0.26411 |
| -0.5 | 112.5 | 3.48535 | 0.14349 | 0.249305 |
| -0.5 | 140.0 | 3.03537 | 0.163332 | 0.208255 |
| -0.5 | 150.0 | 2.4507 | 0.109789 | 0.162176 |
| -0.5 | 157.5 | 2.00139 | 0.113861 | 0.133314 |
| -0.5 | 180.0 | 1.59315 | 0.0889288 | 0.113712 |
| -0.5 | 202.5 | 1.75335 | 0.10333 | 0.133024 |
| -0.5 | 210.0 | 2.15667 | 0.0996991 | 0.157771 |
| -0.5 | 220.0 | 2.65261 | 0.145987 | 0.201541 |
| -0.5 | 247.5 | 3.55485 | 0.14361 | 0.275011 |
| -0.5 | 260.0 | 3.67009 | 0.183439 | 0.298142 |
| -0.5 | 270.0 | 3.88411 | 0.165395 | 0.302029 |
| -0.3 | 67.5 | 5.4841 | 0.375881 | 0.581575 |
| -0.3 | 90.0 | 4.67366 | 0.188008 | 0.42424 |
| -0.3 | 100.0 | 4.39961 | 0.207588 | 0.425408 |
| -0.3 | 112.5 | 4.10104 | 0.171842 | 0.373411 |
| -0.3 | 140.0 | 3.22255 | 0.179692 | 0.276215 |
| -0.3 | 150.0 | 2.61677 | 0.125971 | 0.210861 |
| -0.3 | 157.5 | 2.23223 | 0.134598 | 0.179041 |
| -0.3 | 180.0 | 1.63845 | 0.0949604 | 0.119481 |
| -0.3 | 202.5 | 1.92485 | 0.108233 | 0.135666 |
| -0.3 | 210.0 | 2.38067 | 0.106902 | 0.168113 |
| -0.3 | 220.0 | 3.21253 | 0.172908 | 0.223804 |
| -0.3 | 247.5 | 4.02733 | 0.166763 | 0.318869 |
| -0.3 | 260.0 | 4.35186 | 0.202642 | 0.365737 |
| -0.3 | 270.0 | 4.38073 | 0.176346 | 0.354302 |
| -0.3 | 292.5 | 4.65055 | 0.31922 | 0.429922 |
| -0.1 | 60.0 | 5.4612 | 0.356184 | 0.520773 |
| -0.1 | 67.5 | 5.44173 | 0.264472 | 0.504714 |
| -0.1 | 90.0 | 4.93858 | 0.167353 | 0.40279 |
| -0.1 | 100.0 | 4.51871 | 0.185424 | 0.367529 |
| -0.1 | 112.5 | 4.13196 | 0.170561 | 0.313291 |
| -0.1 | 140.0 | 3.23691 | 0.187663 | 0.26613 |
| -0.1 | 150.0 | 2.60226 | 0.118729 | 0.19697 |
| -0.1 | 157.5 | 2.21214 | 0.123003 | 0.168212 |
| -0.1 | 180.0 | 1.75684 | 0.0895593 | 0.133768 |
| -0.1 | 202.5 | 2.0454 | 0.129684 | 0.146511 |
| -0.1 | 210.0 | 2.42545 | 0.127957 | 0.177828 |
| -0.1 | 220.0 | 3.08553 | 0.213997 | 0.235154 |
| -0.1 | 247.5 | 4.28568 | 0.173016 | 0.343486 |
| -0.1 | 260.0 | 4.70776 | 0.189134 | 0.37134 |
| -0.1 | 270.0 | 4.85342 | 0.162481 | 0.390861 |
| -0.1 | 292.5 | 4.86143 | 0.236835 | 0.452828 |
| -0.1 | 300.0 | 4.63915 | 0.303972 | 0.485408 |
| 0.1 | 67.5 | 5.23007 | 0.288679 | 0.380477 |
| 0.1 | 90.0 | 5.18463 | 0.2007 | 0.386529 |
| 0.1 | 100.0 | 4.84237 | 0.245253 | 0.354975 |
| 0.1 | 112.5 | 4.37857 | 0.200743 | 0.368049 |
| 0.1 | 140.0 | 3.38097 | 0.198299 | 0.305346 |
| 0.1 | 150.0 | 2.76408 | 0.125079 | 0.216508 |
| 0.1 | 157.5 | 2.43266 | 0.132592 | 0.184215 |
| 0.1 | 180.0 | 2.0688 | 0.0989103 | 0.154728 |
| 0.1 | 202.5 | 2.62535 | 0.135449 | 0.201225 |
| 0.1 | 210.0 | 2.83102 | 0.122967 | 0.221336 |
| 0.1 | 220.0 | 3.3523 | 0.188243 | 0.288009 |
| 0.1 | 247.5 | 4.48972 | 0.19595 | 0.340814 |
| 0.1 | 260.0 | 5.36843 | 0.220803 | 0.416536 |
| 0.1 | 270.0 | 5.52903 | 0.183721 | 0.422205 |
| 0.1 | 292.5 | 5.49118 | 0.242308 | 0.457027 |
| 0.1 | 300.0 | 4.89816 | 0.299847 | 0.38691 |
| 0.3 | 60.0 | 4.85156 | 0.343078 | 0.446503 |
| 0.3 | 67.5 | 4.9026 | 0.25301 | 0.409514 |
| 0.3 | 90.0 | 5.02503 | 0.174543 | 0.390846 |
| 0.3 | 100.0 | 4.79871 | 0.198378 | 0.366345 |
| 0.3 | 112.5 | 4.38492 | 0.181122 | 0.345975 |
| 0.3 | 140.0 | 3.18954 | 0.193063 | 0.251744 |
| 0.3 | 150.0 | 2.91682 | 0.141035 | 0.21779 |
| 0.3 | 157.5 | 2.68793 | 0.161375 | 0.191031 |
| 0.3 | 180.0 | 2.38102 | 0.120358 | 0.182617 |
| 0.3 | 202.5 | 2.77743 | 0.145717 | 0.223463 |
| 0.3 | 210.0 | 3.0422 | 0.133618 | 0.243643 |
| 0.3 | 220.0 | 3.63115 | 0.207386 | 0.339114 |
| 0.3 | 247.5 | 4.793 | 0.190329 | 0.389992 |
| 0.3 | 260.0 | 5.15361 | 0.233394 | 0.396173 |
| 0.3 | 270.0 | 5.07208 | 0.191889 | 0.384773 |
| 0.3 | 292.5 | 4.42626 | 0.288994 | 0.337425 |
| 0.5 | 67.5 | 4.73501 | 0.255895 | 0.39207 |
| 0.5 | 90.0 | 4.61776 | 0.163057 | 0.376355 |
| 0.5 | 100.0 | 4.36293 | 0.178207 | 0.360451 |
| 0.5 | 112.5 | 4.17976 | 0.177281 | 0.345012 |
| 0.5 | 140.0 | 3.74903 | 0.234008 | 0.368603 |
| 0.5 | 150.0 | 3.15282 | 0.142469 | 0.251141 |
| 0.5 | 157.5 | 2.8457 | 0.148121 | 0.220959 |
| 0.5 | 180.0 | 2.38901 | 0.111804 | 0.172388 |
| 0.5 | 202.5 | 2.82842 | 0.146653 | 0.212198 |
| 0.5 | 210.0 | 3.08038 | 0.13942 | 0.241593 |
| 0.5 | 220.0 | 3.77112 | 0.224796 | 0.341954 |
| 0.5 | 247.5 | 4.78491 | 0.189145 | 0.433432 |
| 0.5 | 260.0 | 5.0396 | 0.190716 | 0.443688 |
| 0.5 | 270.0 | 5.06318 | 0.179042 | 0.424046 |
| 0.5 | 292.5 | 4.50034 | 0.279289 | 0.345682 |
| 0.7 | 67.5 | 4.33218 | 0.292604 | 0.324404 |
| 0.7 | 90.0 | 4.85001 | 0.199421 | 0.431818 |
| 0.7 | 100.0 | 4.76371 | 0.218042 | 0.463925 |
| 0.7 | 112.5 | 4.82213 | 0.226205 | 0.526299 |
| 0.7 | 140.0 | 4.48991 | 0.271214 | 0.417077 |
| 0.7 | 150.0 | 3.75281 | 0.174422 | 0.31019 |
| 0.7 | 157.5 | 3.51801 | 0.184127 | 0.289488 |
| 0.7 | 180.0 | 2.87432 | 0.158356 | 0.223887 |
| 0.7 | 202.5 | 3.1871 | 0.20455 | 0.274678 |
| 0.7 | 210.0 | 3.52786 | 0.190375 | 0.296132 |
| 0.7 | 220.0 | 4.11885 | 0.288502 | 0.402564 |
| 0.7 | 247.5 | 4.7494 | 0.245951 | 0.522252 |
| 0.7 | 260.0 | 4.41668 | 0.229483 | 0.421138 |
| 0.7 | 270.0 | 4.571 | 0.208313 | 0.416624 |
| 0.7 | 292.5 | 4.08457 | 0.279537 | 0.297755 |
| 0.9 | 60.0 | 4.15645 | 0.297849 | 0.315405 |
| 0.9 | 67.5 | 4.28768 | 0.247783 | 0.339844 |
| 0.9 | 90.0 | 4.67804 | 0.200018 | 0.396021 |
| 0.9 | 100.0 | 4.91356 | 0.246274 | 0.452346 |
| 0.9 | 112.5 | 4.16912 | 0.215522 | 0.345507 |
| 0.9 | 140.0 | 3.10592 | 0.141542 | 0.236383 |
| 0.9 | 150.0 | 2.97488 | 0.103832 | 0.215898 |
| 0.9 | 157.5 | 2.93668 | 0.107851 | 0.215061 |
| 0.9 | 180.0 | 2.69939 | 0.109377 | 0.194837 |
| 0.9 | 202.5 | 2.74844 | 0.116426 | 0.212408 |
| 0.9 | 210.0 | 2.86039 | 0.106573 | 0.22804 |
| 0.9 | 220.0 | 3.00822 | 0.141323 | 0.255868 |
| 0.9 | 247.5 | 3.88422 | 0.209956 | 0.369793 |
| 0.9 | 260.0 | 4.48944 | 0.27618 | 0.461897 |
| 0.9 | 270.0 | 4.41075 | 0.220128 | 0.397826 |
| 0.9 | 292.5 | 4.42255 | 0.268058 | 0.344274 |
| 0.9 | 300.0 | 4.25043 | 0.305499 | 0.320977 |
Experiment comment:
