Measurement E187M80
| Experiment: | e1e | |
|---|---|---|
| Year: | 2022 | |
| Spokespersons: | Y. Tian, R. W. Gothe V.I. Mokeev, and G. Hollis | |
| Reaction: | ed → π− p | |
| Polarization: | none | |
| Quantity: | dσ/dΩ (quasi-free) | |
| Q2: | 0.5 GeV2 | |
| W: | 1.1625 GeV | |
| Publication: |
Y. Tian, R.W. Gothe, V.I. Mokeev and G. Hollis (For CLAS Collaboration) Exclusive π− Electroproduction off the Neutron in Deuterium in the Resonance Region //
CLAS-Notes 2021-101
|
|

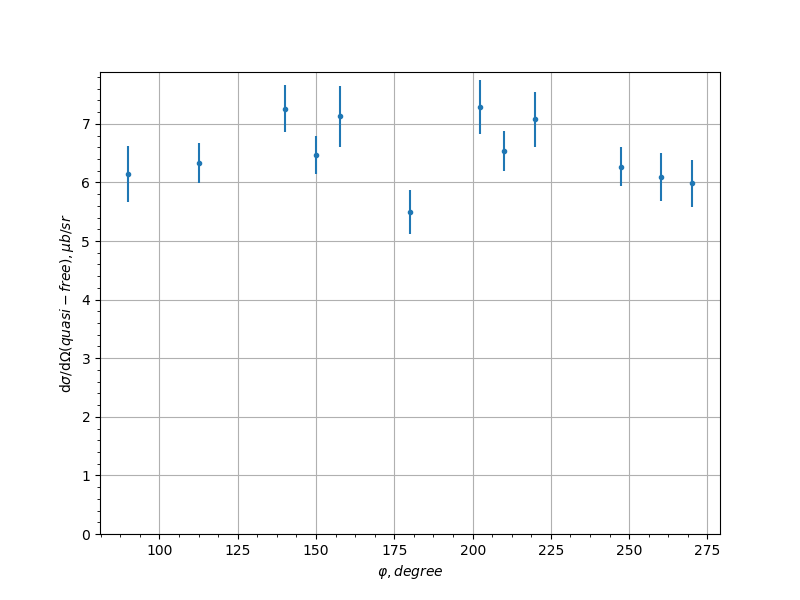

| cos(θ) | φ, [degree] | dσ/dΩ (quasi-free), [μb/sr] | uncertainty | syst. uncert. |
|---|---|---|---|---|
| -0.7 | 90.0 | 6.14128 | 0.481371 | 0.56245 |
| -0.7 | 112.5 | 6.33247 | 0.348639 | 0.58348 |
| -0.7 | 140.0 | 7.26116 | 0.407269 | 0.646956 |
| -0.7 | 150.0 | 6.46739 | 0.32987 | 0.572613 |
| -0.7 | 157.5 | 7.12602 | 0.524298 | 0.60373 |
| -0.7 | 180.0 | 5.48831 | 0.375656 | 0.466377 |
| -0.7 | 202.5 | 7.29248 | 0.46024 | 0.605181 |
| -0.7 | 210.0 | 6.53761 | 0.338945 | 0.535782 |
| -0.7 | 220.0 | 7.0745 | 0.468843 | 0.597506 |
| -0.7 | 247.5 | 6.26837 | 0.337423 | 0.626776 |
| -0.7 | 260.0 | 6.09267 | 0.415523 | 0.754893 |
| -0.7 | 270.0 | 5.98383 | 0.396503 | 0.746202 |
| -0.5 | 90.0 | 6.84556 | 0.249242 | 0.545652 |
| -0.5 | 100.0 | 7.0879 | 0.267823 | 0.568421 |
| -0.5 | 112.5 | 7.23345 | 0.236685 | 0.576732 |
| -0.5 | 140.0 | 7.70403 | 0.383124 | 0.581895 |
| -0.5 | 150.0 | 6.74225 | 0.250366 | 0.499322 |
| -0.5 | 157.5 | 6.43077 | 0.318836 | 0.504177 |
| -0.5 | 180.0 | 5.27978 | 0.214907 | 0.385152 |
| -0.5 | 202.5 | 5.83328 | 0.296399 | 0.413553 |
| -0.5 | 210.0 | 5.98965 | 0.244326 | 0.457214 |
| -0.5 | 220.0 | 6.81108 | 0.383396 | 0.557639 |
| -0.5 | 247.5 | 7.10491 | 0.241126 | 0.573669 |
| -0.5 | 260.0 | 6.96728 | 0.26863 | 0.554095 |
| -0.5 | 270.0 | 6.75437 | 0.250181 | 0.536801 |
| -0.3 | 67.5 | 5.3415 | 0.347032 | 0.426336 |
| -0.3 | 90.0 | 6.66556 | 0.226041 | 0.462085 |
| -0.3 | 100.0 | 6.81754 | 0.248955 | 0.471035 |
| -0.3 | 112.5 | 7.25106 | 0.248803 | 0.508888 |
| -0.3 | 140.0 | 7.04958 | 0.32162 | 0.538437 |
| -0.3 | 150.0 | 6.37606 | 0.224793 | 0.460177 |
| -0.3 | 157.5 | 6.01037 | 0.261356 | 0.447633 |
| -0.3 | 180.0 | 5.557 | 0.220438 | 0.403636 |
| -0.3 | 202.5 | 6.3761 | 0.273289 | 0.455577 |
| -0.3 | 210.0 | 6.69079 | 0.230955 | 0.486004 |
| -0.3 | 220.0 | 7.65231 | 0.335356 | 0.566918 |
| -0.3 | 247.5 | 7.91838 | 0.262948 | 0.580428 |
| -0.3 | 260.0 | 7.69747 | 0.266189 | 0.568091 |
| -0.3 | 270.0 | 7.30239 | 0.233298 | 0.537732 |
| -0.3 | 292.5 | 5.71881 | 0.329773 | 0.4301 |
| -0.1 | 60.0 | 6.22043 | 0.495064 | 0.505413 |
| -0.1 | 67.5 | 6.56743 | 0.319553 | 0.535876 |
| -0.1 | 90.0 | 7.67594 | 0.226777 | 0.581294 |
| -0.1 | 100.0 | 7.85887 | 0.261722 | 0.592705 |
| -0.1 | 112.5 | 7.70229 | 0.269731 | 0.583464 |
| -0.1 | 140.0 | 7.04394 | 0.322413 | 0.581914 |
| -0.1 | 150.0 | 6.70082 | 0.217168 | 0.497495 |
| -0.1 | 157.5 | 6.59024 | 0.239005 | 0.47302 |
| -0.1 | 180.0 | 5.69867 | 0.204479 | 0.383746 |
| -0.1 | 202.5 | 5.71947 | 0.250745 | 0.39482 |
| -0.1 | 210.0 | 5.99043 | 0.22334 | 0.416829 |
| -0.1 | 220.0 | 6.66382 | 0.341478 | 0.501398 |
| -0.1 | 247.5 | 7.54221 | 0.277298 | 0.541946 |
| -0.1 | 260.0 | 7.54324 | 0.26832 | 0.544644 |
| -0.1 | 270.0 | 7.16055 | 0.232416 | 0.511517 |
| -0.1 | 292.5 | 5.82403 | 0.315798 | 0.424607 |
| 0.1 | 60.0 | 5.45081 | 0.423385 | 0.431011 |
| 0.1 | 67.5 | 6.5796 | 0.311849 | 0.479436 |
| 0.1 | 90.0 | 7.93858 | 0.249496 | 0.58987 |
| 0.1 | 100.0 | 8.48297 | 0.304878 | 0.641362 |
| 0.1 | 112.5 | 8.41072 | 0.340922 | 0.646245 |
| 0.1 | 140.0 | 6.40953 | 0.371977 | 0.518377 |
| 0.1 | 150.0 | 6.33896 | 0.231728 | 0.452744 |
| 0.1 | 157.5 | 6.07279 | 0.241672 | 0.428551 |
| 0.1 | 180.0 | 6.23707 | 0.204289 | 0.426543 |
| 0.1 | 202.5 | 6.47866 | 0.226462 | 0.448616 |
| 0.1 | 210.0 | 6.58672 | 0.213593 | 0.44799 |
| 0.1 | 220.0 | 6.73438 | 0.315839 | 0.48611 |
| 0.1 | 247.5 | 7.91403 | 0.286584 | 0.572421 |
| 0.1 | 260.0 | 8.05875 | 0.264055 | 0.617571 |
| 0.1 | 270.0 | 7.87296 | 0.225631 | 0.604213 |
| 0.1 | 292.5 | 6.78695 | 0.311926 | 0.518591 |
| 0.1 | 300.0 | 6.65364 | 0.482354 | 0.515604 |
| 0.3 | 67.5 | 4.97147 | 0.330536 | 0.417298 |
| 0.3 | 90.0 | 6.98114 | 0.261208 | 0.565751 |
| 0.3 | 100.0 | 7.42622 | 0.323334 | 0.612526 |
| 0.3 | 112.5 | 7.98111 | 0.352373 | 0.649917 |
| 0.3 | 140.0 | 5.13717 | 0.272709 | 0.437097 |
| 0.3 | 150.0 | 5.65407 | 0.208973 | 0.417987 |
| 0.3 | 157.5 | 5.56792 | 0.214841 | 0.408083 |
| 0.3 | 180.0 | 5.96857 | 0.220732 | 0.434362 |
| 0.3 | 202.5 | 6.11848 | 0.225269 | 0.460883 |
| 0.3 | 210.0 | 6.17589 | 0.216948 | 0.456378 |
| 0.3 | 220.0 | 6.38074 | 0.305395 | 0.477491 |
| 0.3 | 247.5 | 7.02674 | 0.370635 | 0.572093 |
| 0.3 | 260.0 | 6.97236 | 0.322635 | 0.523994 |
| 0.3 | 270.0 | 6.58197 | 0.26259 | 0.489906 |
| 0.3 | 292.5 | 5.23541 | 0.313104 | 0.379908 |
| 0.5 | 67.5 | 5.74587 | 0.35179 | 0.465265 |
| 0.5 | 90.0 | 6.99191 | 0.347694 | 0.617352 |
| 0.5 | 100.0 | 7.37432 | 0.436283 | 0.691317 |
| 0.5 | 112.5 | 6.50367 | 0.447049 | 0.52485 |
| 0.5 | 140.0 | 4.8011 | 0.261697 | 0.342394 |
| 0.5 | 150.0 | 5.19823 | 0.192139 | 0.38519 |
| 0.5 | 157.5 | 5.19956 | 0.207851 | 0.40505 |
| 0.5 | 180.0 | 5.764 | 0.208143 | 0.481144 |
| 0.5 | 202.5 | 5.37251 | 0.229689 | 0.433098 |
| 0.5 | 210.0 | 5.28375 | 0.208296 | 0.41722 |
| 0.5 | 220.0 | 4.60536 | 0.293435 | 0.361805 |
| 0.5 | 247.5 | 6.33485 | 0.413898 | 0.541075 |
| 0.5 | 260.0 | 7.45579 | 0.42635 | 0.606057 |
| 0.5 | 270.0 | 6.76611 | 0.340681 | 0.536922 |
| 0.5 | 292.5 | 5.40234 | 0.360884 | 0.422135 |
| 0.7 | 90.0 | 4.6988 | 0.315709 | 0.508571 |
| 0.7 | 100.0 | 5.13299 | 0.368106 | 0.57245 |
| 0.7 | 112.5 | 4.73094 | 0.267868 | 0.49335 |
| 0.7 | 140.0 | 4.82049 | 0.21398 | 0.362225 |
| 0.7 | 150.0 | 4.59451 | 0.195404 | 0.344649 |
| 0.7 | 157.5 | 4.66165 | 0.232101 | 0.348931 |
| 0.7 | 180.0 | 4.54708 | 0.272142 | 0.367825 |
| 0.7 | 202.5 | 4.84868 | 0.240103 | 0.369286 |
| 0.7 | 210.0 | 4.95323 | 0.224494 | 0.397567 |
| 0.7 | 220.0 | 4.95984 | 0.294631 | 0.406635 |
| 0.7 | 247.5 | 5.02903 | 0.338955 | 0.428416 |
| 0.7 | 260.0 | 4.67958 | 0.335681 | 0.366337 |
| 0.7 | 270.0 | 4.39313 | 0.292785 | 0.340583 |
| 0.9 | 67.5 | 2.6557 | 0.205734 | 0.227721 |
| 0.9 | 90.0 | 3.7491 | 0.189588 | 0.323647 |
| 0.9 | 100.0 | 4.26321 | 0.234966 | 0.39706 |
| 0.9 | 112.5 | 4.89226 | 0.221842 | 0.438171 |
| 0.9 | 140.0 | 4.82793 | 0.193147 | 0.406922 |
| 0.9 | 150.0 | 4.72265 | 0.154436 | 0.397096 |
| 0.9 | 157.5 | 4.52696 | 0.177923 | 0.371807 |
| 0.9 | 180.0 | 4.6273 | 0.215704 | 0.382185 |
| 0.9 | 202.5 | 4.60753 | 0.221052 | 0.375783 |
| 0.9 | 210.0 | 4.58534 | 0.177879 | 0.377899 |
| 0.9 | 220.0 | 4.44096 | 0.209612 | 0.374307 |
| 0.9 | 247.5 | 4.32241 | 0.183748 | 0.368053 |
| 0.9 | 260.0 | 4.23414 | 0.211302 | 0.350112 |
| 0.9 | 270.0 | 3.98436 | 0.169816 | 0.315696 |
| 0.9 | 292.5 | 3.25364 | 0.214952 | 0.2574 |
| 0.9 | 300.0 | 2.99167 | 0.240276 | 0.243347 |
Experiment comment:
