Measurement E187M83
| Experiment: | e1e | |
|---|---|---|
| Year: | 2022 | |
| Spokespersons: | Y. Tian, R. W. Gothe V.I. Mokeev, and G. Hollis | |
| Reaction: | ed → π− p | |
| Polarization: | none | |
| Quantity: | dσ/dΩ (quasi-free) | |
| Q2: | 0.5 GeV2 | |
| W: | 1.1875 GeV | |
| Publication: |
Y. Tian, R.W. Gothe, V.I. Mokeev and G. Hollis (For CLAS Collaboration) Exclusive π− Electroproduction off the Neutron in Deuterium in the Resonance Region //
CLAS-Notes 2021-101
|
|

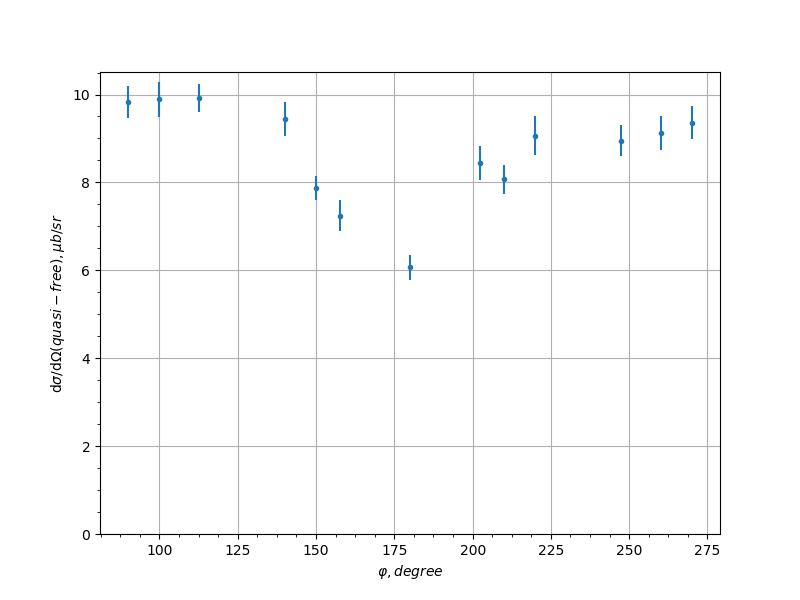

| cos(θ) | φ, [degree] | dσ/dΩ (quasi-free), [μb/sr] | uncertainty | syst. uncert. |
|---|---|---|---|---|
| -0.7 | 90.0 | 9.82892 | 0.371619 | 0.765663 |
| -0.7 | 100.0 | 9.88697 | 0.400231 | 0.759334 |
| -0.7 | 112.5 | 9.91755 | 0.315282 | 0.729741 |
| -0.7 | 140.0 | 9.44267 | 0.38578 | 0.678772 |
| -0.7 | 150.0 | 7.87187 | 0.272575 | 0.602842 |
| -0.7 | 157.5 | 7.24431 | 0.344785 | 0.608375 |
| -0.7 | 180.0 | 6.07425 | 0.284137 | 0.56124 |
| -0.7 | 202.5 | 8.44941 | 0.383886 | 0.726785 |
| -0.7 | 210.0 | 8.06996 | 0.326717 | 0.631235 |
| -0.7 | 220.0 | 9.06692 | 0.450643 | 0.687561 |
| -0.7 | 247.5 | 8.95138 | 0.347408 | 0.741577 |
| -0.7 | 260.0 | 9.12452 | 0.393573 | 0.800949 |
| -0.7 | 270.0 | 9.35344 | 0.374446 | 0.849592 |
| -0.5 | 67.5 | 11.0122 | 0.726962 | 0.992344 |
| -0.5 | 90.0 | 10.2615 | 0.294927 | 0.756903 |
| -0.5 | 100.0 | 10.1906 | 0.310781 | 0.752744 |
| -0.5 | 112.5 | 10.1007 | 0.270586 | 0.720575 |
| -0.5 | 140.0 | 9.43808 | 0.331362 | 0.670544 |
| -0.5 | 150.0 | 7.96605 | 0.22881 | 0.542811 |
| -0.5 | 157.5 | 7.34442 | 0.272181 | 0.508605 |
| -0.5 | 180.0 | 6.09468 | 0.232028 | 0.436868 |
| -0.5 | 202.5 | 7.74104 | 0.307823 | 0.539644 |
| -0.5 | 210.0 | 8.44491 | 0.249894 | 0.580112 |
| -0.5 | 220.0 | 10.3113 | 0.346525 | 0.676448 |
| -0.5 | 247.5 | 10.4536 | 0.279643 | 0.760937 |
| -0.5 | 260.0 | 10.064 | 0.314335 | 0.778648 |
| -0.5 | 270.0 | 9.84035 | 0.292627 | 0.766237 |
| -0.5 | 292.5 | 7.78532 | 0.556842 | 0.735145 |
| -0.3 | 67.5 | 10.3657 | 0.489894 | 0.876224 |
| -0.3 | 90.0 | 11.1217 | 0.297586 | 0.925702 |
| -0.3 | 100.0 | 11.4487 | 0.330686 | 0.938509 |
| -0.3 | 112.5 | 11.3105 | 0.309914 | 0.926714 |
| -0.3 | 140.0 | 9.52215 | 0.335319 | 0.682651 |
| -0.3 | 150.0 | 8.56321 | 0.225304 | 0.592321 |
| -0.3 | 157.5 | 7.61439 | 0.246608 | 0.522281 |
| -0.3 | 180.0 | 7.12086 | 0.20343 | 0.496425 |
| -0.3 | 202.5 | 7.72654 | 0.25012 | 0.538678 |
| -0.3 | 210.0 | 8.20966 | 0.218434 | 0.571334 |
| -0.3 | 220.0 | 9.02744 | 0.318204 | 0.645824 |
| -0.3 | 247.5 | 10.7563 | 0.305118 | 0.829005 |
| -0.3 | 260.0 | 11.4184 | 0.345997 | 0.87955 |
| -0.3 | 270.0 | 10.7389 | 0.303059 | 0.810197 |
| -0.3 | 292.5 | 9.38011 | 0.487895 | 0.737047 |
| -0.1 | 60.0 | 9.71486 | 0.461037 | 0.817663 |
| -0.1 | 67.5 | 10.9856 | 0.37678 | 0.935578 |
| -0.1 | 90.0 | 12.5011 | 0.280669 | 1.10634 |
| -0.1 | 100.0 | 12.7773 | 0.344408 | 1.18721 |
| -0.1 | 112.5 | 12.5053 | 0.338884 | 1.13025 |
| -0.1 | 140.0 | 9.33997 | 0.342559 | 0.730645 |
| -0.1 | 150.0 | 8.2606 | 0.227314 | 0.597387 |
| -0.1 | 157.5 | 7.28531 | 0.237991 | 0.52147 |
| -0.1 | 180.0 | 7.22735 | 0.20929 | 0.502347 |
| -0.1 | 202.5 | 7.96337 | 0.26088 | 0.552441 |
| -0.1 | 210.0 | 8.51834 | 0.237364 | 0.605608 |
| -0.1 | 220.0 | 9.04932 | 0.353608 | 0.70496 |
| -0.1 | 247.5 | 11.7044 | 0.347131 | 0.909326 |
| -0.1 | 260.0 | 12.2754 | 0.359553 | 0.920407 |
| -0.1 | 270.0 | 11.9233 | 0.281865 | 0.879447 |
| -0.1 | 292.5 | 10.3573 | 0.347633 | 0.780284 |
| -0.1 | 300.0 | 9.1564 | 0.414792 | 0.745837 |
| 0.1 | 60.0 | 9.69273 | 0.447404 | 0.781717 |
| 0.1 | 67.5 | 10.8349 | 0.369796 | 0.927545 |
| 0.1 | 90.0 | 12.3018 | 0.293471 | 1.11484 |
| 0.1 | 100.0 | 12.5174 | 0.370708 | 1.20715 |
| 0.1 | 112.5 | 11.7656 | 0.397258 | 1.10867 |
| 0.1 | 140.0 | 8.20432 | 0.38119 | 0.713077 |
| 0.1 | 150.0 | 7.98903 | 0.249042 | 0.595243 |
| 0.1 | 157.5 | 7.50738 | 0.251826 | 0.541037 |
| 0.1 | 180.0 | 7.50153 | 0.211118 | 0.557097 |
| 0.1 | 202.5 | 8.00661 | 0.24163 | 0.589957 |
| 0.1 | 210.0 | 8.38149 | 0.237317 | 0.612603 |
| 0.1 | 220.0 | 8.74484 | 0.381784 | 0.664756 |
| 0.1 | 247.5 | 12.0354 | 0.383292 | 1.05276 |
| 0.1 | 260.0 | 12.6371 | 0.360072 | 1.11987 |
| 0.1 | 270.0 | 11.981 | 0.289526 | 0.987517 |
| 0.1 | 292.5 | 9.77519 | 0.36254 | 0.738052 |
| 0.1 | 300.0 | 8.53338 | 0.452806 | 0.607045 |
| 0.3 | 60.0 | 8.50964 | 0.543247 | 0.796143 |
| 0.3 | 67.5 | 9.28103 | 0.417116 | 0.864284 |
| 0.3 | 90.0 | 11.4544 | 0.327512 | 1.08501 |
| 0.3 | 100.0 | 11.8623 | 0.395128 | 1.12795 |
| 0.3 | 112.5 | 12.2754 | 0.440768 | 1.15531 |
| 0.3 | 140.0 | 7.87443 | 0.335853 | 0.70424 |
| 0.3 | 150.0 | 7.66799 | 0.216823 | 0.566512 |
| 0.3 | 157.5 | 7.18577 | 0.214469 | 0.543877 |
| 0.3 | 180.0 | 7.30433 | 0.201707 | 0.528073 |
| 0.3 | 202.5 | 7.75264 | 0.236076 | 0.571849 |
| 0.3 | 210.0 | 8.05217 | 0.232697 | 0.576821 |
| 0.3 | 220.0 | 8.48442 | 0.363478 | 0.676895 |
| 0.3 | 247.5 | 11.7659 | 0.441352 | 1.00685 |
| 0.3 | 260.0 | 12.3715 | 0.396894 | 1.15169 |
| 0.3 | 270.0 | 11.8042 | 0.311943 | 1.07648 |
| 0.3 | 292.5 | 9.95705 | 0.372506 | 0.877258 |
| 0.3 | 300.0 | 8.57933 | 0.461149 | 0.741655 |
| 0.5 | 60.0 | 6.78764 | 0.528732 | 0.57366 |
| 0.5 | 67.5 | 7.83938 | 0.38005 | 0.687643 |
| 0.5 | 90.0 | 10.1819 | 0.332909 | 0.894148 |
| 0.5 | 100.0 | 10.9561 | 0.408919 | 1.00657 |
| 0.5 | 112.5 | 11.1059 | 0.491694 | 1.12158 |
| 0.5 | 140.0 | 6.83224 | 0.344948 | 0.652409 |
| 0.5 | 150.0 | 7.0112 | 0.225604 | 0.533832 |
| 0.5 | 157.5 | 6.8215 | 0.228898 | 0.52333 |
| 0.5 | 180.0 | 6.86746 | 0.206583 | 0.503177 |
| 0.5 | 202.5 | 6.90144 | 0.218966 | 0.485482 |
| 0.5 | 210.0 | 7.08117 | 0.21544 | 0.491558 |
| 0.5 | 220.0 | 7.29064 | 0.320631 | 0.524517 |
| 0.5 | 247.5 | 11.0208 | 0.475277 | 0.850091 |
| 0.5 | 260.0 | 11.3721 | 0.411796 | 0.877758 |
| 0.5 | 270.0 | 10.6893 | 0.34098 | 0.808422 |
| 0.5 | 292.5 | 8.58518 | 0.405598 | 0.637198 |
| 0.5 | 300.0 | 7.38448 | 0.566121 | 0.583632 |
| 0.7 | 67.5 | 7.67766 | 0.615424 | 0.847935 |
| 0.7 | 90.0 | 8.14709 | 0.435287 | 0.908201 |
| 0.7 | 100.0 | 8.72285 | 0.537398 | 0.994707 |
| 0.7 | 112.5 | 7.23543 | 0.442632 | 0.855295 |
| 0.7 | 140.0 | 6.68485 | 0.296444 | 0.602151 |
| 0.7 | 150.0 | 6.71577 | 0.22209 | 0.554256 |
| 0.7 | 157.5 | 6.70837 | 0.23544 | 0.542478 |
| 0.7 | 180.0 | 6.05089 | 0.251937 | 0.528691 |
| 0.7 | 202.5 | 6.10627 | 0.246816 | 0.488172 |
| 0.7 | 210.0 | 6.25012 | 0.22077 | 0.469256 |
| 0.7 | 220.0 | 6.89377 | 0.280264 | 0.4852 |
| 0.7 | 247.5 | 7.19377 | 0.375825 | 0.598802 |
| 0.7 | 260.0 | 7.77529 | 0.476468 | 0.856927 |
| 0.7 | 270.0 | 7.15891 | 0.390416 | 0.815641 |
| 0.7 | 292.5 | 6.49577 | 0.572239 | 0.733072 |
| 0.9 | 60.0 | 4.2355 | 0.262668 | 0.333419 |
| 0.9 | 67.5 | 4.51324 | 0.227929 | 0.358917 |
| 0.9 | 90.0 | 5.5839 | 0.21117 | 0.462194 |
| 0.9 | 100.0 | 5.94807 | 0.276223 | 0.520289 |
| 0.9 | 112.5 | 5.92816 | 0.251516 | 0.481113 |
| 0.9 | 140.0 | 5.93343 | 0.22208 | 0.48587 |
| 0.9 | 150.0 | 6.06667 | 0.182258 | 0.504904 |
| 0.9 | 157.5 | 6.20783 | 0.211733 | 0.528165 |
| 0.9 | 180.0 | 6.29856 | 0.237558 | 0.536842 |
| 0.9 | 202.5 | 6.33025 | 0.216413 | 0.493917 |
| 0.9 | 210.0 | 6.12886 | 0.177185 | 0.472627 |
| 0.9 | 220.0 | 6.03049 | 0.209276 | 0.46084 |
| 0.9 | 247.5 | 5.55381 | 0.234391 | 0.425855 |
| 0.9 | 260.0 | 5.7152 | 0.298038 | 0.430225 |
| 0.9 | 270.0 | 5.24266 | 0.22321 | 0.379676 |
| 0.9 | 292.5 | 4.51294 | 0.258431 | 0.311542 |
| 0.9 | 300.0 | 3.90705 | 0.25092 | 0.266072 |
Experiment comment:
