Measurement E187M89
| Experiment: | e1e | |
|---|---|---|
| Year: | 2022 | |
| Spokespersons: | Y. Tian, R. W. Gothe V.I. Mokeev, and G. Hollis | |
| Reaction: | ed → π− p | |
| Polarization: | none | |
| Quantity: | dσ/dΩ (quasi-free) | |
| Q2: | 0.5 GeV2 | |
| W: | 1.2375 GeV | |
| Publication: |
Y. Tian, R.W. Gothe, V.I. Mokeev and G. Hollis (For CLAS Collaboration) Exclusive π− Electroproduction off the Neutron in Deuterium in the Resonance Region //
CLAS-Notes 2021-101
|
|

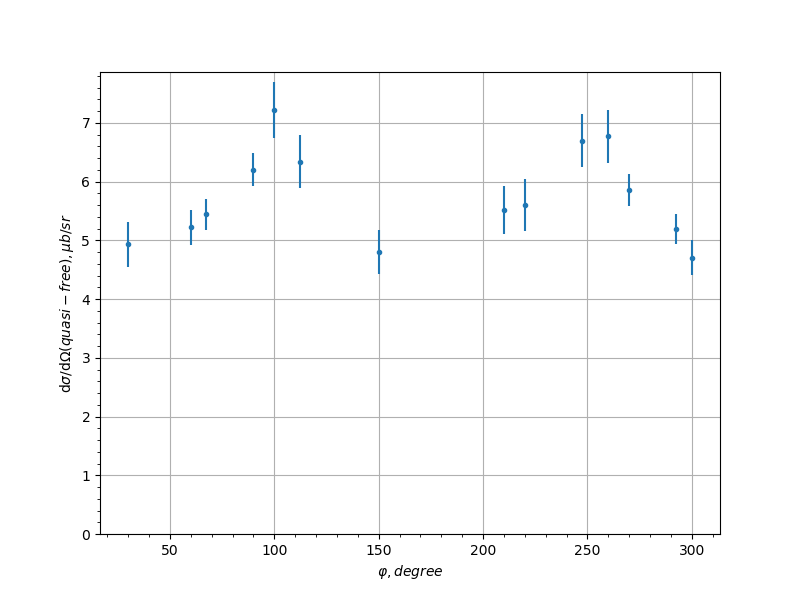

| cos(θ) | φ, [degree] | dσ/dΩ (quasi-free), [μb/sr] | uncertainty | syst. uncert. |
|---|---|---|---|---|
| -0.9 | 30.0 | 4.93229 | 0.386136 | 0.589249 |
| -0.9 | 60.0 | 5.2213 | 0.292675 | 0.446607 |
| -0.9 | 67.5 | 5.4448 | 0.266394 | 0.456899 |
| -0.9 | 90.0 | 6.20061 | 0.281802 | 0.475955 |
| -0.9 | 100.0 | 7.22375 | 0.477263 | 0.562757 |
| -0.9 | 112.5 | 6.34182 | 0.444828 | 0.508568 |
| -0.9 | 150.0 | 4.79941 | 0.377085 | 0.455811 |
| -0.9 | 210.0 | 5.51953 | 0.412861 | 0.446793 |
| -0.9 | 220.0 | 5.60177 | 0.443763 | 0.452395 |
| -0.9 | 247.5 | 6.69619 | 0.455181 | 0.558751 |
| -0.9 | 260.0 | 6.76877 | 0.455703 | 0.537758 |
| -0.9 | 270.0 | 5.86026 | 0.271956 | 0.501963 |
| -0.9 | 292.5 | 5.19759 | 0.254362 | 0.511402 |
| -0.9 | 300.0 | 4.7063 | 0.304556 | 0.52384 |
| -0.7 | 30.0 | 5.11113 | 0.26229 | 0.413553 |
| -0.7 | 60.0 | 6.42687 | 0.247042 | 0.503466 |
| -0.7 | 67.5 | 6.88133 | 0.257654 | 0.541161 |
| -0.7 | 90.0 | 7.29366 | 0.257959 | 0.57856 |
| -0.7 | 100.0 | 7.67839 | 0.364788 | 0.724322 |
| -0.7 | 112.5 | 6.6994 | 0.253885 | 0.547317 |
| -0.7 | 140.0 | 5.37031 | 0.239444 | 0.395506 |
| -0.7 | 150.0 | 4.69605 | 0.181511 | 0.348774 |
| -0.7 | 157.5 | 4.44089 | 0.239956 | 0.362859 |
| -0.7 | 180.0 | 3.67652 | 0.198628 | 0.313985 |
| -0.7 | 202.5 | 4.085 | 0.245841 | 0.295485 |
| -0.7 | 210.0 | 4.48502 | 0.185361 | 0.322705 |
| -0.7 | 220.0 | 4.94285 | 0.239135 | 0.361043 |
| -0.7 | 247.5 | 6.71161 | 0.231925 | 0.53452 |
| -0.7 | 260.0 | 7.63018 | 0.319119 | 0.638107 |
| -0.7 | 270.0 | 6.92663 | 0.233099 | 0.511298 |
| -0.7 | 292.5 | 6.07111 | 0.251904 | 0.470818 |
| -0.7 | 300.0 | 5.52639 | 0.234242 | 0.434705 |
| -0.7 | 330.0 | 4.35199 | 0.246221 | 0.333586 |
| -0.5 | 30.0 | 5.27392 | 0.289648 | 0.404456 |
| -0.5 | 60.0 | 8.04568 | 0.33155 | 0.625191 |
| -0.5 | 67.5 | 8.08445 | 0.314338 | 0.626967 |
| -0.5 | 90.0 | 8.78477 | 0.278214 | 0.7808 |
| -0.5 | 100.0 | 8.56675 | 0.328072 | 0.852227 |
| -0.5 | 112.5 | 8.33484 | 0.271477 | 0.773134 |
| -0.5 | 140.0 | 6.39923 | 0.256145 | 0.53933 |
| -0.5 | 150.0 | 5.22766 | 0.174762 | 0.388108 |
| -0.5 | 157.5 | 4.62777 | 0.196524 | 0.349528 |
| -0.5 | 180.0 | 3.88555 | 0.185923 | 0.325494 |
| -0.5 | 202.5 | 4.43442 | 0.219761 | 0.36467 |
| -0.5 | 210.0 | 5.06294 | 0.186466 | 0.395005 |
| -0.5 | 220.0 | 5.75411 | 0.234141 | 0.453949 |
| -0.5 | 247.5 | 8.41642 | 0.266 | 0.670544 |
| -0.5 | 260.0 | 9.23367 | 0.335593 | 0.751822 |
| -0.5 | 270.0 | 9.04471 | 0.287684 | 0.690832 |
| -0.5 | 292.5 | 8.65952 | 0.355572 | 0.637177 |
| -0.5 | 300.0 | 8.12227 | 0.363529 | 0.615282 |
| -0.5 | 330.0 | 5.91553 | 0.323888 | 0.472508 |
| -0.3 | 60.0 | 10.4092 | 0.634155 | 1.06357 |
| -0.3 | 67.5 | 9.61206 | 0.473074 | 0.99886 |
| -0.3 | 90.0 | 9.85081 | 0.374518 | 1.22037 |
| -0.3 | 100.0 | 9.55291 | 0.432362 | 1.18123 |
| -0.3 | 112.5 | 9.19143 | 0.393802 | 1.16273 |
| -0.3 | 140.0 | 6.48669 | 0.319772 | 0.709546 |
| -0.3 | 150.0 | 5.29429 | 0.224725 | 0.490749 |
| -0.3 | 157.5 | 4.69256 | 0.246475 | 0.425237 |
| -0.3 | 180.0 | 4.15824 | 0.196778 | 0.344478 |
| -0.3 | 202.5 | 4.98482 | 0.231718 | 0.396627 |
| -0.3 | 210.0 | 5.65747 | 0.225268 | 0.451829 |
| -0.3 | 220.0 | 6.59652 | 0.340006 | 0.5998 |
| -0.3 | 247.5 | 9.9021 | 0.378509 | 0.946178 |
| -0.3 | 260.0 | 10.4039 | 0.387429 | 1.02802 |
| -0.3 | 270.0 | 10.4098 | 0.353354 | 1.0719 |
| -0.3 | 292.5 | 9.37357 | 0.500775 | 1.03001 |
| -0.3 | 300.0 | 9.22629 | 0.757006 | 1.06672 |
| -0.1 | 60.0 | 10.5415 | 0.533887 | 1.10689 |
| -0.1 | 67.5 | 11.1397 | 0.461909 | 1.14136 |
| -0.1 | 90.0 | 12.2148 | 0.413004 | 1.53192 |
| -0.1 | 100.0 | 12.0706 | 0.586172 | 1.76929 |
| -0.1 | 112.5 | 11.8864 | 0.593341 | 2.23621 |
| -0.1 | 140.0 | 8.43906 | 0.469932 | 1.37765 |
| -0.1 | 150.0 | 6.58974 | 0.247741 | 0.685382 |
| -0.1 | 157.5 | 5.70841 | 0.243731 | 0.51564 |
| -0.1 | 180.0 | 4.79107 | 0.180737 | 0.399728 |
| -0.1 | 202.5 | 5.50188 | 0.265917 | 0.45951 |
| -0.1 | 210.0 | 6.45061 | 0.262961 | 0.521654 |
| -0.1 | 220.0 | 8.02159 | 0.493503 | 0.749343 |
| -0.1 | 247.5 | 12.8902 | 0.577673 | 1.46825 |
| -0.1 | 260.0 | 13.2552 | 0.595081 | 1.52628 |
| -0.1 | 270.0 | 12.5566 | 0.395635 | 1.31441 |
| -0.1 | 292.5 | 10.8715 | 0.43309 | 1.12015 |
| -0.1 | 300.0 | 9.86053 | 0.473528 | 1.01169 |
| 0.1 | 60.0 | 11.1871 | 0.560388 | 1.2596 |
| 0.1 | 67.5 | 12.4904 | 0.54215 | 1.47016 |
| 0.1 | 90.0 | 14.2718 | 0.481436 | 2.339 |
| 0.1 | 100.0 | 15.5688 | 0.772214 | 3.71696 |
| 0.1 | 112.5 | 15.5192 | 0.788919 | 4.79308 |
| 0.1 | 140.0 | 9.8003 | 0.643828 | 1.98804 |
| 0.1 | 150.0 | 7.04172 | 0.272946 | 0.666334 |
| 0.1 | 157.5 | 6.05903 | 0.258582 | 0.49269 |
| 0.1 | 180.0 | 5.18986 | 0.177745 | 0.400406 |
| 0.1 | 202.5 | 6.22282 | 0.268166 | 0.514181 |
| 0.1 | 210.0 | 7.04608 | 0.275267 | 0.599314 |
| 0.1 | 220.0 | 9.07581 | 0.625651 | 1.20405 |
| 0.1 | 247.5 | 15.8699 | 0.938986 | 3.60767 |
| 0.1 | 260.0 | 16.9843 | 0.872987 | 3.29291 |
| 0.1 | 270.0 | 15.0762 | 0.494707 | 2.06427 |
| 0.1 | 292.5 | 12.8386 | 0.468982 | 1.33881 |
| 0.1 | 300.0 | 11.1819 | 0.491536 | 1.12079 |
| 0.3 | 60.0 | 12.9338 | 0.691854 | 1.77624 |
| 0.3 | 67.5 | 14.3464 | 0.600381 | 2.20932 |
| 0.3 | 90.0 | 16.6198 | 0.5361 | 3.35397 |
| 0.3 | 100.0 | 17.9529 | 0.788016 | 4.86326 |
| 0.3 | 112.5 | 18.703 | 1.02283 | 6.44736 |
| 0.3 | 140.0 | 11.1906 | 0.867027 | 2.49216 |
| 0.3 | 150.0 | 7.66365 | 0.322877 | 0.861439 |
| 0.3 | 157.5 | 6.62067 | 0.290982 | 0.667565 |
| 0.3 | 180.0 | 5.44602 | 0.189452 | 0.489013 |
| 0.3 | 202.5 | 6.26052 | 0.257212 | 0.505639 |
| 0.3 | 210.0 | 6.98433 | 0.264899 | 0.613242 |
| 0.3 | 220.0 | 9.9043 | 0.647198 | 1.4962 |
| 0.3 | 247.5 | 16.9914 | 0.841004 | 4.37772 |
| 0.3 | 260.0 | 17.2904 | 0.794071 | 3.49776 |
| 0.3 | 270.0 | 16.1943 | 0.51574 | 2.28985 |
| 0.3 | 292.5 | 13.9309 | 0.579495 | 1.48518 |
| 0.3 | 300.0 | 12.7563 | 0.626375 | 1.19774 |
| 0.5 | 60.0 | 11.2721 | 0.666832 | 1.40912 |
| 0.5 | 67.5 | 13.1189 | 0.585214 | 1.95645 |
| 0.5 | 90.0 | 14.7081 | 0.544324 | 2.66843 |
| 0.5 | 100.0 | 16.2099 | 0.829843 | 3.84333 |
| 0.5 | 112.5 | 16.1649 | 1.01148 | 4.82729 |
| 0.5 | 140.0 | 11.0181 | 0.680944 | 2.49795 |
| 0.5 | 150.0 | 7.13674 | 0.26038 | 0.753941 |
| 0.5 | 157.5 | 6.43129 | 0.251253 | 0.639945 |
| 0.5 | 180.0 | 5.59218 | 0.184441 | 0.452222 |
| 0.5 | 202.5 | 7.01841 | 0.272365 | 0.561871 |
| 0.5 | 210.0 | 7.8206 | 0.282174 | 0.681391 |
| 0.5 | 220.0 | 12.0049 | 0.696549 | 2.09979 |
| 0.5 | 247.5 | 16.63 | 0.986068 | 4.27805 |
| 0.5 | 260.0 | 15.5252 | 0.790711 | 2.9535 |
| 0.5 | 270.0 | 15.2037 | 0.542157 | 2.25823 |
| 0.5 | 292.5 | 13.7925 | 0.599503 | 1.65483 |
| 0.5 | 300.0 | 13.0161 | 0.717358 | 1.31613 |
| 0.7 | 60.0 | 9.55376 | 0.740296 | 1.02487 |
| 0.7 | 67.5 | 10.9983 | 0.618497 | 1.37126 |
| 0.7 | 90.0 | 13.6364 | 0.5504 | 2.02868 |
| 0.7 | 100.0 | 15.8677 | 0.80108 | 2.96228 |
| 0.7 | 112.5 | 19.0621 | 1.05701 | 4.31062 |
| 0.7 | 140.0 | 10.3182 | 0.58077 | 1.53243 |
| 0.7 | 150.0 | 6.91149 | 0.277712 | 0.649085 |
| 0.7 | 157.5 | 6.13857 | 0.267842 | 0.58275 |
| 0.7 | 180.0 | 5.45901 | 0.214883 | 0.446659 |
| 0.7 | 202.5 | 6.66417 | 0.287437 | 0.543966 |
| 0.7 | 210.0 | 7.29303 | 0.292805 | 0.585663 |
| 0.7 | 220.0 | 9.72568 | 0.603665 | 1.13408 |
| 0.7 | 247.5 | 16.4955 | 0.95248 | 3.30003 |
| 0.7 | 260.0 | 14.2903 | 0.74393 | 2.05412 |
| 0.7 | 270.0 | 12.0819 | 0.510401 | 1.39951 |
| 0.7 | 292.5 | 9.56458 | 0.564731 | 0.865533 |
| 0.7 | 300.0 | 7.77913 | 0.648432 | 0.691433 |
| 0.9 | 30.0 | 7.2922 | 0.55986 | 0.589858 |
| 0.9 | 60.0 | 7.83025 | 0.360313 | 0.642784 |
| 0.9 | 67.5 | 8.12743 | 0.311132 | 0.682073 |
| 0.9 | 90.0 | 9.26249 | 0.264987 | 0.834519 |
| 0.9 | 100.0 | 9.93789 | 0.34945 | 0.954938 |
| 0.9 | 112.5 | 9.17251 | 0.319393 | 0.920811 |
| 0.9 | 140.0 | 7.75856 | 0.261054 | 0.763121 |
| 0.9 | 150.0 | 7.1528 | 0.205524 | 0.691292 |
| 0.9 | 157.5 | 7.1078 | 0.232441 | 0.680333 |
| 0.9 | 180.0 | 6.53232 | 0.245235 | 0.622043 |
| 0.9 | 202.5 | 7.26268 | 0.231525 | 0.653387 |
| 0.9 | 210.0 | 7.33175 | 0.205517 | 0.6426 |
| 0.9 | 220.0 | 7.7619 | 0.261512 | 0.677818 |
| 0.9 | 247.5 | 9.08705 | 0.330283 | 0.797213 |
| 0.9 | 260.0 | 10.1974 | 0.410791 | 0.919996 |
| 0.9 | 270.0 | 9.23197 | 0.302797 | 0.770743 |
| 0.9 | 292.5 | 8.30214 | 0.375896 | 0.647873 |
| 0.9 | 300.0 | 7.4249 | 0.378203 | 0.588177 |
| 0.9 | 330.0 | 7.54859 | 0.472945 | 0.619811 |
| 0.9 | 337.5 | 8.14604 | 0.66553 | 0.585747 |
Experiment comment:
