Measurement E213M1026
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 3.5 — 4.2 GeV2 | |
| W: | 1.65 — 1.675 GeV | |
| Ebeam: | 5.754 GeV | |

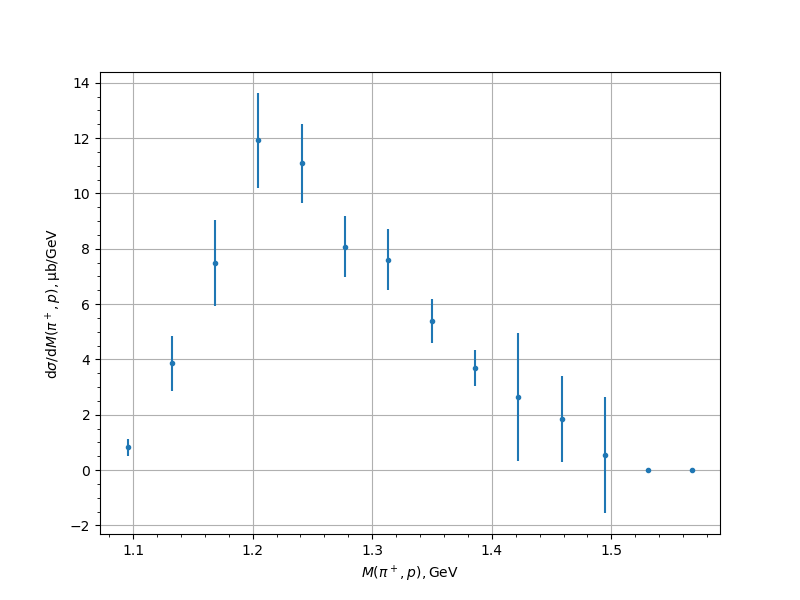

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.09597 | 0.8186 | 0.1018 | 0.2038 | 0.3012 |
| 1.132227 | 3.8587 | 0.3137 | 0.6974 | 0.9907 |
| 1.168483 | 7.4831 | 0.5358 | 1.097 | 1.5506 |
| 1.204739 | 11.9125 | 0.8596 | 1.4843 | 1.7153 |
| 1.240995 | 11.0893 | 0.644 | 1.2809 | 1.4336 |
| 1.277252 | 8.0701 | 0.5692 | 0.9387 | 1.0978 |
| 1.313508 | 7.6075 | 0.6625 | 0.8686 | 1.0924 |
| 1.349764 | 5.3936 | 0.4426 | 0.6446 | 0.7819 |
| 1.38602 | 3.6932 | 0.3052 | 0.4652 | 0.6651 |
| 1.422277 | 2.654 | 0.2855 | 0.3626 | 2.3141 |
| 1.458533 | 1.8486 | 0.2315 | 0.2962 | 1.5599 |
| 1.494789 | 0.5414 | 0.086 | 0.1285 | 2.0899 |
| 1.531046 | 0.0129 | 0.0051 | 0.0077 | 0.0093 |
| 1.567302 | 0.0 | 0.0021 | 0.0 | 0.0 |
Experiment comment:
