Measurement E213M1033
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 3.5 — 4.2 GeV2 | |
| W: | 1.675 — 1.7 GeV | |
| Ebeam: | 5.754 GeV | |

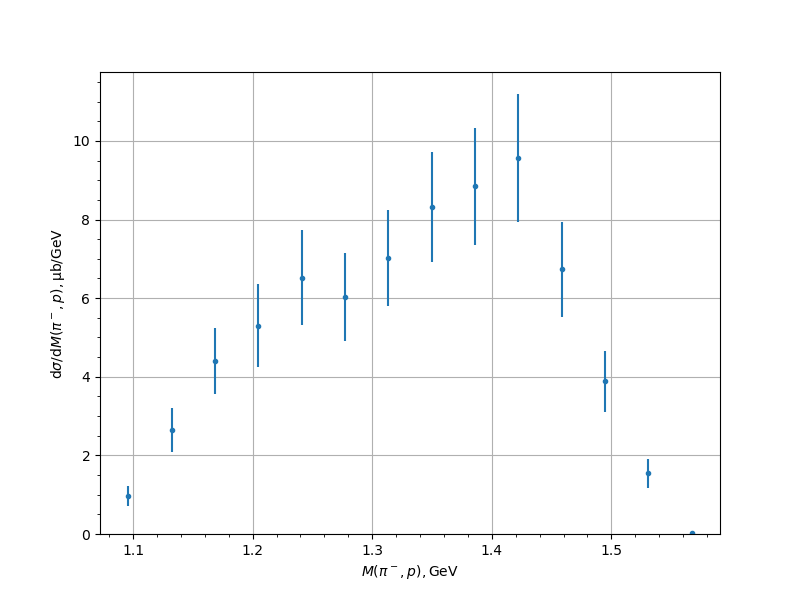

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.09597 | 0.9664 | 0.1711 | 0.1855 | 0.2524 |
| 1.132227 | 2.6546 | 0.3303 | 0.4488 | 0.5572 |
| 1.168483 | 4.3934 | 0.3669 | 0.7523 | 0.837 |
| 1.204739 | 5.3036 | 0.4299 | 0.959 | 1.0509 |
| 1.240995 | 6.5248 | 0.4226 | 1.1395 | 1.2153 |
| 1.277252 | 6.0381 | 0.3884 | 1.0537 | 1.123 |
| 1.313508 | 7.0195 | 0.4272 | 1.146 | 1.2231 |
| 1.349764 | 8.3088 | 0.5328 | 1.2911 | 1.3968 |
| 1.38602 | 8.8432 | 0.5477 | 1.3888 | 1.4929 |
| 1.422277 | 9.5617 | 0.7489 | 1.4499 | 1.6319 |
| 1.458533 | 6.7354 | 0.5407 | 1.0841 | 1.2114 |
| 1.494789 | 3.8889 | 0.311 | 0.7089 | 0.7741 |
| 1.531046 | 1.5405 | 0.2383 | 0.2867 | 0.3728 |
| 1.567302 | 0.0192 | 0.006 | 0.0093 | 0.011 |
Experiment comment:
