Measurement E213M1051
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 3.5 — 4.2 GeV2 | |
| W: | 1.725 — 1.75 GeV | |
| Ebeam: | 5.754 GeV | |

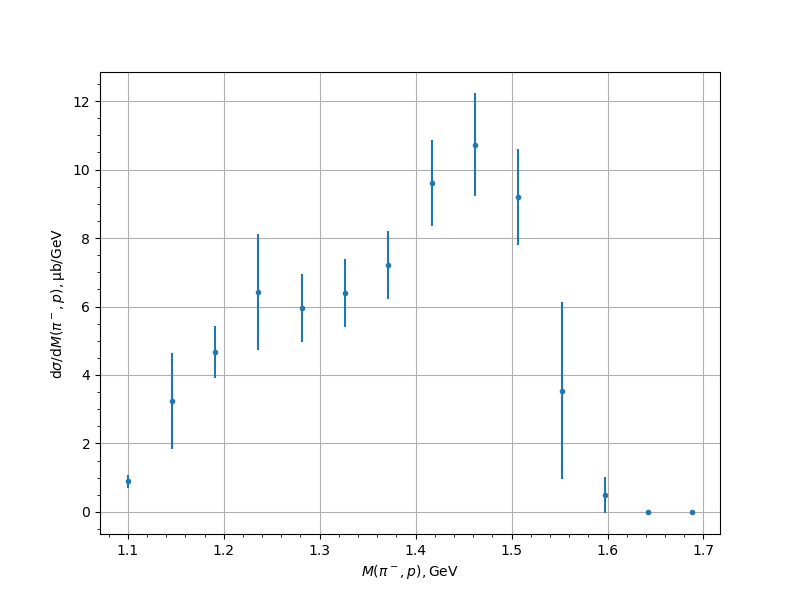

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.100435 | 0.8901 | 0.1235 | 0.1426 | 0.1886 |
| 1.145619 | 3.2471 | 0.3246 | 0.4461 | 1.3977 |
| 1.190804 | 4.6682 | 0.3079 | 0.7013 | 0.7659 |
| 1.235989 | 6.4129 | 0.4109 | 0.9372 | 1.6938 |
| 1.281174 | 5.9504 | 0.4228 | 0.8919 | 0.9871 |
| 1.326359 | 6.4021 | 0.498 | 0.8539 | 0.9885 |
| 1.371544 | 7.2074 | 0.4199 | 0.9055 | 0.9981 |
| 1.416728 | 9.6002 | 0.5099 | 1.1517 | 1.2595 |
| 1.461913 | 10.7284 | 0.6644 | 1.3545 | 1.5087 |
| 1.507098 | 9.207 | 0.7264 | 1.2007 | 1.4034 |
| 1.552283 | 3.5429 | 0.5153 | 0.6208 | 2.5908 |
| 1.597468 | 0.4991 | 0.1201 | 0.1025 | 0.5301 |
| 1.642653 | 0.0 | 0.0 | 0.0 | 0.0 |
| 1.687837 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
