Measurement E213M1060
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 3.5 — 4.2 GeV2 | |
| W: | 1.75 — 1.775 GeV | |
| Ebeam: | 5.754 GeV | |

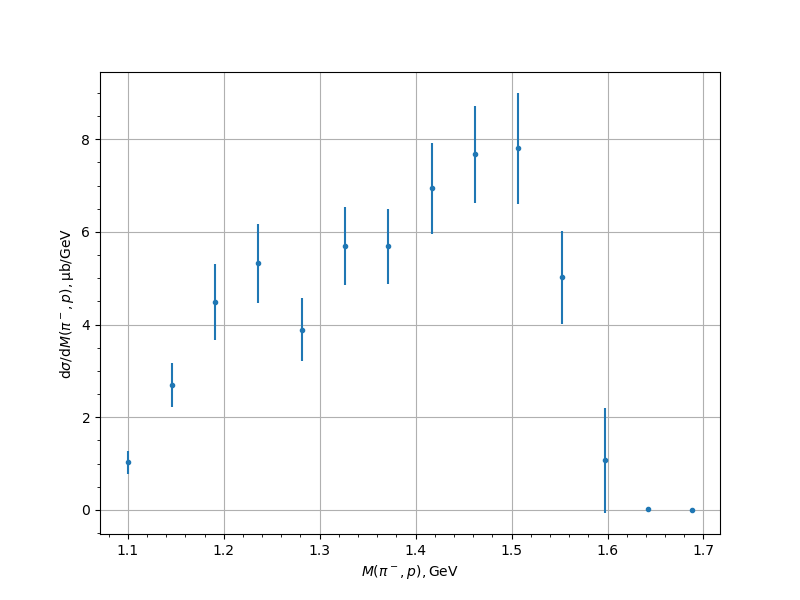

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.100435 | 1.0322 | 0.1924 | 0.156 | 0.2477 |
| 1.145619 | 2.6996 | 0.2706 | 0.3846 | 0.4703 |
| 1.190804 | 4.4926 | 0.4871 | 0.6566 | 0.8175 |
| 1.235989 | 5.3189 | 0.3375 | 0.78 | 0.8499 |
| 1.281174 | 3.8883 | 0.2366 | 0.6391 | 0.6815 |
| 1.326359 | 5.697 | 0.434 | 0.7296 | 0.849 |
| 1.371544 | 5.6922 | 0.4111 | 0.6948 | 0.8074 |
| 1.416728 | 6.9411 | 0.415 | 0.8847 | 0.9772 |
| 1.461913 | 7.6741 | 0.4113 | 0.9689 | 1.0525 |
| 1.507098 | 7.8044 | 0.6771 | 0.9844 | 1.1948 |
| 1.552283 | 5.0182 | 0.5264 | 0.6813 | 0.9959 |
| 1.597468 | 1.0688 | 0.118 | 0.2055 | 1.1368 |
| 1.642653 | 0.0254 | 0.0105 | 0.0085 | 0.0135 |
| 1.687837 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
