Measurement E213M1062
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 3.5 — 4.2 GeV2 | |
| W: | 1.75 — 1.775 GeV | |
| Ebeam: | 5.754 GeV | |

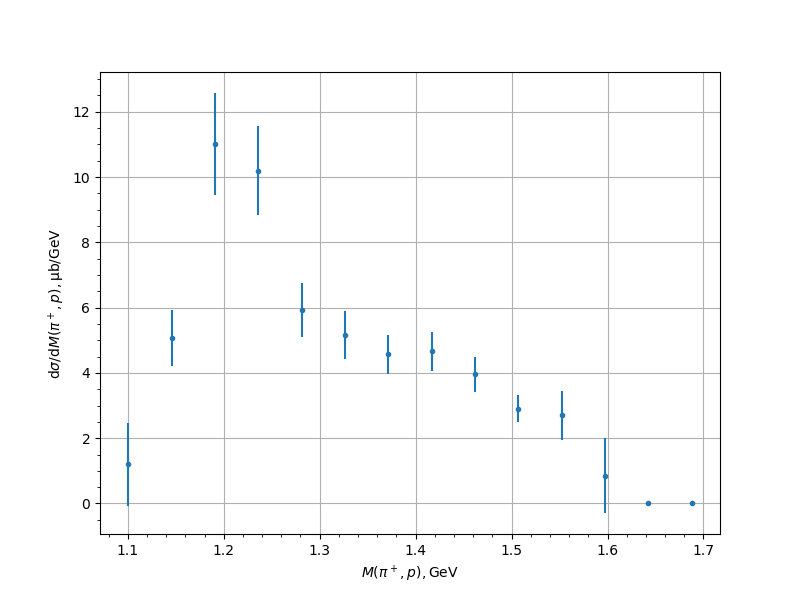

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.100435 | 1.2063 | 0.1357 | 0.2646 | 1.2719 |
| 1.145619 | 5.0664 | 0.4054 | 0.7698 | 0.87 |
| 1.190804 | 11.0149 | 0.7864 | 1.3464 | 1.5592 |
| 1.235989 | 10.1868 | 0.7067 | 1.1662 | 1.3637 |
| 1.281174 | 5.928 | 0.4247 | 0.6956 | 0.815 |
| 1.326359 | 5.1525 | 0.4582 | 0.5668 | 0.7289 |
| 1.371544 | 4.5645 | 0.3201 | 0.4909 | 0.586 |
| 1.416728 | 4.6567 | 0.3506 | 0.4859 | 0.5992 |
| 1.461913 | 3.9583 | 0.3341 | 0.4097 | 0.5286 |
| 1.507098 | 2.9068 | 0.2896 | 0.3112 | 0.4251 |
| 1.552283 | 2.6985 | 0.296 | 0.2984 | 0.7585 |
| 1.597468 | 0.8532 | 0.1461 | 0.1357 | 1.145 |
| 1.642653 | 0.0052 | 0.0032 | 0.0031 | 0.0044 |
| 1.687837 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
