Measurement E213M1089
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 3.5 — 4.2 GeV2 | |
| W: | 1.825 — 1.85 GeV | |
| Ebeam: | 5.754 GeV | |

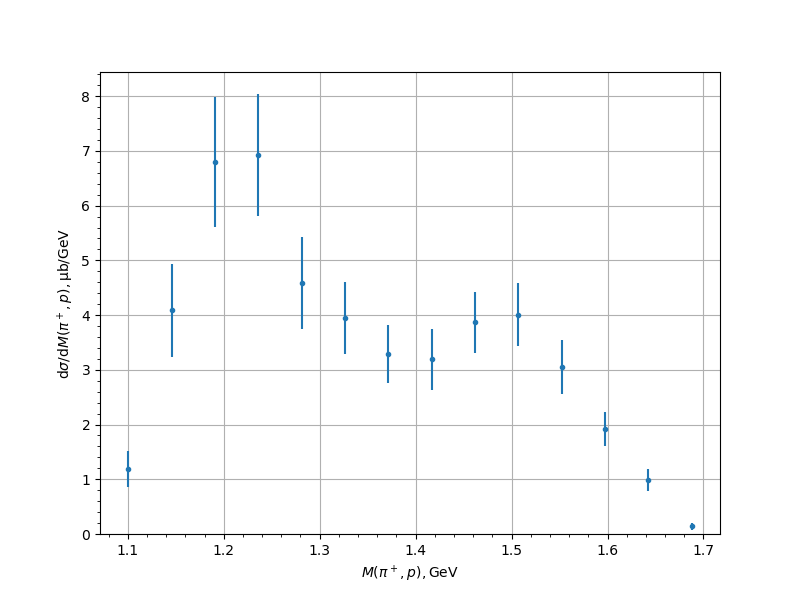

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.100435 | 1.1874 | 0.1131 | 0.3036 | 0.3239 |
| 1.145619 | 4.0869 | 0.301 | 0.7894 | 0.8448 |
| 1.190804 | 6.7923 | 0.5586 | 1.0495 | 1.1888 |
| 1.235989 | 6.9308 | 0.4959 | 0.9957 | 1.1123 |
| 1.281174 | 4.58 | 0.477 | 0.6945 | 0.8425 |
| 1.326359 | 3.9478 | 0.339 | 0.5593 | 0.6541 |
| 1.371544 | 3.2969 | 0.2711 | 0.4544 | 0.5291 |
| 1.416728 | 3.191 | 0.3764 | 0.4175 | 0.5621 |
| 1.461913 | 3.8687 | 0.3197 | 0.4576 | 0.5583 |
| 1.507098 | 4.0086 | 0.3556 | 0.459 | 0.5806 |
| 1.552283 | 3.0546 | 0.3289 | 0.3644 | 0.4909 |
| 1.597468 | 1.9158 | 0.201 | 0.2405 | 0.3134 |
| 1.642653 | 0.9877 | 0.1326 | 0.16 | 0.2078 |
| 1.687837 | 0.1384 | 0.0285 | 0.0525 | 0.0597 |
Experiment comment:
