Measurement E213M1105
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 3.5 — 4.2 GeV2 | |
| W: | 1.875 — 1.9 GeV | |
| Ebeam: | 5.754 GeV | |

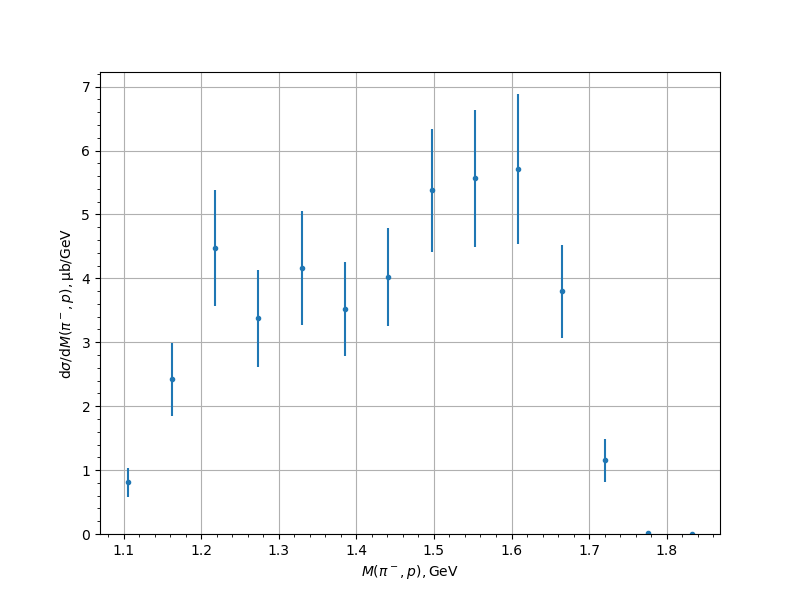

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.105792 | 0.8089 | 0.1321 | 0.1795 | 0.2228 |
| 1.161691 | 2.4201 | 0.2437 | 0.5116 | 0.5667 |
| 1.21759 | 4.469 | 0.338 | 0.8436 | 0.9088 |
| 1.273489 | 3.3759 | 0.2181 | 0.7238 | 0.7559 |
| 1.329388 | 4.1598 | 0.3777 | 0.8048 | 0.889 |
| 1.385287 | 3.5176 | 0.2715 | 0.68 | 0.7322 |
| 1.441186 | 4.0199 | 0.3552 | 0.6742 | 0.762 |
| 1.497086 | 5.3801 | 0.4205 | 0.8646 | 0.9614 |
| 1.552985 | 5.5625 | 0.5777 | 0.9053 | 1.0739 |
| 1.608884 | 5.7124 | 0.7128 | 0.9306 | 1.1722 |
| 1.664783 | 3.8007 | 0.3422 | 0.6427 | 0.7281 |
| 1.720682 | 1.1506 | 0.2103 | 0.2692 | 0.3416 |
| 1.776581 | 0.01 | 0.0007 | 0.0062 | 0.0062 |
| 1.83248 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
