Measurement E213M1186
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 3.5 — 4.2 GeV2 | |
| W: | 2.1 — 2.125 GeV | |
| Ebeam: | 5.754 GeV | |

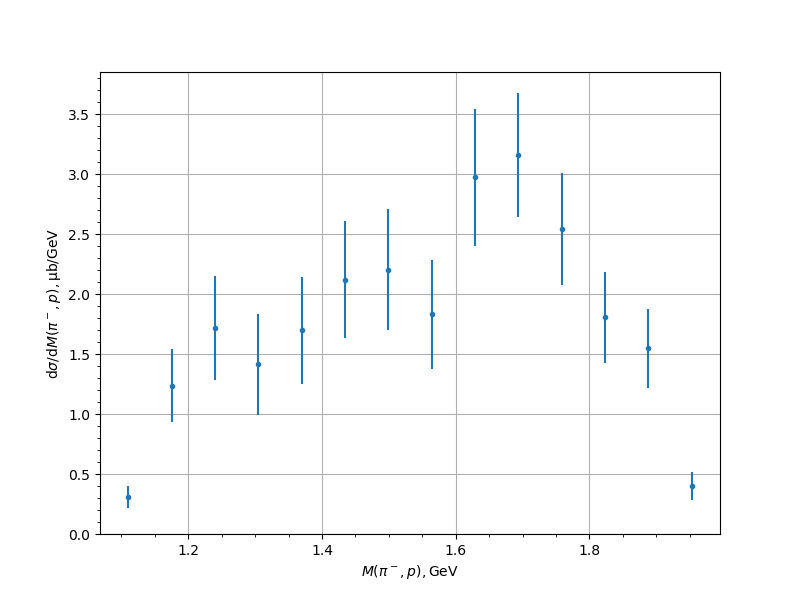

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.110256 | 0.309 | 0.0442 | 0.0789 | 0.0905 |
| 1.175084 | 1.2369 | 0.1215 | 0.2814 | 0.3066 |
| 1.239911 | 1.7201 | 0.1424 | 0.4106 | 0.4346 |
| 1.304739 | 1.4148 | 0.1185 | 0.4016 | 0.4187 |
| 1.369567 | 1.6993 | 0.124 | 0.4278 | 0.4454 |
| 1.434394 | 2.1204 | 0.1715 | 0.4571 | 0.4882 |
| 1.499222 | 2.2032 | 0.2155 | 0.4568 | 0.5051 |
| 1.56405 | 1.831 | 0.2385 | 0.3904 | 0.4575 |
| 1.628878 | 2.9734 | 0.3203 | 0.4696 | 0.5684 |
| 1.693705 | 3.1618 | 0.2291 | 0.4644 | 0.5179 |
| 1.758533 | 2.5444 | 0.2117 | 0.4158 | 0.4666 |
| 1.823361 | 1.8077 | 0.1227 | 0.3592 | 0.3796 |
| 1.888188 | 1.5472 | 0.1973 | 0.2679 | 0.3327 |
| 1.953016 | 0.3999 | 0.0609 | 0.1021 | 0.1189 |
Experiment comment:
