Measurement E213M1215
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 4.2 — 5.0 GeV2 | |
| W: | 1.45 — 1.475 GeV | |
| Ebeam: | 5.754 GeV | |

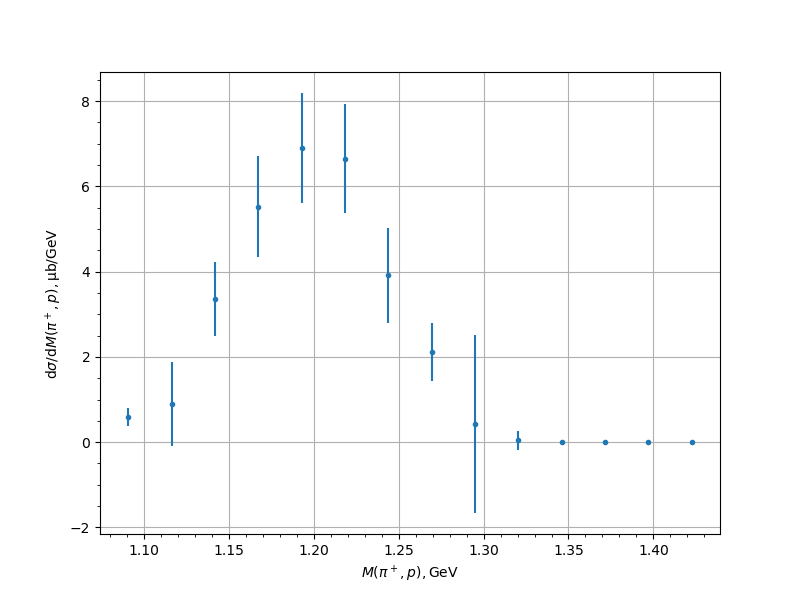

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.090613 | 0.5886 | 0.0132 | 0.0557 | 0.2204 |
| 1.116155 | 0.8922 | 0.1388 | 0.3143 | 0.99 |
| 1.141697 | 3.3639 | 0.4488 | 0.7471 | 0.8715 |
| 1.167239 | 5.5244 | 0.5513 | 1.0408 | 1.1777 |
| 1.192781 | 6.8983 | 0.5467 | 1.1678 | 1.2894 |
| 1.218323 | 6.6493 | 0.646 | 1.1048 | 1.2798 |
| 1.243865 | 3.9084 | 0.4549 | 0.7821 | 1.1152 |
| 1.269407 | 2.1082 | 0.313 | 0.4804 | 0.6812 |
| 1.294949 | 0.4209 | 0.0761 | 0.1548 | 2.0818 |
| 1.320491 | 0.0448 | 0.017 | 0.0282 | 0.2188 |
| 1.346033 | 0.0001 | 0.0077 | 0.0 | 0.0077 |
| 1.371575 | 0.0 | 0.0063 | 0.0 | 0.0 |
| 1.397117 | 0.0 | 0.0 | 0.0 | 0.0 |
| 1.422659 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
