Measurement E213M1233
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 4.2 — 5.0 GeV2 | |
| W: | 1.5 — 1.525 GeV | |
| Ebeam: | 5.754 GeV | |

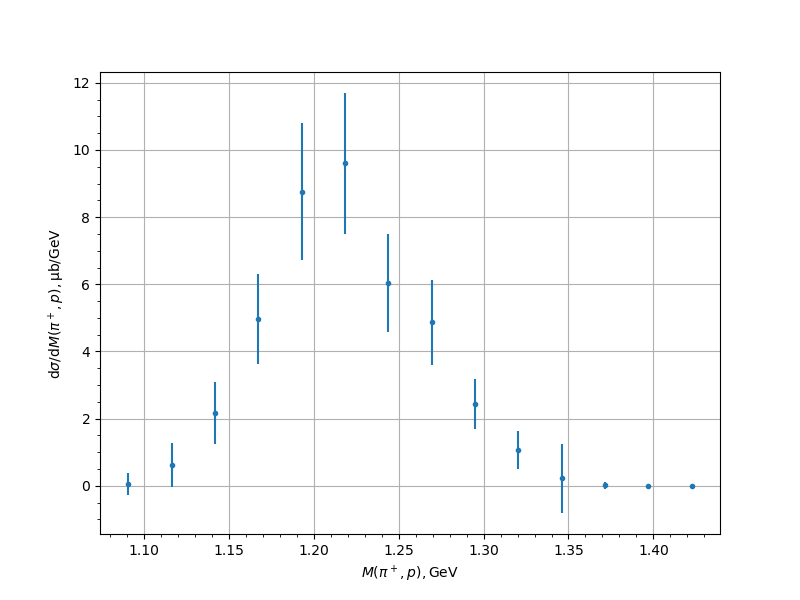

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.090613 | 0.0534 | 0.015 | 0.0359 | 0.317 |
| 1.116155 | 0.6256 | 0.0892 | 0.2669 | 0.6468 |
| 1.141697 | 2.1608 | 0.275 | 0.6894 | 0.9173 |
| 1.167239 | 4.9776 | 0.4948 | 1.24 | 1.3351 |
| 1.192781 | 8.7586 | 0.8675 | 1.8505 | 2.0437 |
| 1.218323 | 9.6017 | 0.7545 | 1.9545 | 2.095 |
| 1.243865 | 6.0508 | 0.5898 | 1.331 | 1.4559 |
| 1.269407 | 4.8745 | 0.5824 | 1.125 | 1.2668 |
| 1.294949 | 2.4323 | 0.3598 | 0.6601 | 0.7518 |
| 1.320491 | 1.0802 | 0.176 | 0.3933 | 0.5653 |
| 1.346033 | 0.2231 | 0.0221 | 0.1421 | 1.0319 |
| 1.371575 | 0.0126 | 0.0121 | 0.0085 | 0.1124 |
| 1.397117 | 0.0 | 0.0053 | 0.0 | 0.0 |
| 1.422659 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
