Measurement E213M1242
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 4.2 — 5.0 GeV2 | |
| W: | 1.525 — 1.55 GeV | |
| Ebeam: | 5.754 GeV | |

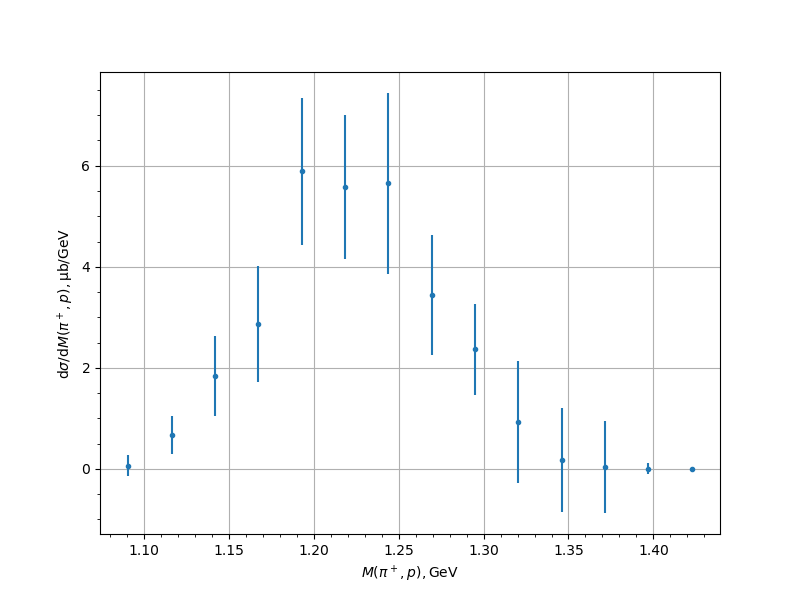

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.090613 | 0.0658 | 0.0105 | 0.0448 | 0.2152 |
| 1.116155 | 0.6678 | 0.1037 | 0.2612 | 0.3711 |
| 1.141697 | 1.8358 | 0.2326 | 0.5659 | 0.7979 |
| 1.167239 | 2.8701 | 0.6466 | 0.8036 | 1.1457 |
| 1.192781 | 5.8868 | 0.5648 | 1.3429 | 1.4569 |
| 1.218323 | 5.5748 | 0.6458 | 1.2714 | 1.426 |
| 1.243865 | 5.6499 | 0.5278 | 1.2624 | 1.7891 |
| 1.269407 | 3.4423 | 0.379 | 0.8394 | 1.1868 |
| 1.294949 | 2.3632 | 0.3219 | 0.6315 | 0.8933 |
| 1.320491 | 0.9291 | 0.1605 | 0.3271 | 1.2057 |
| 1.346033 | 0.1748 | 0.0205 | 0.1129 | 1.0267 |
| 1.371575 | 0.0398 | 0.0126 | 0.0271 | 0.913 |
| 1.397117 | 0.0021 | 0.0078 | 0.0015 | 0.1078 |
| 1.422659 | 0.0 | 0.0001 | 0.0 | 0.0 |
Experiment comment:
