Measurement E213M1276
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 4.2 — 5.0 GeV2 | |
| W: | 1.625 — 1.65 GeV | |
| Ebeam: | 5.754 GeV | |

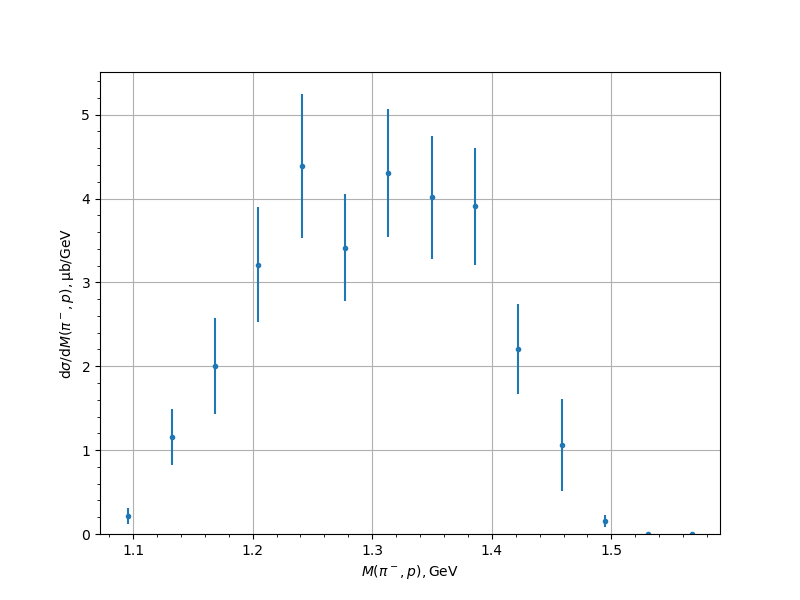

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.09597 | 0.2197 | 0.0479 | 0.068 | 0.0961 |
| 1.132227 | 1.1565 | 0.1833 | 0.2366 | 0.3393 |
| 1.168483 | 2.0053 | 0.2846 | 0.4026 | 0.5708 |
| 1.204739 | 3.2121 | 0.3472 | 0.5881 | 0.6829 |
| 1.240995 | 4.3863 | 0.469 | 0.7211 | 0.8602 |
| 1.277252 | 3.4154 | 0.2717 | 0.5812 | 0.6416 |
| 1.313508 | 4.305 | 0.3777 | 0.6583 | 0.7589 |
| 1.349764 | 4.0125 | 0.3681 | 0.6304 | 0.73 |
| 1.38602 | 3.9093 | 0.3759 | 0.587 | 0.697 |
| 1.422277 | 2.2068 | 0.2392 | 0.3719 | 0.5383 |
| 1.458533 | 1.0616 | 0.2122 | 0.1972 | 0.5489 |
| 1.494789 | 0.154 | 0.0438 | 0.0427 | 0.0687 |
| 1.531046 | 0.0 | 0.0 | 0.0 | 0.0 |
| 1.567302 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
