Measurement E213M1294
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 4.2 — 5.0 GeV2 | |
| W: | 1.675 — 1.7 GeV | |
| Ebeam: | 5.754 GeV | |

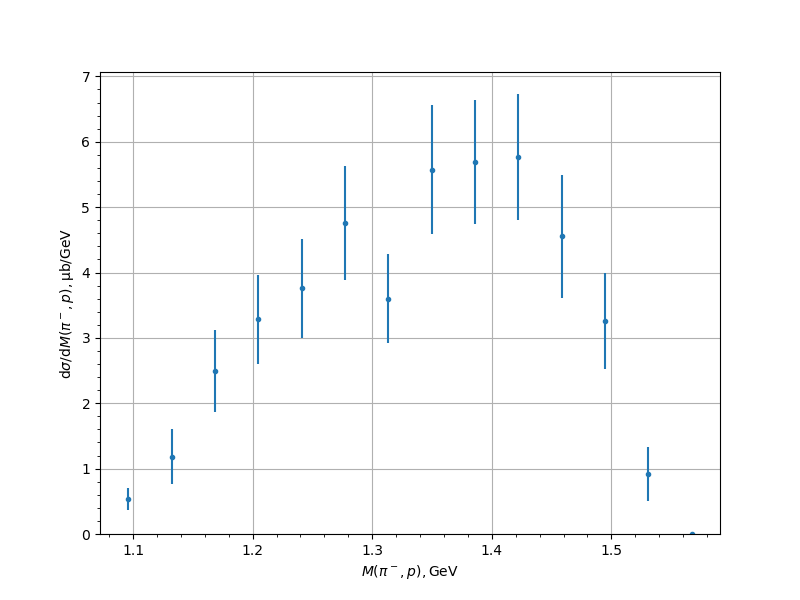

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.09597 | 0.5378 | 0.1141 | 0.107 | 0.1638 |
| 1.132227 | 1.1847 | 0.343 | 0.2432 | 0.4205 |
| 1.168483 | 2.492 | 0.2769 | 0.4462 | 0.6316 |
| 1.204739 | 3.2857 | 0.3189 | 0.5987 | 0.6783 |
| 1.240995 | 3.7599 | 0.3413 | 0.6757 | 0.757 |
| 1.277252 | 4.7589 | 0.4273 | 0.7535 | 0.8662 |
| 1.313508 | 3.6026 | 0.3016 | 0.6081 | 0.6788 |
| 1.349764 | 5.5741 | 0.5708 | 0.8104 | 0.9913 |
| 1.38602 | 5.6942 | 0.4445 | 0.8356 | 0.9465 |
| 1.422277 | 5.7653 | 0.5015 | 0.8254 | 0.9659 |
| 1.458533 | 4.5523 | 0.4566 | 0.6652 | 0.9417 |
| 1.494789 | 3.2581 | 0.5584 | 0.4798 | 0.7362 |
| 1.531046 | 0.9162 | 0.1785 | 0.1664 | 0.4134 |
| 1.567302 | 0.0066 | 0.002 | 0.0039 | 0.0044 |
Experiment comment:
