Measurement E213M1305
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 4.2 — 5.0 GeV2 | |
| W: | 1.7 — 1.725 GeV | |
| Ebeam: | 5.754 GeV | |

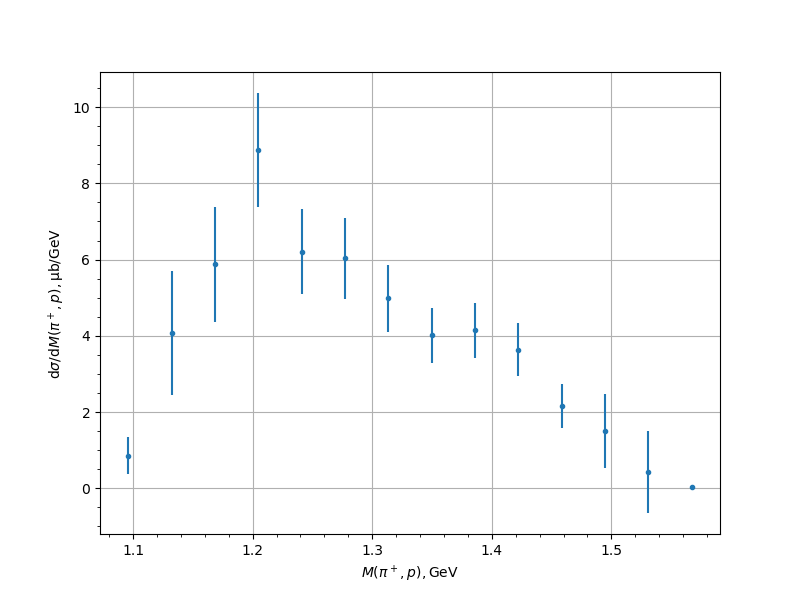

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.09597 | 0.8487 | 0.1005 | 0.2755 | 0.4861 |
| 1.132227 | 4.0825 | 0.425 | 0.7865 | 1.6277 |
| 1.168483 | 5.8725 | 0.4846 | 1.0392 | 1.5022 |
| 1.204739 | 8.8739 | 0.7254 | 1.3092 | 1.4967 |
| 1.240995 | 6.2096 | 0.5495 | 0.9627 | 1.1085 |
| 1.277252 | 6.03 | 0.6054 | 0.8749 | 1.0639 |
| 1.313508 | 4.9815 | 0.4668 | 0.7429 | 0.8773 |
| 1.349764 | 4.0086 | 0.3798 | 0.6126 | 0.7208 |
| 1.38602 | 4.1419 | 0.3855 | 0.6062 | 0.7184 |
| 1.422277 | 3.64 | 0.4279 | 0.5434 | 0.6917 |
| 1.458533 | 2.1601 | 0.2963 | 0.3953 | 0.5669 |
| 1.494789 | 1.5128 | 0.2182 | 0.3124 | 0.9698 |
| 1.531046 | 0.4269 | 0.0627 | 0.1628 | 1.0751 |
| 1.567302 | 0.0399 | 0.0056 | 0.0239 | 0.0245 |
Experiment comment:
