Measurement E213M1314
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 4.2 — 5.0 GeV2 | |
| W: | 1.725 — 1.75 GeV | |
| Ebeam: | 5.754 GeV | |

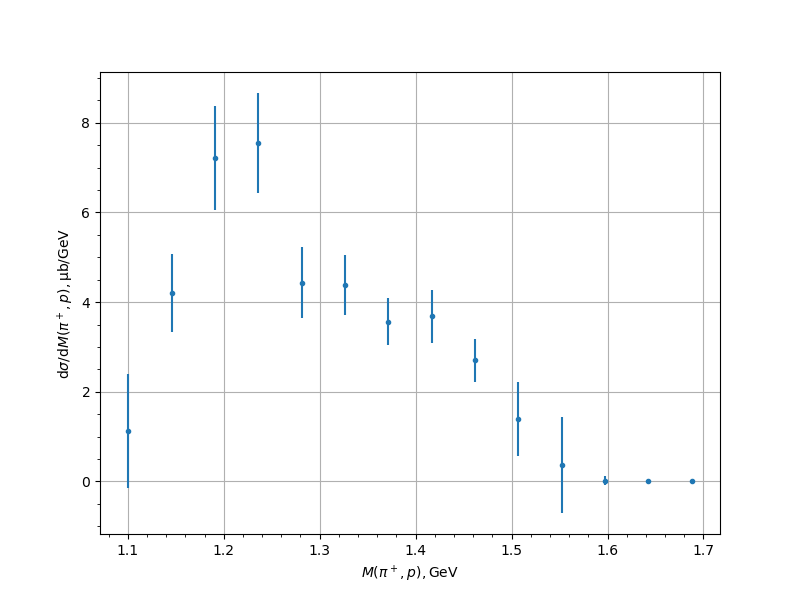

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.100435 | 1.1298 | 0.1583 | 0.259 | 1.2689 |
| 1.145619 | 4.2029 | 0.536 | 0.6964 | 0.8788 |
| 1.190804 | 7.2213 | 0.5882 | 1.0029 | 1.1627 |
| 1.235989 | 7.5451 | 0.6205 | 0.9297 | 1.1178 |
| 1.281174 | 4.4333 | 0.5547 | 0.5683 | 0.7942 |
| 1.326359 | 4.3758 | 0.4099 | 0.5234 | 0.6648 |
| 1.371544 | 3.5659 | 0.309 | 0.4272 | 0.5272 |
| 1.416728 | 3.6802 | 0.403 | 0.4285 | 0.5882 |
| 1.461913 | 2.6973 | 0.3505 | 0.3301 | 0.4815 |
| 1.507098 | 1.3977 | 0.2021 | 0.2096 | 0.8291 |
| 1.552283 | 0.3715 | 0.0708 | 0.0991 | 1.0754 |
| 1.597468 | 0.0158 | 0.0049 | 0.0093 | 0.101 |
| 1.642653 | 0.0 | 0.0014 | 0.0 | 0.0 |
| 1.687837 | 0.0 | 0.0 | 0.0 | 0.0 |
