Measurement E213M1323
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 4.2 — 5.0 GeV2 | |
| W: | 1.75 — 1.775 GeV | |
| Ebeam: | 5.754 GeV | |

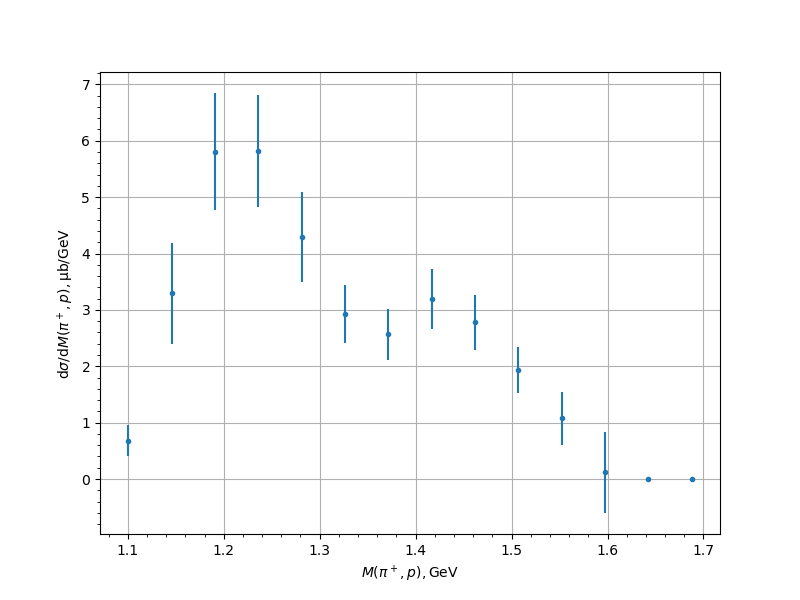

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.100435 | 0.6778 | 0.0995 | 0.1868 | 0.2733 |
| 1.145619 | 3.2908 | 0.3299 | 0.6288 | 0.8972 |
| 1.190804 | 5.808 | 0.4401 | 0.941 | 1.0389 |
| 1.235989 | 5.8141 | 0.4208 | 0.9026 | 0.9959 |
| 1.281174 | 4.2952 | 0.4621 | 0.646 | 0.7943 |
| 1.326359 | 2.9342 | 0.2427 | 0.4526 | 0.5135 |
| 1.371544 | 2.5694 | 0.2342 | 0.3859 | 0.4514 |
| 1.416728 | 3.1916 | 0.3112 | 0.4355 | 0.5352 |
| 1.461913 | 2.7814 | 0.3031 | 0.3827 | 0.4882 |
| 1.507098 | 1.9343 | 0.2204 | 0.2929 | 0.4125 |
| 1.552283 | 1.0788 | 0.1791 | 0.2057 | 0.4669 |
| 1.597468 | 0.1168 | 0.0171 | 0.059 | 0.7195 |
| 1.642653 | 0.0015 | 0.0023 | 0.0009 | 0.0024 |
| 1.687837 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
