Measurement E213M1330
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 4.2 — 5.0 GeV2 | |
| W: | 1.775 — 1.8 GeV | |
| Ebeam: | 5.754 GeV | |

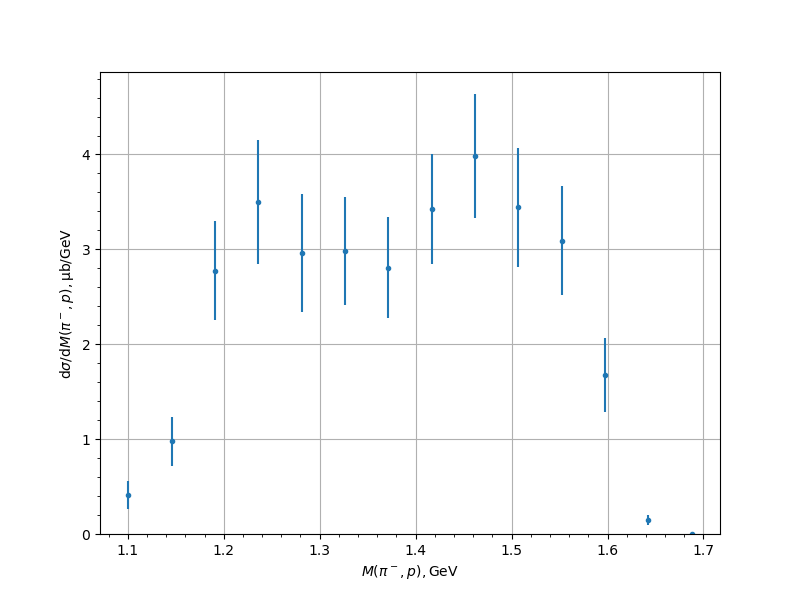

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.100435 | 0.4093 | 0.116 | 0.0916 | 0.1478 |
| 1.145619 | 0.9781 | 0.1454 | 0.2112 | 0.2564 |
| 1.190804 | 2.777 | 0.252 | 0.4525 | 0.518 |
| 1.235989 | 3.4973 | 0.3418 | 0.5608 | 0.6568 |
| 1.281174 | 2.9628 | 0.3315 | 0.5238 | 0.6199 |
| 1.326359 | 2.9818 | 0.2625 | 0.5064 | 0.5703 |
| 1.371544 | 2.8077 | 0.2564 | 0.4641 | 0.5302 |
| 1.416728 | 3.4283 | 0.2778 | 0.5068 | 0.5779 |
| 1.461913 | 3.9856 | 0.3241 | 0.5655 | 0.6518 |
| 1.507098 | 3.4429 | 0.3356 | 0.5324 | 0.6293 |
| 1.552283 | 3.0915 | 0.348 | 0.4585 | 0.5756 |
| 1.597468 | 1.6737 | 0.2794 | 0.2679 | 0.3871 |
| 1.642653 | 0.1471 | 0.0294 | 0.0413 | 0.0507 |
| 1.687837 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
