Measurement E213M1413
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 4.2 — 5.0 GeV2 | |
| W: | 2.0 — 2.025 GeV | |
| Ebeam: | 5.754 GeV | |

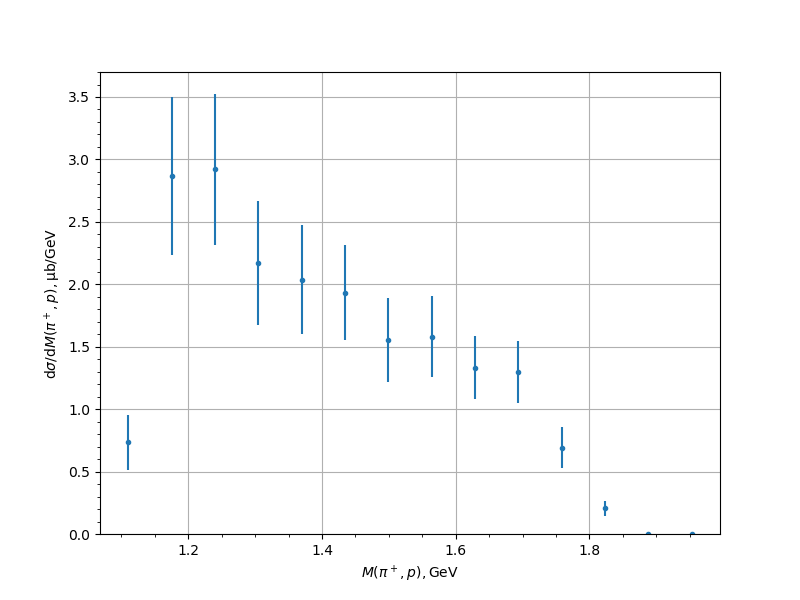

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.110256 | 0.7352 | 0.0829 | 0.2025 | 0.2188 |
| 1.175084 | 2.8705 | 0.2514 | 0.5804 | 0.6325 |
| 1.239911 | 2.9211 | 0.202 | 0.568 | 0.6029 |
| 1.304739 | 2.1722 | 0.2428 | 0.431 | 0.4947 |
| 1.369567 | 2.0382 | 0.1943 | 0.3928 | 0.4382 |
| 1.434394 | 1.9335 | 0.1534 | 0.3459 | 0.3784 |
| 1.499222 | 1.5555 | 0.1672 | 0.2921 | 0.3366 |
| 1.56405 | 1.5798 | 0.1629 | 0.2816 | 0.3253 |
| 1.628878 | 1.3326 | 0.1177 | 0.225 | 0.2539 |
| 1.693705 | 1.2986 | 0.1498 | 0.1987 | 0.2488 |
| 1.758533 | 0.6914 | 0.1001 | 0.1288 | 0.1631 |
| 1.823361 | 0.2045 | 0.0348 | 0.0489 | 0.06 |
| 1.888188 | 0.0031 | 0.0007 | 0.0018 | 0.0019 |
| 1.953016 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
