Measurement E213M1422
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 4.2 — 5.0 GeV2 | |
| W: | 2.025 — 2.05 GeV | |
| Ebeam: | 5.754 GeV | |

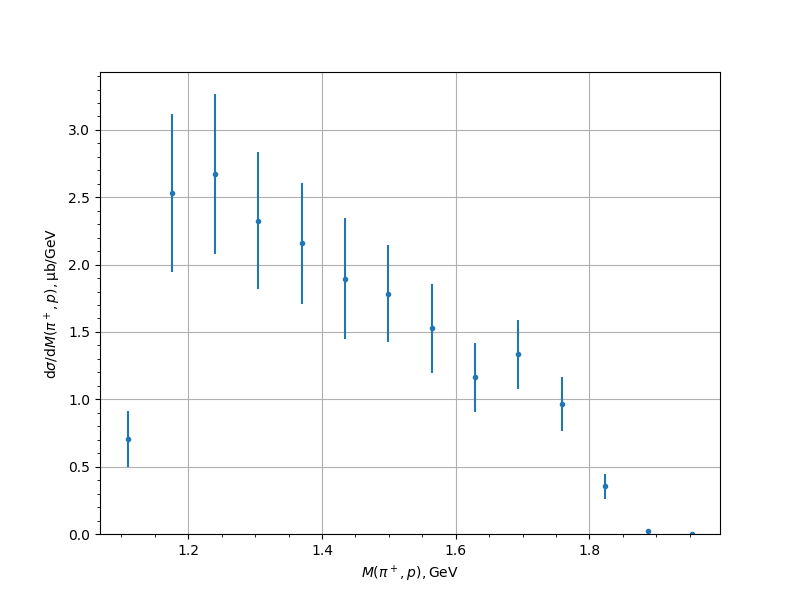

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.110256 | 0.7083 | 0.067 | 0.1968 | 0.2079 |
| 1.175084 | 2.5329 | 0.1716 | 0.5587 | 0.5844 |
| 1.239911 | 2.6745 | 0.1978 | 0.5581 | 0.5921 |
| 1.304739 | 2.3261 | 0.2228 | 0.4591 | 0.5103 |
| 1.369567 | 2.1584 | 0.168 | 0.4171 | 0.4496 |
| 1.434394 | 1.895 | 0.2667 | 0.3607 | 0.4486 |
| 1.499222 | 1.7843 | 0.1493 | 0.3281 | 0.3604 |
| 1.56405 | 1.527 | 0.1635 | 0.2876 | 0.3308 |
| 1.628878 | 1.1624 | 0.1089 | 0.2298 | 0.2543 |
| 1.693705 | 1.3329 | 0.1405 | 0.2108 | 0.2533 |
| 1.758533 | 0.9633 | 0.1294 | 0.1534 | 0.2007 |
| 1.823361 | 0.3534 | 0.064 | 0.0699 | 0.0947 |
| 1.888188 | 0.0241 | 0.0034 | 0.0127 | 0.0132 |
| 1.953016 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
