Measurement E213M1430
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,π−) | |
| Q2: | 4.2 — 5.0 GeV2 | |
| W: | 2.05 — 2.075 GeV | |
| Ebeam: | 5.754 GeV | |

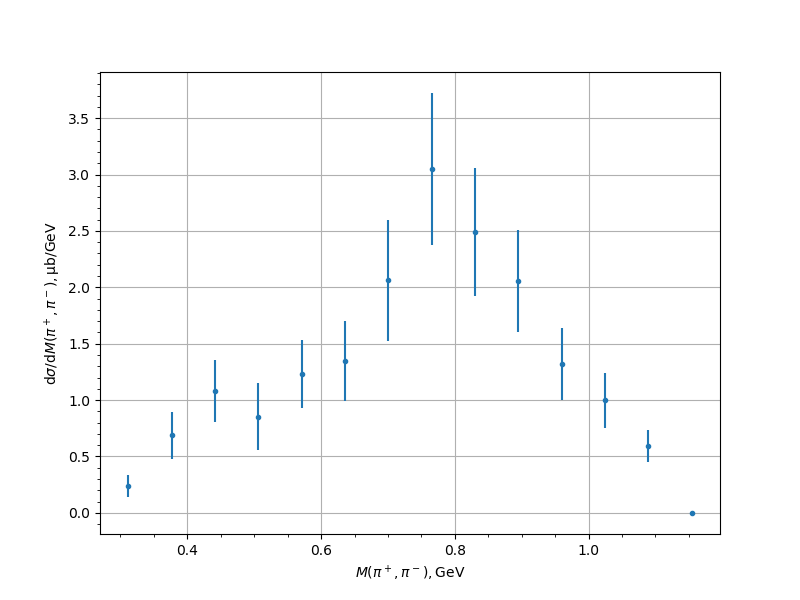

| M(π+,π−), [GeV] | dσ/dM(π+,π−), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 0.311554 | 0.2374 | 0.0415 | 0.0918 | 0.1007 |
| 0.376382 | 0.6888 | 0.089 | 0.1892 | 0.209 |
| 0.44121 | 1.0834 | 0.1174 | 0.25 | 0.2762 |
| 0.506037 | 0.8541 | 0.1827 | 0.2295 | 0.2934 |
| 0.570865 | 1.2305 | 0.12 | 0.28 | 0.3046 |
| 0.635693 | 1.3461 | 0.1088 | 0.3344 | 0.3517 |
| 0.70052 | 2.0646 | 0.1973 | 0.4986 | 0.5362 |
| 0.765348 | 3.0504 | 0.1878 | 0.6458 | 0.6725 |
| 0.830176 | 2.4916 | 0.2038 | 0.5318 | 0.5695 |
| 0.895003 | 2.0543 | 0.1497 | 0.4238 | 0.4495 |
| 0.959831 | 1.3224 | 0.1071 | 0.2999 | 0.3185 |
| 1.024659 | 0.9978 | 0.1138 | 0.2188 | 0.2467 |
| 1.089486 | 0.5927 | 0.0932 | 0.105 | 0.1404 |
| 1.154314 | 0.0002 | 0.0012 | 0.0001 | 0.0012 |
Experiment comment:
