Measurement E213M1440
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 4.2 — 5.0 GeV2 | |
| W: | 2.075 — 2.1 GeV | |
| Ebeam: | 5.754 GeV | |

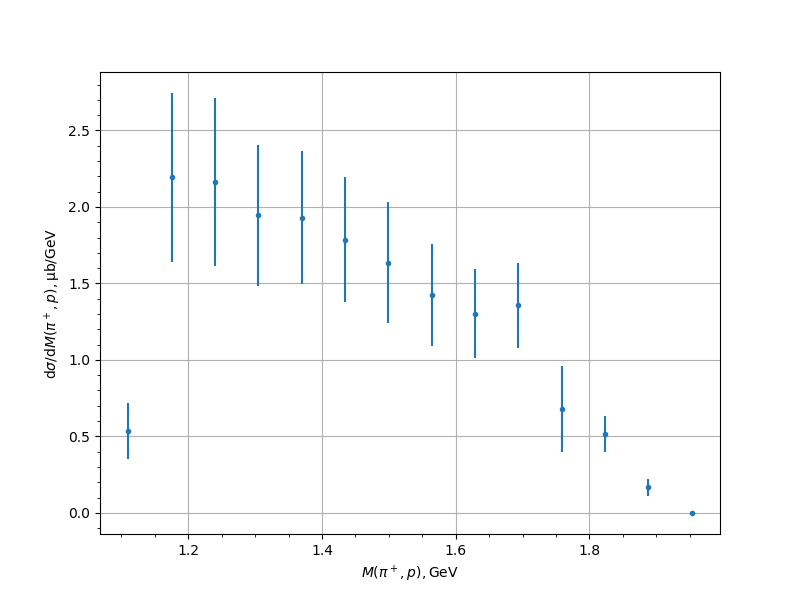

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.110256 | 0.5325 | 0.0508 | 0.1754 | 0.1826 |
| 1.175084 | 2.1931 | 0.1579 | 0.5289 | 0.552 |
| 1.239911 | 2.1622 | 0.2027 | 0.5083 | 0.5473 |
| 1.304739 | 1.9451 | 0.1883 | 0.4209 | 0.4611 |
| 1.369567 | 1.9291 | 0.172 | 0.3996 | 0.4351 |
| 1.434394 | 1.787 | 0.1926 | 0.3612 | 0.4093 |
| 1.499222 | 1.6353 | 0.2219 | 0.3261 | 0.3945 |
| 1.56405 | 1.423 | 0.1616 | 0.2934 | 0.3349 |
| 1.628878 | 1.3029 | 0.1473 | 0.2535 | 0.2932 |
| 1.693705 | 1.357 | 0.1522 | 0.2313 | 0.2769 |
| 1.758533 | 0.6767 | 0.2404 | 0.1449 | 0.2807 |
| 1.823361 | 0.5139 | 0.0776 | 0.0871 | 0.1167 |
| 1.888188 | 0.1667 | 0.0329 | 0.0432 | 0.0543 |
| 1.953016 | 0.0001 | 0.0014 | 0.0 | 0.0014 |
Experiment comment:
