Measurement E213M160
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 2.0 — 2.4 GeV2 | |
| W: | 1.425 — 1.45 GeV | |
| Ebeam: | 5.754 GeV | |

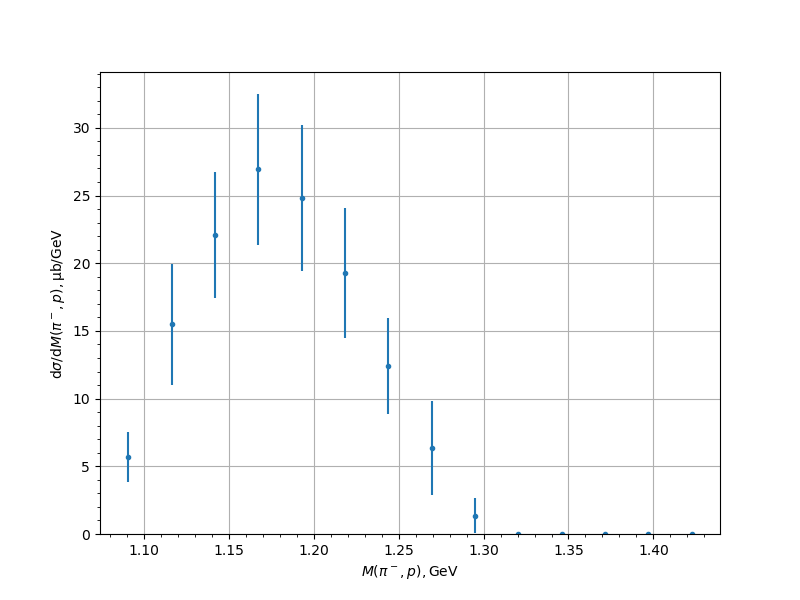

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.090613 | 5.6979 | 0.5331 | 1.2858 | 1.8509 |
| 1.116155 | 15.4881 | 0.9628 | 3.1722 | 4.4866 |
| 1.141697 | 22.0953 | 1.1713 | 4.4818 | 4.6323 |
| 1.167239 | 26.9263 | 1.3354 | 5.4088 | 5.5712 |
| 1.192781 | 24.8117 | 1.073 | 5.2977 | 5.4053 |
| 1.218323 | 19.2788 | 1.0013 | 4.6796 | 4.7855 |
| 1.243865 | 12.3998 | 0.7296 | 3.4402 | 3.5167 |
| 1.269407 | 6.3356 | 0.5206 | 2.4556 | 3.4692 |
| 1.294949 | 1.3464 | 0.0881 | 0.7059 | 1.2971 |
| 1.320491 | 0.0015 | 0.0001 | 0.001 | 0.001 |
| 1.346033 | 0.0 | 0.0 | 0.0 | 0.0 |
| 1.371575 | 0.0 | 0.0 | 0.0 | 0.0 |
| 1.397117 | 0.0 | 0.0 | 0.0 | 0.0 |
| 1.422659 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
