Measurement E213M178
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 2.0 — 2.4 GeV2 | |
| W: | 1.475 — 1.5 GeV | |
| Ebeam: | 5.754 GeV | |

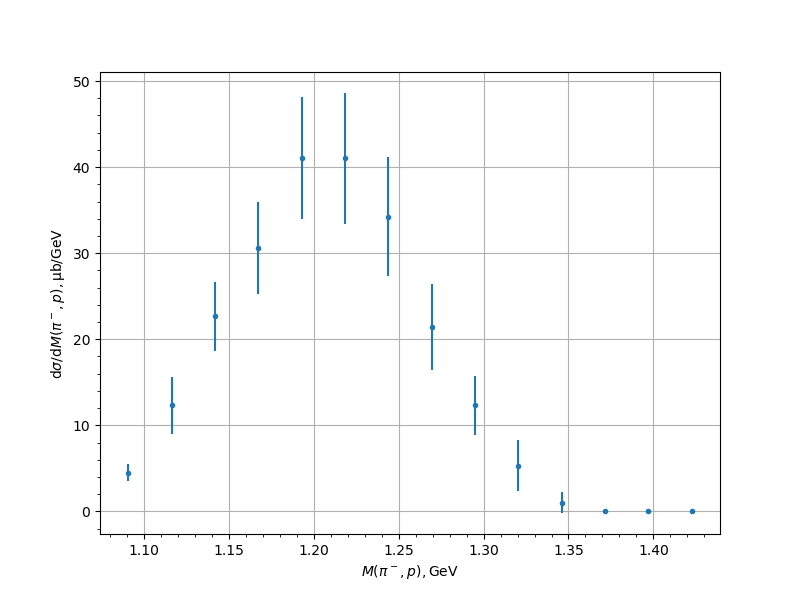

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.090613 | 4.5059 | 0.3975 | 0.9463 | 1.0264 |
| 1.116155 | 12.3494 | 1.059 | 2.3291 | 3.315 |
| 1.141697 | 22.6519 | 1.1866 | 3.8742 | 4.0519 |
| 1.167239 | 30.5829 | 1.4029 | 5.1927 | 5.3789 |
| 1.192781 | 41.0509 | 1.7968 | 6.8274 | 7.0598 |
| 1.218323 | 41.0025 | 1.5042 | 7.4572 | 7.6074 |
| 1.243865 | 34.2194 | 2.7691 | 6.3427 | 6.9208 |
| 1.269407 | 21.416 | 0.9732 | 4.8998 | 4.9955 |
| 1.294949 | 12.3282 | 0.7987 | 3.3253 | 3.4199 |
| 1.320491 | 5.31 | 0.4207 | 2.084 | 2.9448 |
| 1.346033 | 1.0241 | 0.0755 | 0.5468 | 1.2065 |
| 1.371575 | 0.0007 | 0.0001 | 0.0004 | 0.0004 |
| 1.397117 | 0.0 | 0.0 | 0.0 | 0.0 |
| 1.422659 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
