Measurement E213M184
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |

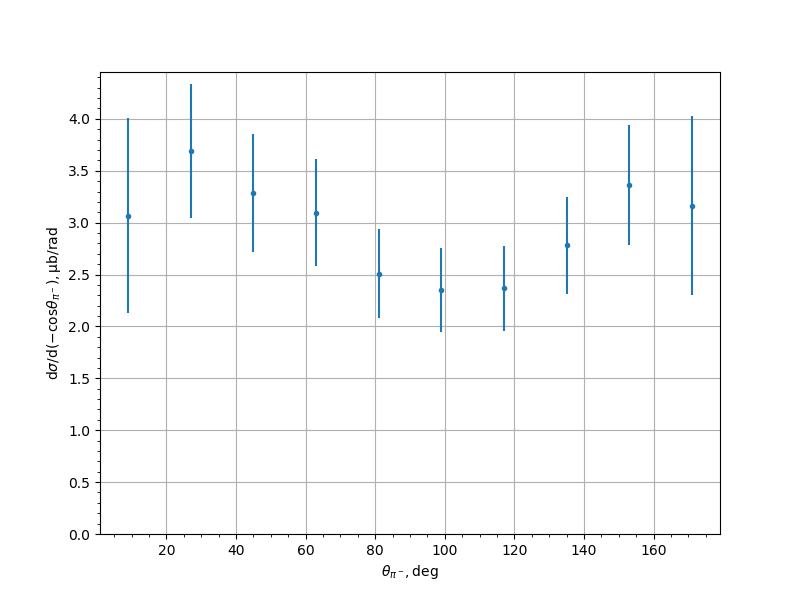

| Quantity: | dσ/d(−cos(θ(π−))) | |
| Q2: | 2.0 — 2.4 GeV2 | |
| W: | 1.475 — 1.5 GeV | |
| Ebeam: | 5.754 GeV | |
| θ(π−), [deg] | dσ/d(−cos(θ(π−))), [μb/rad] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 9.0 | 3.0668 | 0.2337 | 0.9083 | 0.9379 |
| 27.0 | 3.6897 | 0.2215 | 0.603 | 0.6424 |
| 45.0 | 3.2844 | 0.2015 | 0.53 | 0.567 |
| 63.0 | 3.0964 | 0.1597 | 0.4909 | 0.5162 |
| 81.0 | 2.5092 | 0.1231 | 0.411 | 0.429 |
| 99.0 | 2.3521 | 0.1311 | 0.3866 | 0.4082 |
| 117.0 | 2.3657 | 0.1018 | 0.3975 | 0.4103 |
| 135.0 | 2.7837 | 0.1228 | 0.4505 | 0.467 |
| 153.0 | 3.3644 | 0.1718 | 0.5492 | 0.5754 |
| 171.0 | 3.1621 | 0.2308 | 0.8311 | 0.8626 |
Experiment comment:
